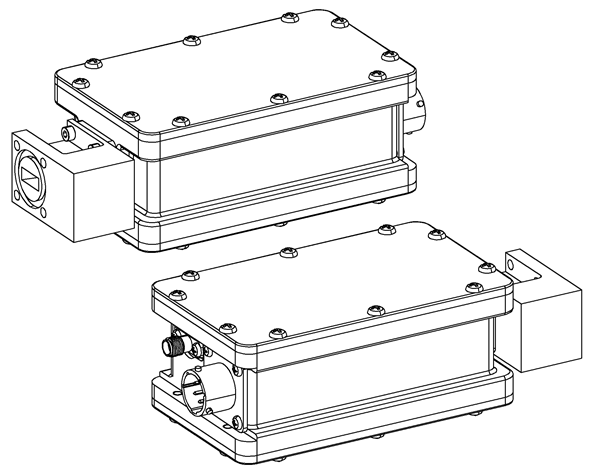

LNA-100133

Single-Band Ka-Band LNA with Isolator

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 22.5 - 23.5 GHz
noise figure max 1.8 dB
Product Revision A
RF SPECIFICATIONS
conversion gain max 60 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness 4 dB p-p max.
gain ripple (at per 36MHz) 1 dB p-p max.
input VSWR 1.5 : 1 max. (with waveguide isolator)
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
input power MS3112E10-6P
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
MS connector pin map Supply Voltage: Pin A
Ground: Pin B, C
NC: Pin D, E, F
RF input connector WR-42 Waveguide Grooved
RF output connector SMA Connector
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS

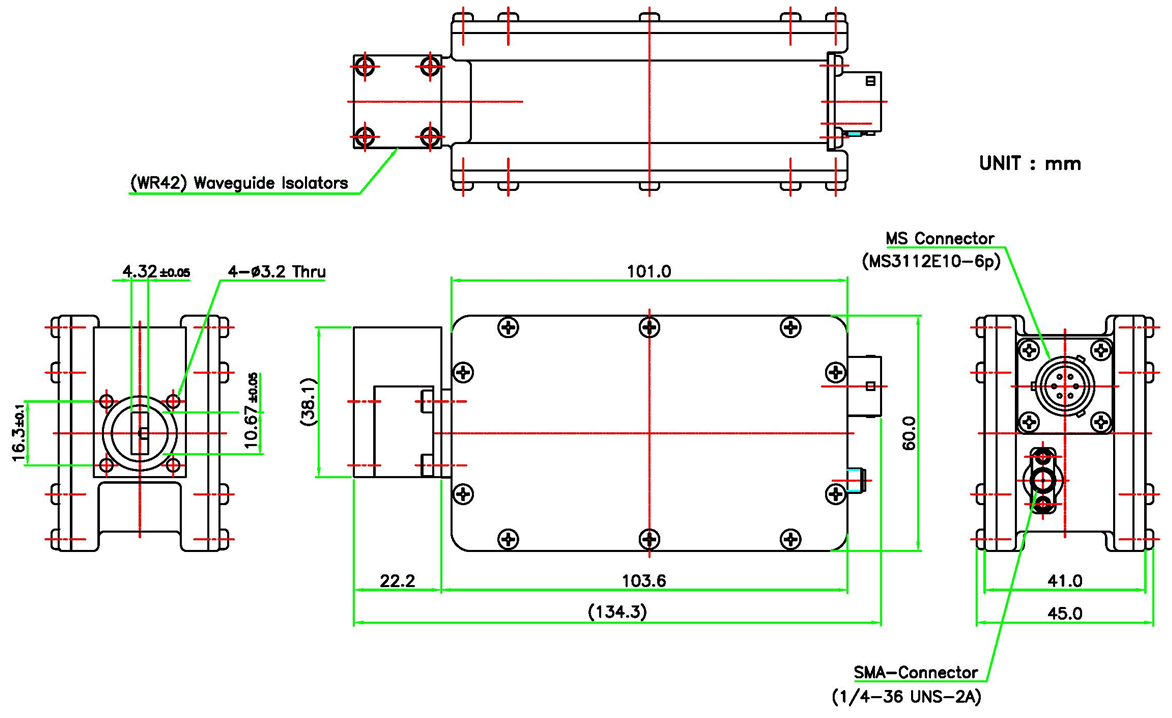

product dimensions (LxWxH) 103.6 mm x 60.0 mm x 45.0 mm
product weight 0.45 kg
