LNA-100147
Single-Band X-Band LNA
LNA Series
Regular price $2,650.00 Sale pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | X-Band |
| input frequency band 1 | 8.0 - 8.4 GHz |
| noise figure max | 1.0 dB |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain min | 40 dB |
| Gain Flatness | 3 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| input VSWR | 1.4 : 1 max. |
| OIP3 | + 28 dBm min. |
| output P1dB | + 20 dBm min. |
| output VSWR | 1.4 : 1 max. |
| spurious in band | -55 dBc max. at output -10 dBm (except harmonic) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 200 mA max. |
| input power | MS3112E10-6P |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | CPR 112G (with groove) |
| RF output connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP 67 |
| temperature operational | -40°C to +60°C |

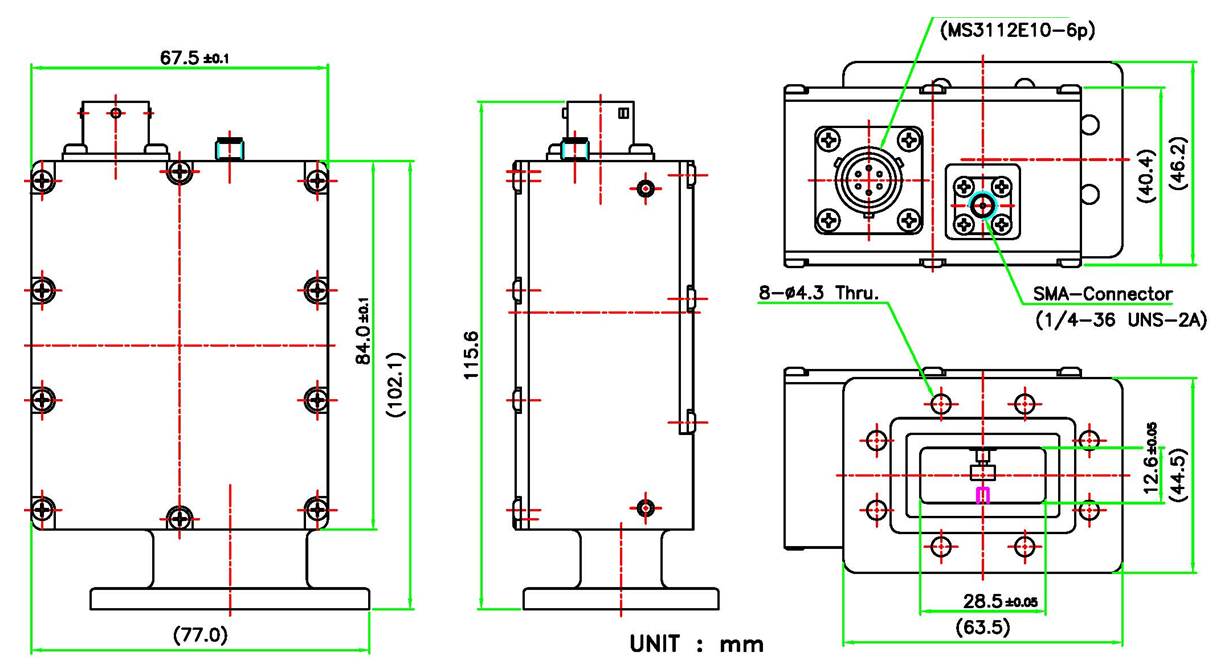

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 46.2 mm |
| product length | 115.6 mm |
| product weight | 0.55 kg |
| product width | 77.0 mm |
