LNA-100151

Single-Band X-Band LNA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
input frequency band 1 8.4 - 8.5 GHz
noise figure max 0.7 dB
Product Revision A
RF SPECIFICATIONS
conversion gain min 60 dB
Gain Flatness (over full band) ≤ 1 dB p-p
gain variation over temperature ±1.5 dB max.
input VSWR 1.6 : 1 max.
OIP3 +20 dBm min.
output P1dB +10 dBm min.
output spurious in band -60 dBc max. at output -10 dBm
output VSWR 1.3 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 200 mA max.
input power MS3112E10-6P
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector CPR-112G
RF output connector N: 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

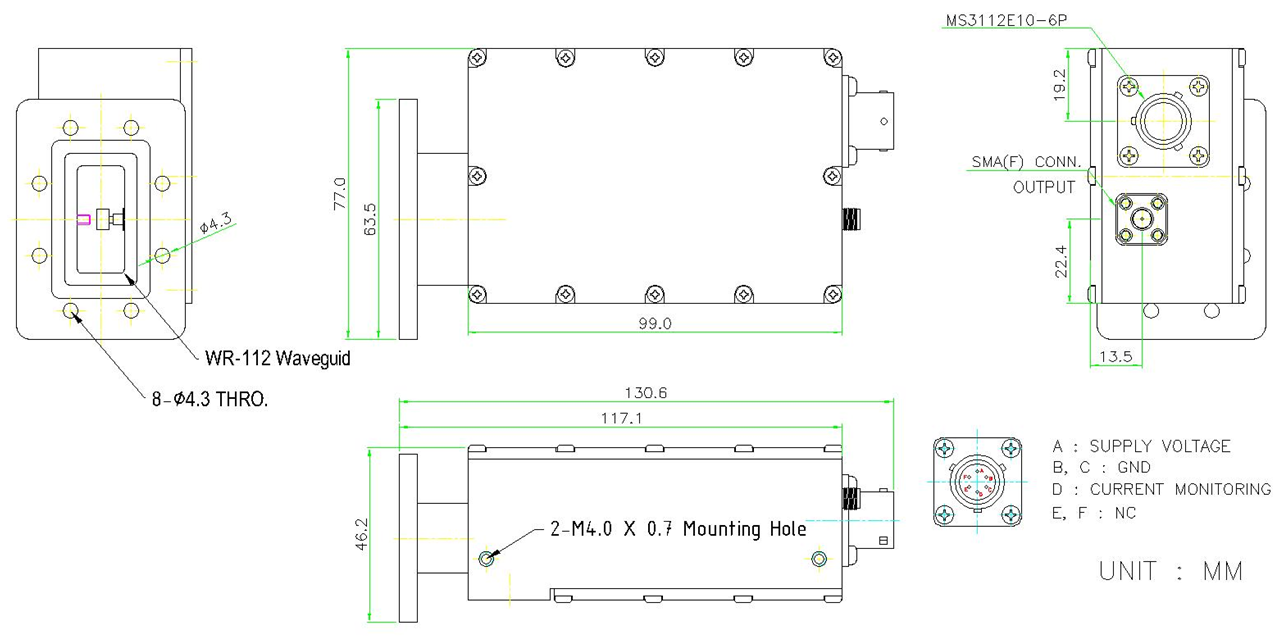

PHYSICAL SPECIFICATIONS
product height 0.0462 m
product length 0.1306 m
product weight 0.55 kg
product width 0.077 m
