LNB-100016

C-Band 5G LNB and Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 4.01 - 4.20 GHz
LO frequency 1 5.15 GHz
number of onboard LOs Single-Band
output frequency band 1 950 - 1140 MHz
rejection range < 3.91 GHz and > 4.8 GHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.2 : 1 max.
interferenece rejection signal -25 dBm max. with no degradation
noise temperature 60K max. at room temp
output P1dB + 9 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -80 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 400 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

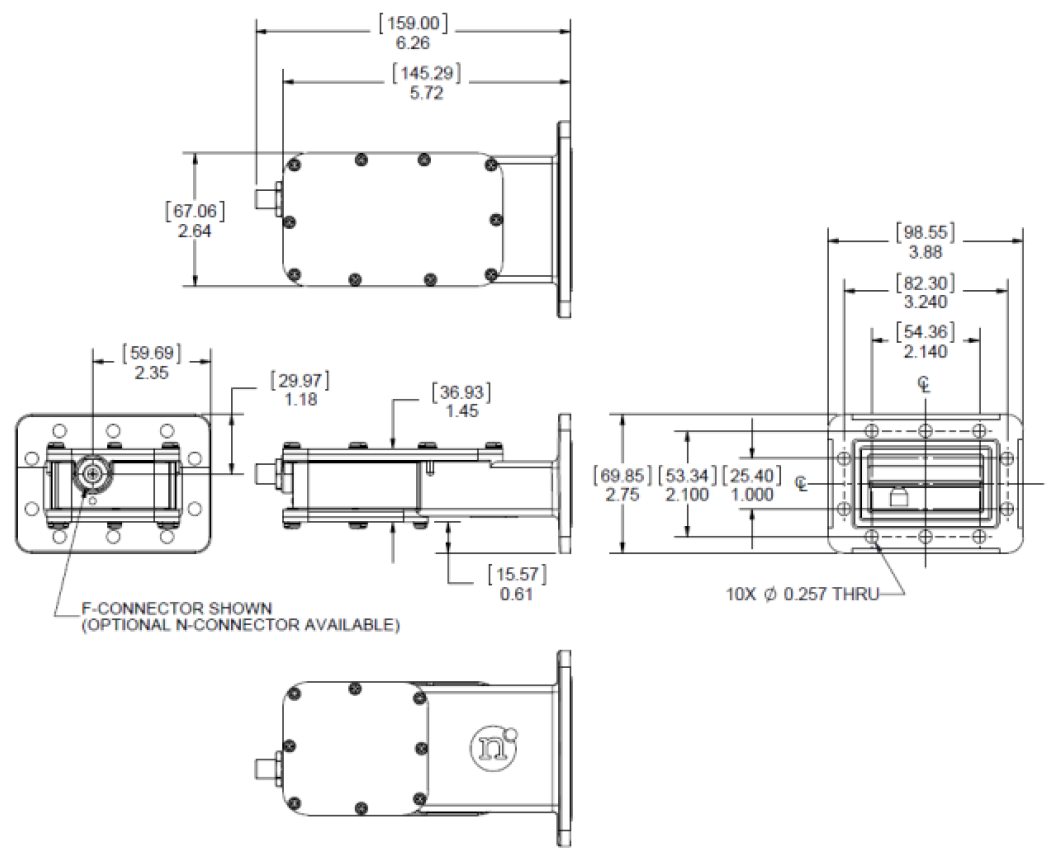

PHYSICAL SPECIFICATIONS
product height 70 mm
product length 159 mm
product weight 0.5 kg
product width 98.5 mm
