LNB-100044

Ka-Band Single Band LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), -5 to +5 dBm
input frequency band 1 25.5 - 27.0 GHz
LO frequency 1 23.85 GHz
LO type PLL
noise figure max 5.5 dB
number of onboard LOs Single-Band
output frequency band 1 1650 - 3150 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 60 dB
conversion gain min 50 dB
conversion gain typ 55 dB
gain flatness (27MHz) 1 dB p-p max.
Gain Flatness (Over Full Band) 6 dB p-p max.
gain variation over temperature 7 dB p-p max.
image rejection 40 dBc min.
input VSWR 3.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -78 dBc/Hz
phase noise 100kHz offset max -90 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 500 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
ext ref port Separate SMA-Connector (50 Ohm)
IF connector K-Connector (50 Ohm)
RF input connector WR-34 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +60°C

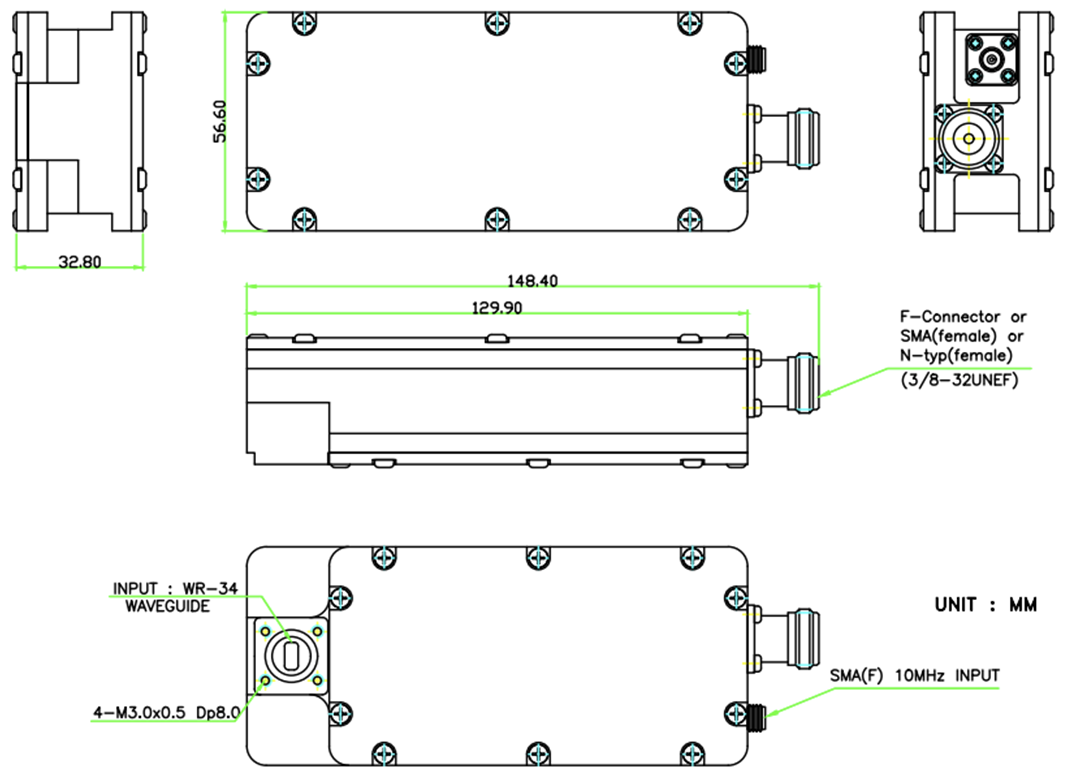

PHYSICAL SPECIFICATIONS
product height 32.8 mm
product length 129.9 mm
product weight TBD
product width 56.6 mm
