LNB-100046

Ku-Band Single Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 11.65 - 12.75 GHz
LO frequency 1 10.7 GHz
LO type PLL
noise figure max 1.0 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 2050 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 4 dB p-p max.
5 dBp-p max. at -40 to +60 ℃
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

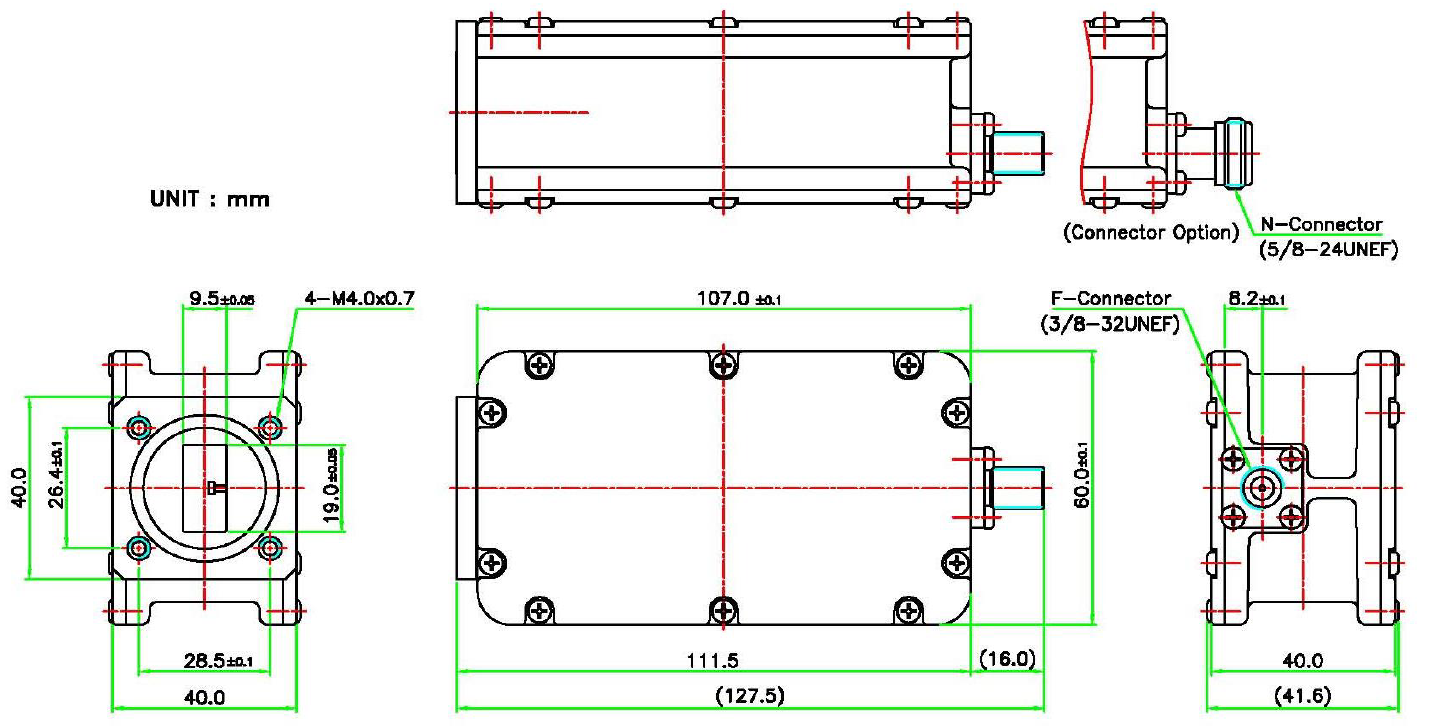

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 380g
product width 60 mm
