LNB-100049

C-Band Single-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 4.0 - 4.8 GHz
LO frequency 1 5.75 GHz
LO type PLL
number of onboard LOs Single-Band
output frequency band 1 950 - 1750 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 60 dB
conversion gain typ 65 dB
Gain Flatness (over full band) 5 dB p-p max.
6 dBp-p max. at -40 to +60 ℃
Gain Ripple at Per 27MHz 1 dB p-p max. at -40 to +60℃
image rejection 45 dBc min.
input VSWR 2.5 : 1 max.
noise temperature 35K max.
output P1dB + 3 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -65 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-229 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

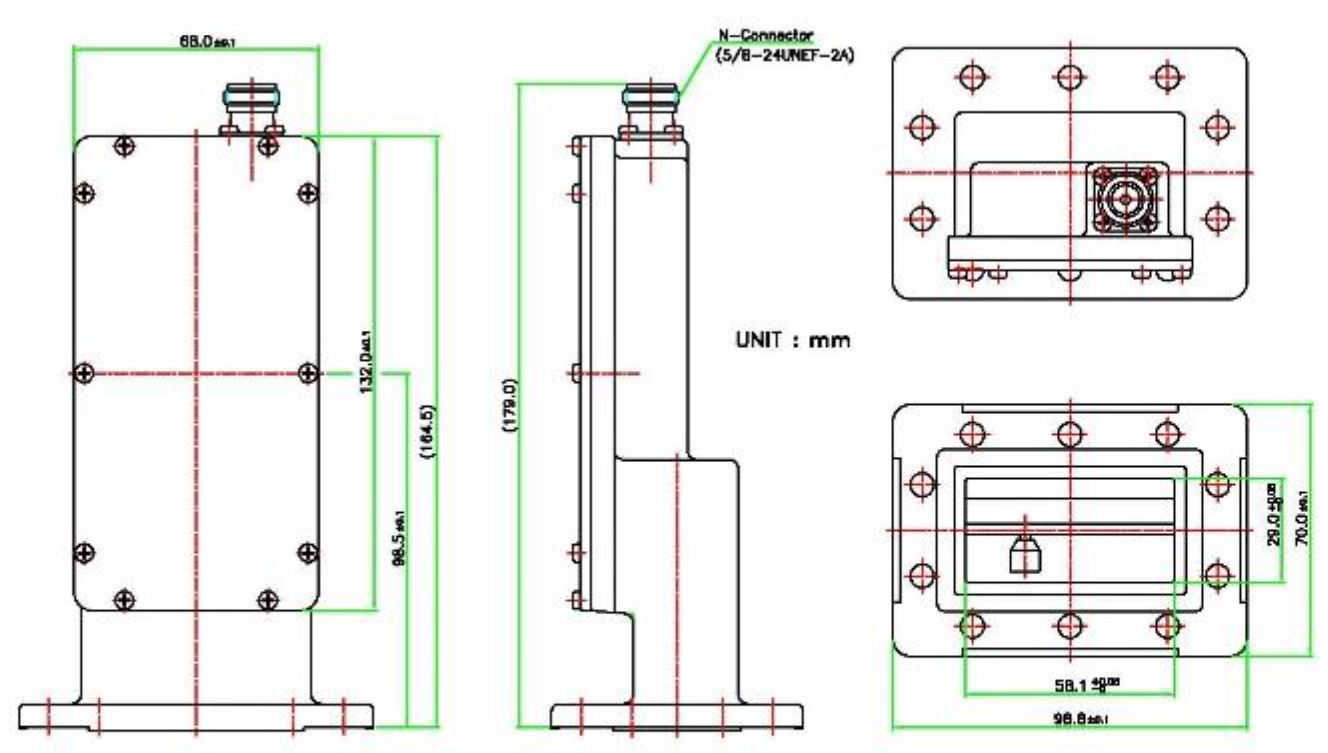

PHYSICAL SPECIFICATIONS
product height 70.0 mm
product length 164.5 mm
product weight 575g
product width 98.0 mm
