LNB-100098
Single-Band Ku-Band PLL LNBF
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| input frequency band 1 | 11.70 - 12.75 GHz |
| LO frequency 1 | 10.75 GHz |
| LO type | PLL |
| noise figure max | 1.0 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 2000 MHz |
| Product Revision | B |
| ANTENNA SPECIFICATIONS | |
|---|---|
| polarization selection | Vertical: 11.5 - 14 VDC Horizontal: 16 - 20 VDC |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain typ | 62 dB at -40 to +60℃ |
| cross polarization | 22 dB min. |
| Gain Flatness (over full band) | ±4.0 dB max. |
| gain ripple (at per 36MHz) | ±1 dB max. |
| image rejection | 40 dBc min. |
| immunity to interfering signals | -25 dBm in 10.5 GHz without degradtion in operation |
| input p1dB | -63 dBm min. |
| input VSWR | 2.5 : 1 max. |
| output VSWR | 2.5 : 1 typ. |
| P1dB | -63 dBm |
| phase noise 1kHz offset max | -60 dBc/Hz |
| rejection | -35 dB min. @ 10.5 GHz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 150 mA max. |
| power requirements | +11 to +24V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| IF connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP 67 |
| temperature operational | -5 to +60°C |

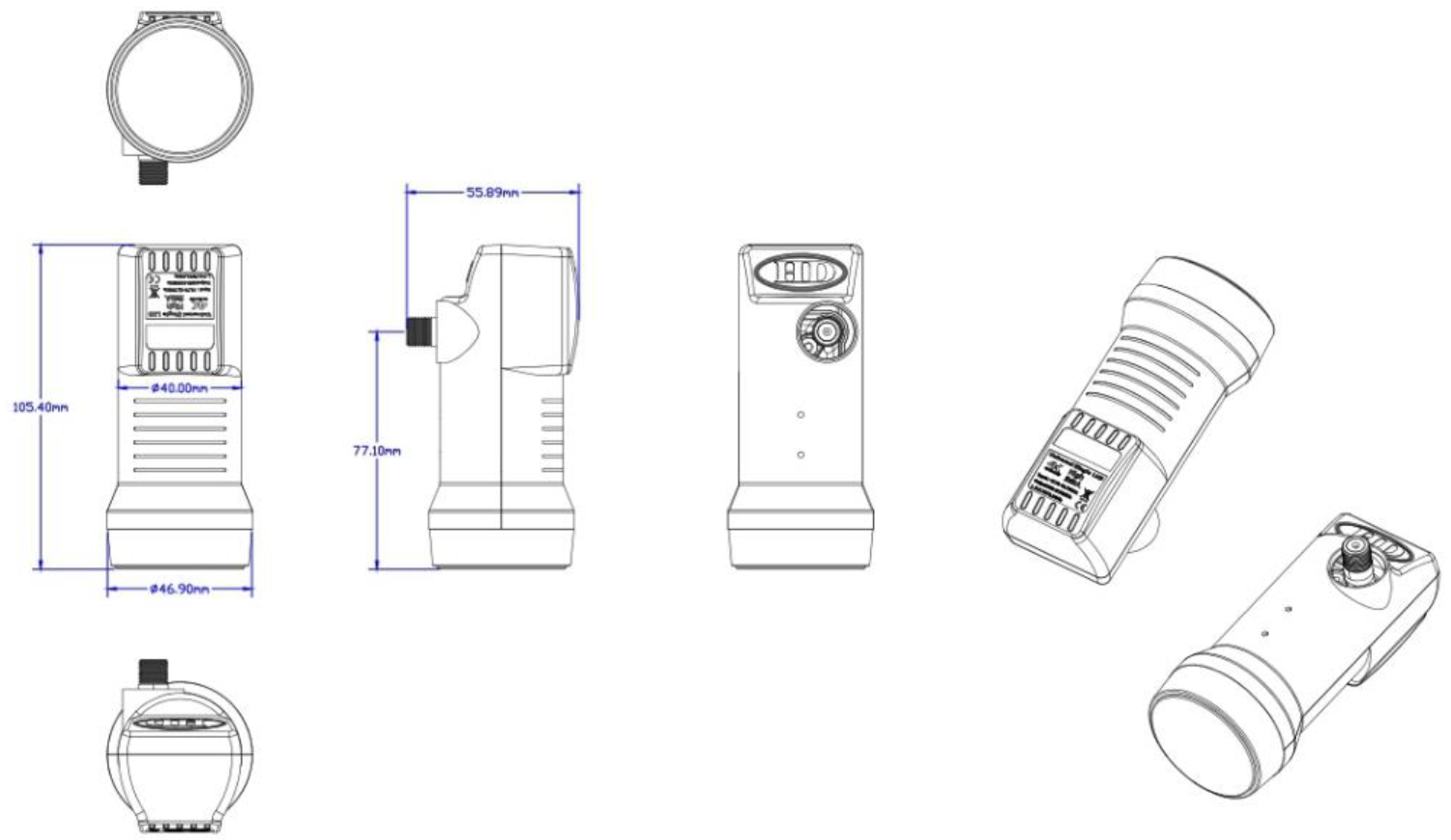

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 46.9 mm |
| product length | 105.4 mm |
| product weight | 80g |
| product width | 55.9 mm |
