LNB-100135

Single-Band Ka-Band EXT REF PLL

LNB

$918.22

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 3 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 21.0 - 22.0 GHz
LO frequency 1 20.05 GHz
LO stability Ext Ref
LO type PLL
noise figure max 1.6 dB
noise figure typ 1.5 dB
output frequency band 1 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (36MHz) 1 dB p-p max
Gain Flatness (over full band) 4 dB p-p max
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA-Connector (50 Ohm)
RF input connector WR-42 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +60°C

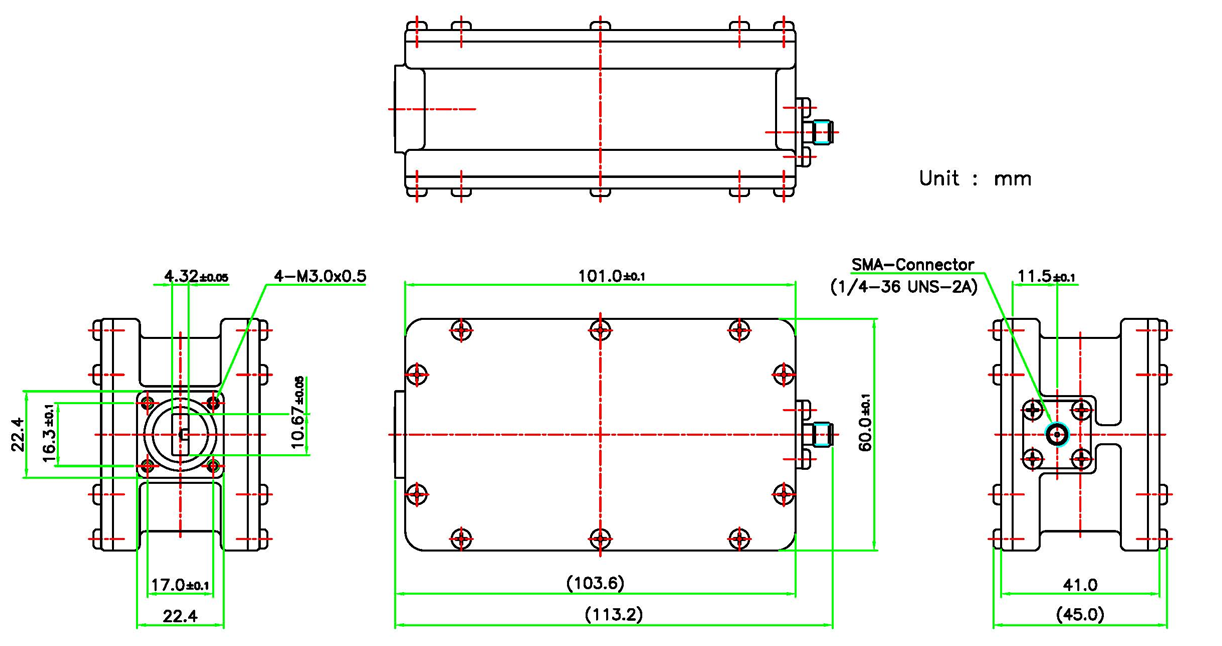

PHYSICAL SPECIFICATIONS
product height 45.0 mm
product length 113.2 mm
product weight 0.42 kg
product width 60 mm
