LNB-100189

Dual-Band Ku-Band PLL LNB (0.8 dB)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), -5 to +5 dBm
input frequency band 1 10.70 - 11.70 GHz
input frequency band 2 11.70 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.60 GHz
LO type PLL
noise figure max 1.0 dB
noise figure typ 0.8 dB
number of onboard LOs Dual-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 1100 - 2150 MHz
Product Revision A
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 18V / No Tone
conversion gain max 62 dB
conversion gain min 50 dB
conversion gain typ 57 dB
Gain Flatness (over full band) ± 2.5 dB max.
gain ripple (at per 30MHz) ± 0.4 dB max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
IP3 +25 dBm
output P1dB + 15 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1Hz offset max -75 dBc/Hz
phase noise 10Hz offset max -80 dBc/Hz
phase noise 100Hz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60˚C

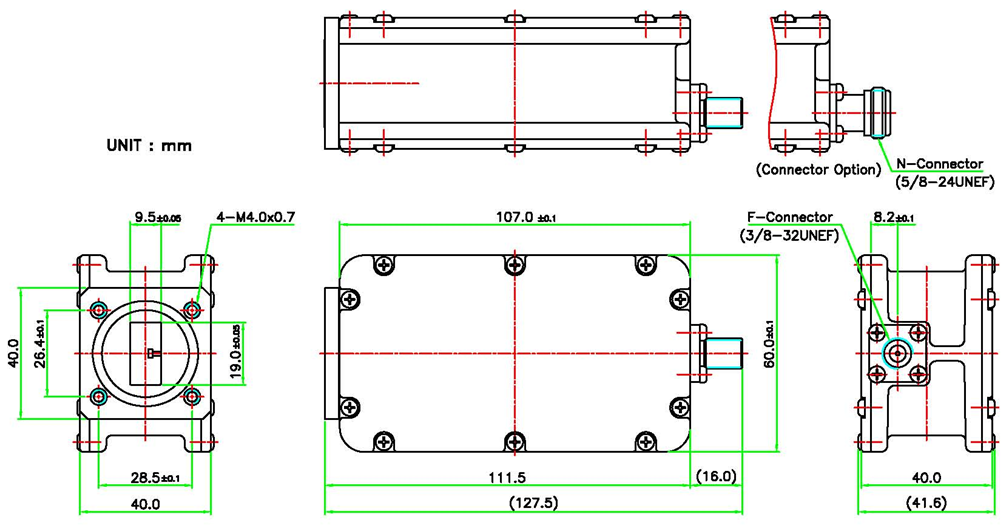

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 0.380 kg
product width 60.0 mm
