LNB-100201

Ku-Band Single Band Auto-Reference PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -10 to +10 dBm via output connector
input frequency band 1 13.40 - 13.70 GHz
LO frequency 1 12.45 GHz
LO type PLL
noise figure max 1.3 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1250 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain typ 55 dB
Gain Flatness (over full band) ± 1.5 dB typ., ± 2.0 dB max.
group delay +/- 0.25ns max. @ 50 MHz bandwidth, +/- 2ns max @ each band
image rejection 40 dBc min.
input pressurizable 0.1 bar max.
input VSWR 1.9 : 1 max.
LO leakage -60 dBm max. @ waveguide input
max input power 0 dBm instantaneous (not continuous)
output IP3 +25 dBm min.
output P1dB + 15 dBm min.
output VSWR 1.7 : 1 max.
out of band rejection 20 dB min.
phase noise 0.01kHz offset max -35 dBc/Hz
phase noise 0.1kHz offset max -63 dBc/Hz
phase noise 1kHz offset max -83 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
phase noise 1000kHz offset max -118 dBc/Hz
spurious in band Without signal: -70 dBm max., With -10 dBm output signal: -65 dBc max.
ELECTRICAL SPECIFICATIONS
power consumption 6 W max.
power requirements +11 to +26V DC through output connector
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
M and C SPECIFICATIONS
alarm Sum alarm, set via M&C to alarm in any combination of: LNA failure, Total current, LO lock (Ext/Int/n/a), signal power high/low, Supply voltage low. Open collector 3.3 to 28 V, max. 200 mA (pull-up 10 k Ohm at host side), pin 1 in M8 connector.
m and c Via MODBUS RTU RS485 electrical interface, NOTE! Mates with M8 male connector/Cable, use only shielded cables ≥ CAT 5
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +80°C
temperature storage -40 to +80°C

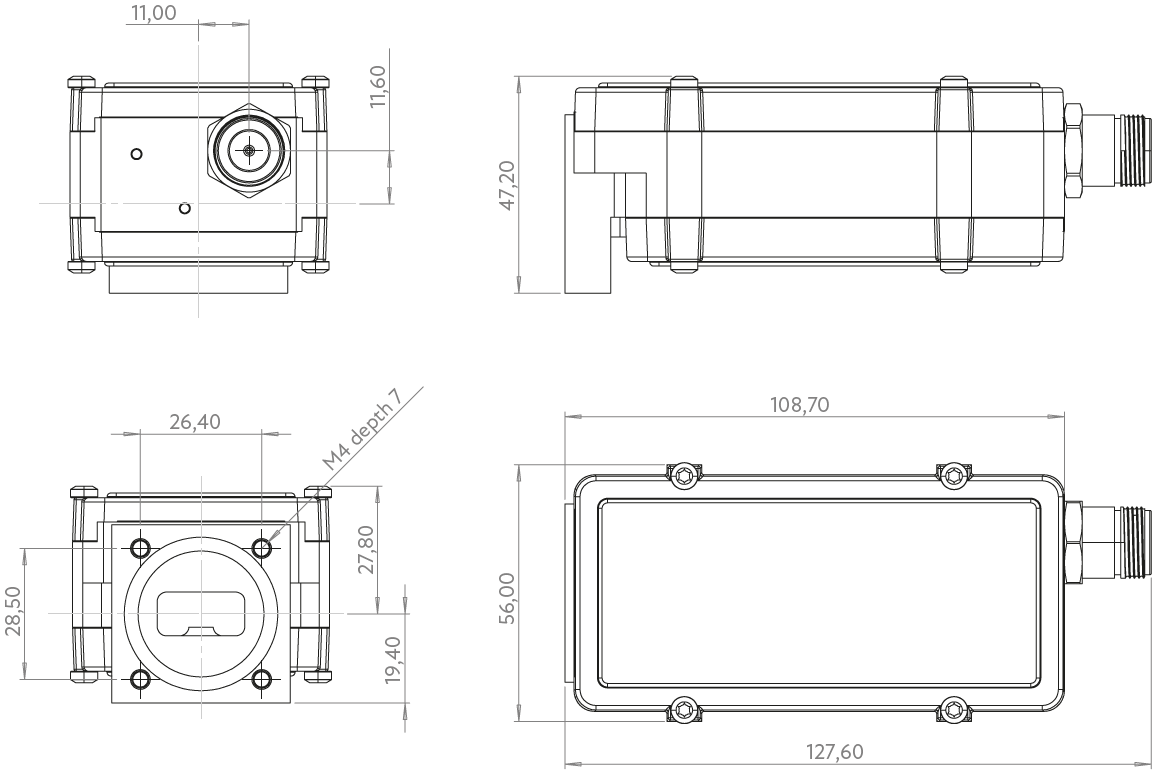

PHYSICAL SPECIFICATIONS
product height 47.2 mm
product length 108.7 mm
product weight 0.360 kg
product width 56.0 mm
