LNB-100215

Ku-Band Single Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 13.40 - 13.65 GHz
LO frequency 1 12.45 GHz
LO stability ±25 kHz
LO type PLL
noise figure max 1.0 dB
noise figure typ 0.9 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1200 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 4 dB p-p max.
gain ripple (at per 36MHz) 1 dB p-p max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +60°C

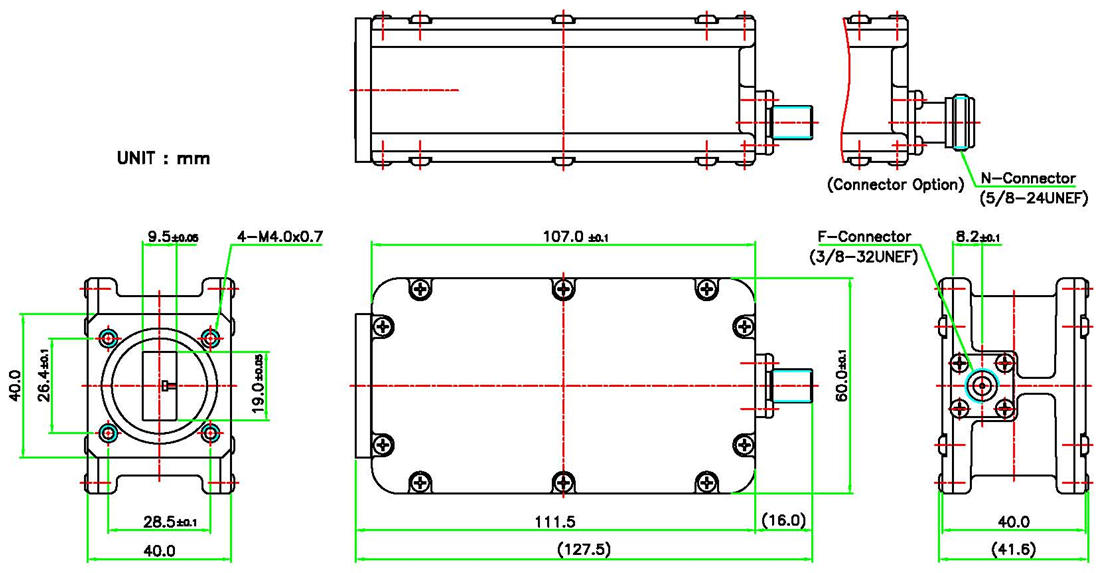

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 0.38 kg
product width 60 mm
