LNB-100219

Ka-Band Quad-Band LNB w/ Waveguide Isolator

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 17.70 - 18.70 GHz
input frequency band 2 18.45 - 19.45 GHz
input frequency band 3 19.20 - 20.20 GHz
input frequency band 4 20.20 - 21.20 GHz
LO frequency 1 16.75 GHz
LO frequency 2 17.50 GHz
LO frequency 3 18.25 GHz
LO frequency 4 19.25 GHz
noise figure max 1.8 dB with waveguide isolator
number of onboard LOs Quad-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
output frequency band 4 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
control signal 4 18V / 22kHz Tone
conversion gain max 64 dB
conversion gain min 60 dB
conversion gain typ 68 dB
Gain Flatness (Over Any 40MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
gain variation over temperature ± 1.5 dB max.
image rejection 40 dBc min. @ Band 1
10 dBc min. @ Band 2
0 dBc min. @ Band 3, 4
input VSWR 1.5 : 1 max. with waveguide isolator
output P1dB + 10 dBm min.
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA Max
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -20 to +60°C

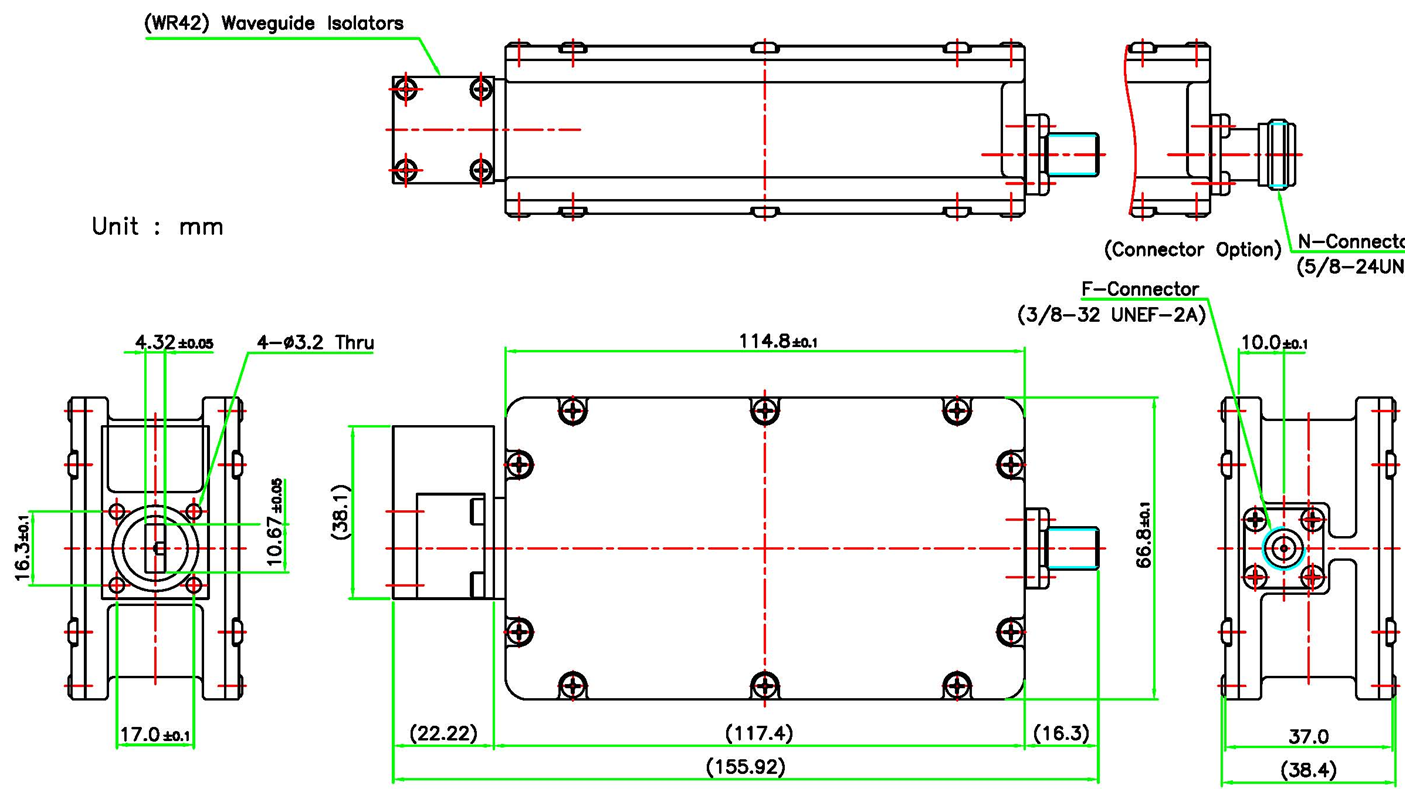

PHYSICAL SPECIFICATIONS
product height 38 mm
product length 140 mm
product weight 0.560 kg
product width 67 mm
