LNB-100228

Ku-Band Wide Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only -10 items in stock!
Maximum total coverage is 5 years.




KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 12.75 GHz
LO frequency 1 9.75 GHz
LO stability ±10 kHz
LO type PLL
noise figure max 1.0 dB
noise figure typ 0.9 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 3000 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 27MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 6 dB p-p
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max
power requirements +12 to +24 VDC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

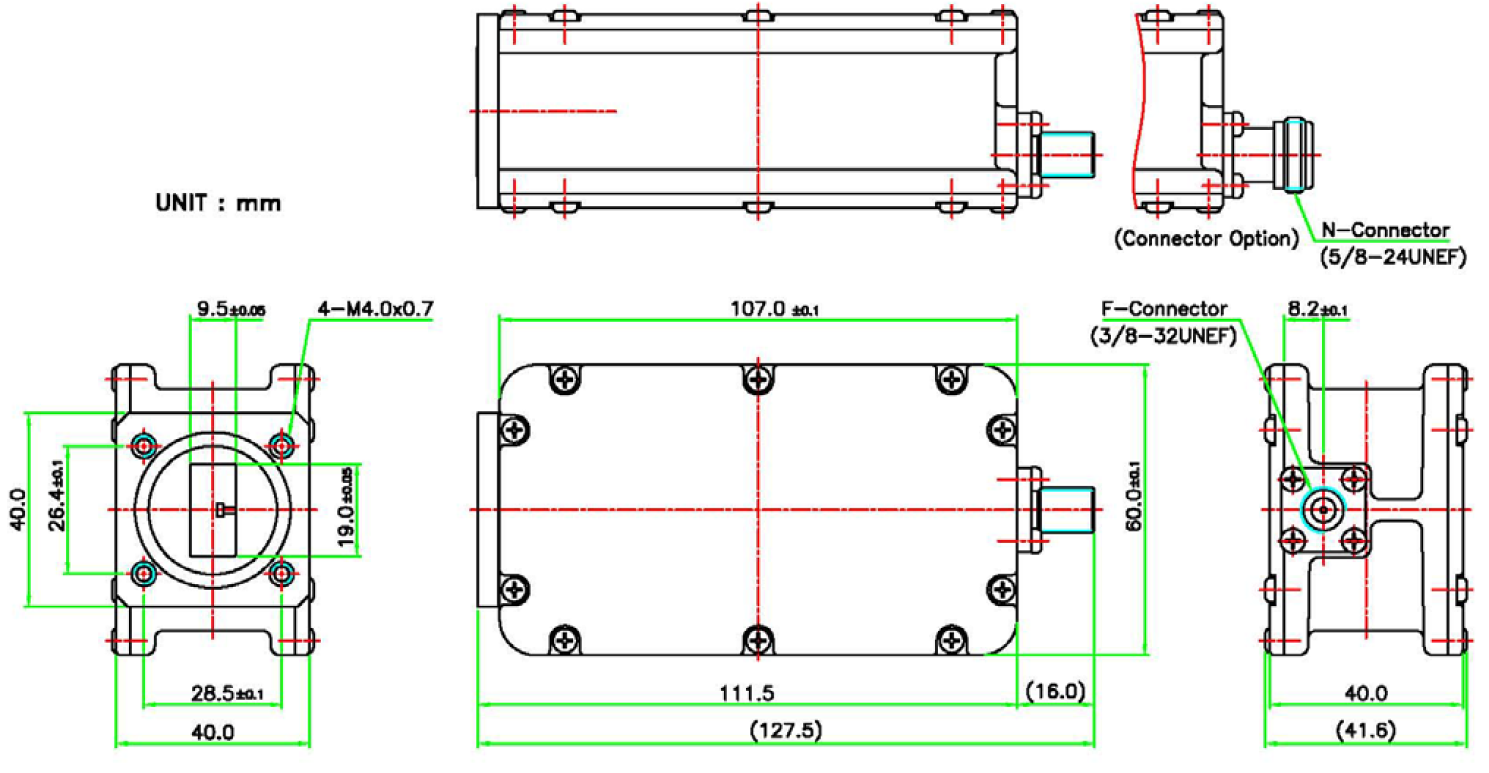

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 112 mm
product weight 0.38 kg
product width 60 mm
