LNB-100236

Five-Band Ka-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.20 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
input frequency band 3 19.20 - 20.20 GHz
input frequency band 4 20.20 - 21.20 GHz
input frequency band 5 21.20 - 22.20 GHz
LO frequency 1 16.25 GHz
LO frequency 2 17.25 GHz
LO frequency 3 18.25 GHz
LO frequency 4 19.25 GHz
LO frequency 5 20.25 GHz
LO stability ±10 kHz max.
LO type PLL
noise figure max 2.0 dB (with waveguide isolator)
number of onboard LOs Five-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
output frequency band 4 950 - 1950 MHz
output frequency band 5 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
control signal 4 18V / 22kHz Tone
control signal 5 22V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) 1 dB p-p max.
Gain Flatness (over full band) 4 dB p-p max.
image rejection 40 dBc min. @ Band 1
25 dBc min. @ Band 2
0 dBc min. @ Band 3, 4, 5
input VSWR 1.5 : 1 max. (with waveguide isolator)
output P1dB + 10 dBm min.
output VSWR 2.2 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -78 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 400 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
isolator With Isolator
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

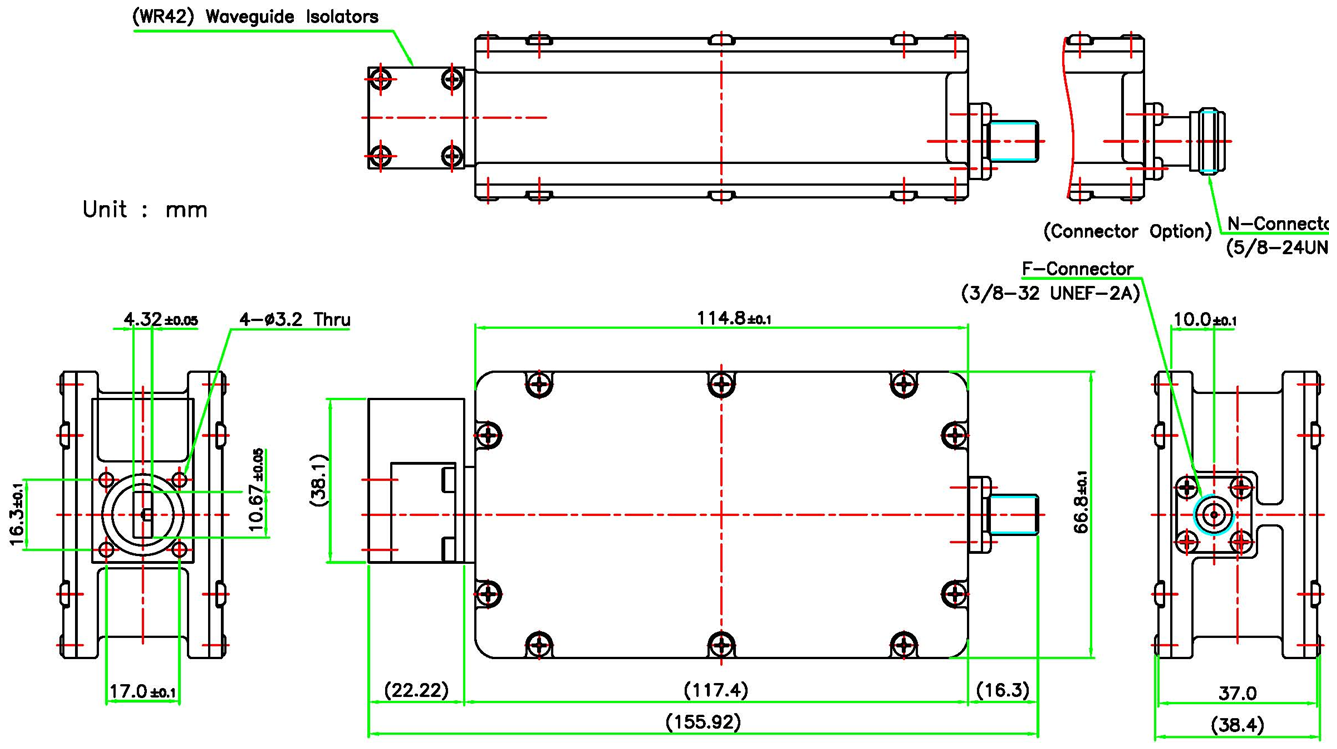

PHYSICAL SPECIFICATIONS
product height 39 mm
product length 140 mm (excludes connector)
product weight 0.56 kg
product width 67 mm
