LNB-100244

Single-Band X-Band Auto-Ref LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



AUTO-REF: Automatically switches to Internal PLL in the absence of an EXT REF 10MHz signal

KEY SPECIFICATIONS
band X-Band
colour RAL6031
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 7.25 - 7.75 GHz
LO frequency 1 6.30 GHz
LO stability ±25 kHz max.
LO type Auto-Reference
noise figure max 0.7 dB
noise figure typ 0.6 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 56 dB
conversion gain typ 60 dB
Gain Flatness (36MHz) 1 dB p-p max.
Gain Flatness (over full band) 4 dB p-p max.
image rejection 40 dBc min.
input VSWR 2.0 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.0 : 1 max.
phase noise 0.01kHz offset max -75 dBc/Hz
phase noise 0.1kHz offset max -85 dBc/Hz
phase noise 1kHz offset max -95 dBc/Hz
rejection 50 dB min. at 7.90 GHz
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-112
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +60°C

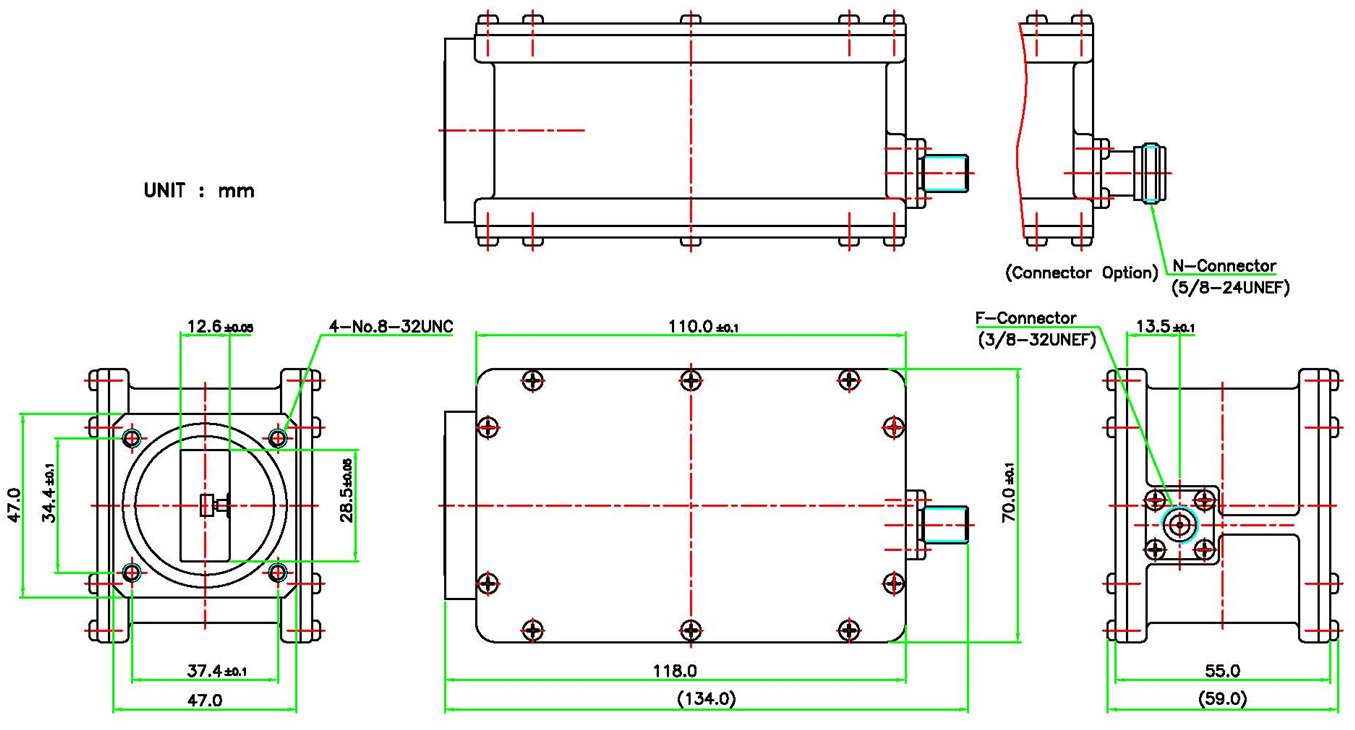

PHYSICAL SPECIFICATIONS
product height 0.059 m
product length 0.118 m
product weight 0.62 kg
product width 0.07 m
