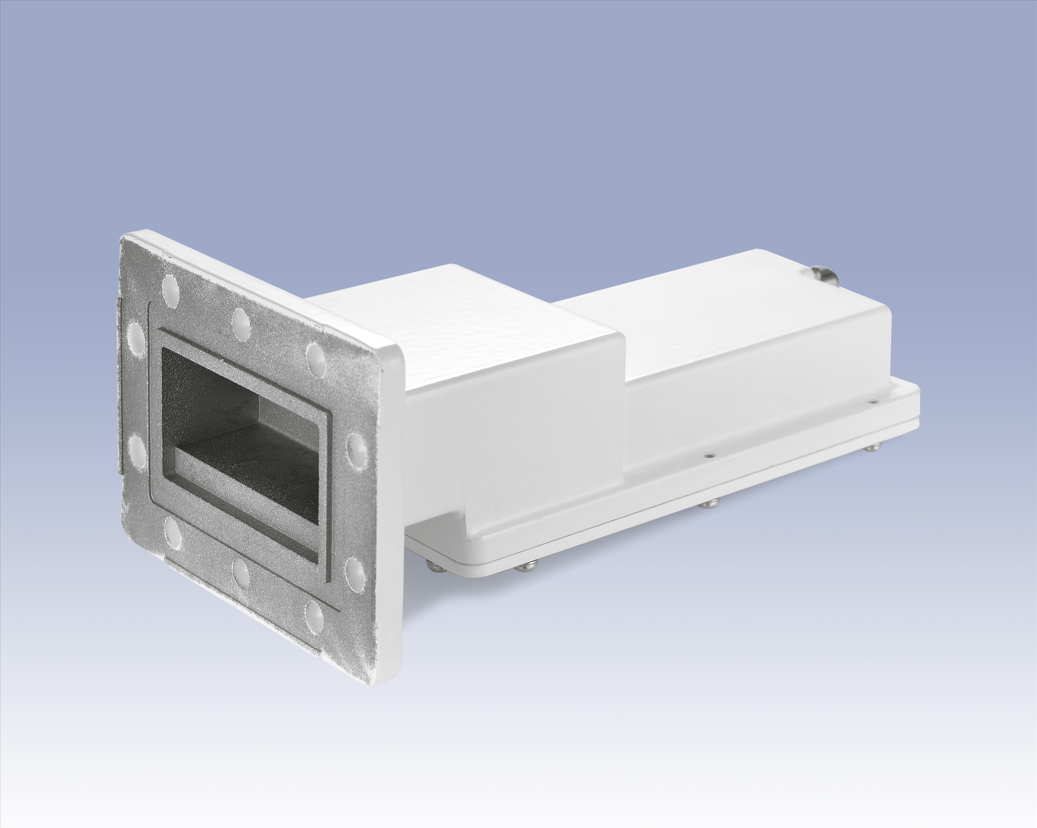

Single-band C-Band LNB
Single-band C-Band LNB
Single-band C-Band LNB
Single-band C-Band LNB

LNB-100247

Single-band C-Band LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.625 - 4.8 GHz
LO frequency 1 5.75 GHz
LO stability ±25 kHz max.
noise temperature max 30K
number of onboard LOs Single-Band
output frequency band 1 950 - 2150 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (40MHz) 1 dB p-p max.
Gain Flatness (over full band) 5 dB p-p max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB +5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector CPR-229 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +60°C

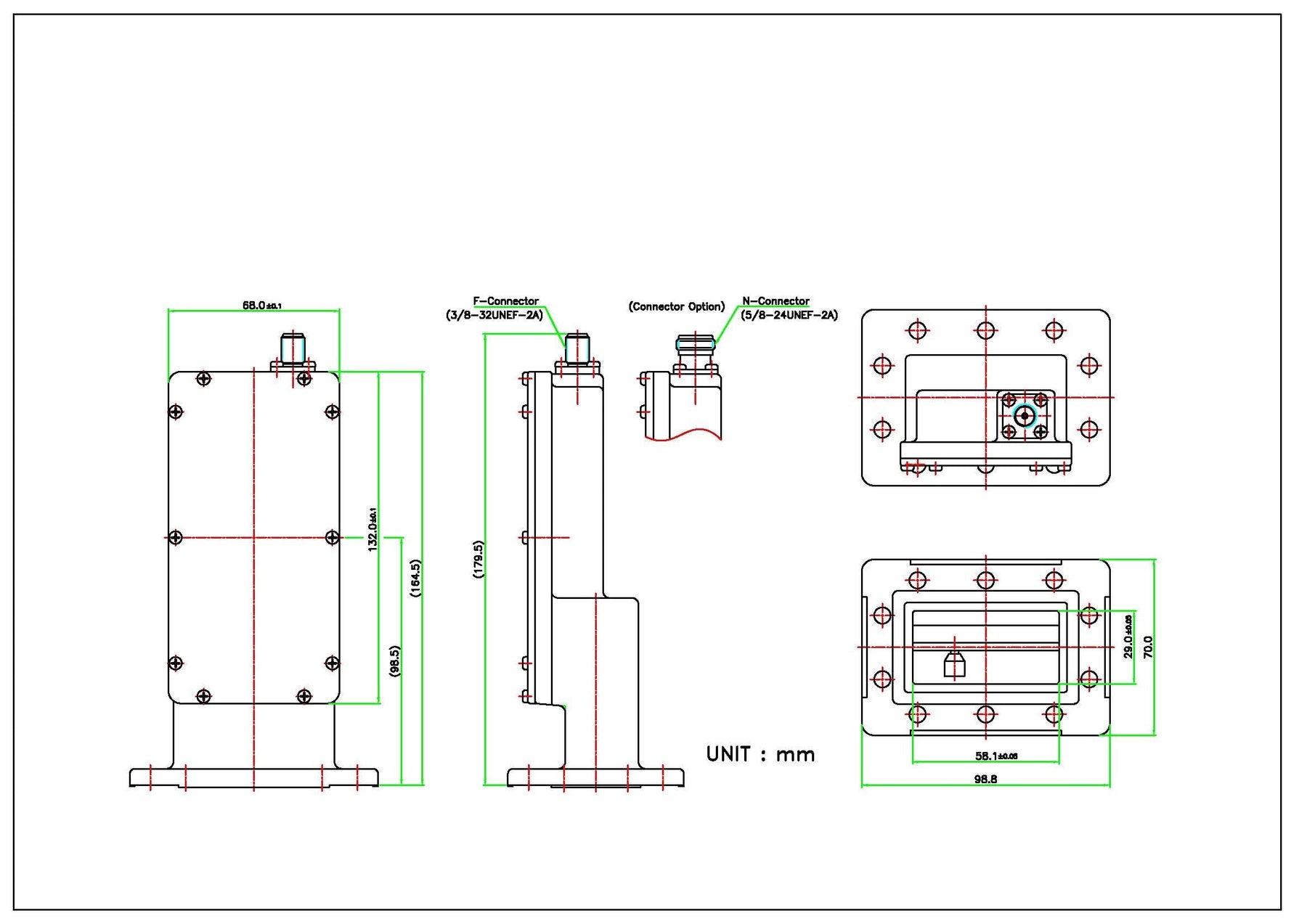

PHYSICAL SPECIFICATIONS
product height 0.0700 m
product length 0.1645 m
product weight 0.575 kg
product width 0.0988 m
