RSW-100281
BUC Redundant Switch System 1:1
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| redundancy | 1:1 |
| switchover time | Fault detection, 20 - 50 msec Total switchover, 100 msec max. |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power | Switch Drive: +12 to +24 VDC Redundant Switch Controller Box: +12 to +55 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| alarm | Closure to ground, (ground = fault / open = OK) |
| connector | N-Connector |
| mode | Manual / Auto |
| m and c interface | RS-485, RS-232, RS-422, Ethernet |
| status LED | GREEN: Indicate Switch Position RED: Indicate Active Alarms |
| waveguide | WR-75 |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| enclosed accessories | Includes: Controller Box, Waveguide Redundancy Switch, Waveguide Termination, Waveguide Elbows, 6 feet Flexible Waveguide, Mounting Plate, Various Cabling and Transit Case |
| packaging | Transit Case Weight: 11.82 kg Estimated Transit Case Dimensions (L x W x H): 79 x 78 x 33 cm Estimated |

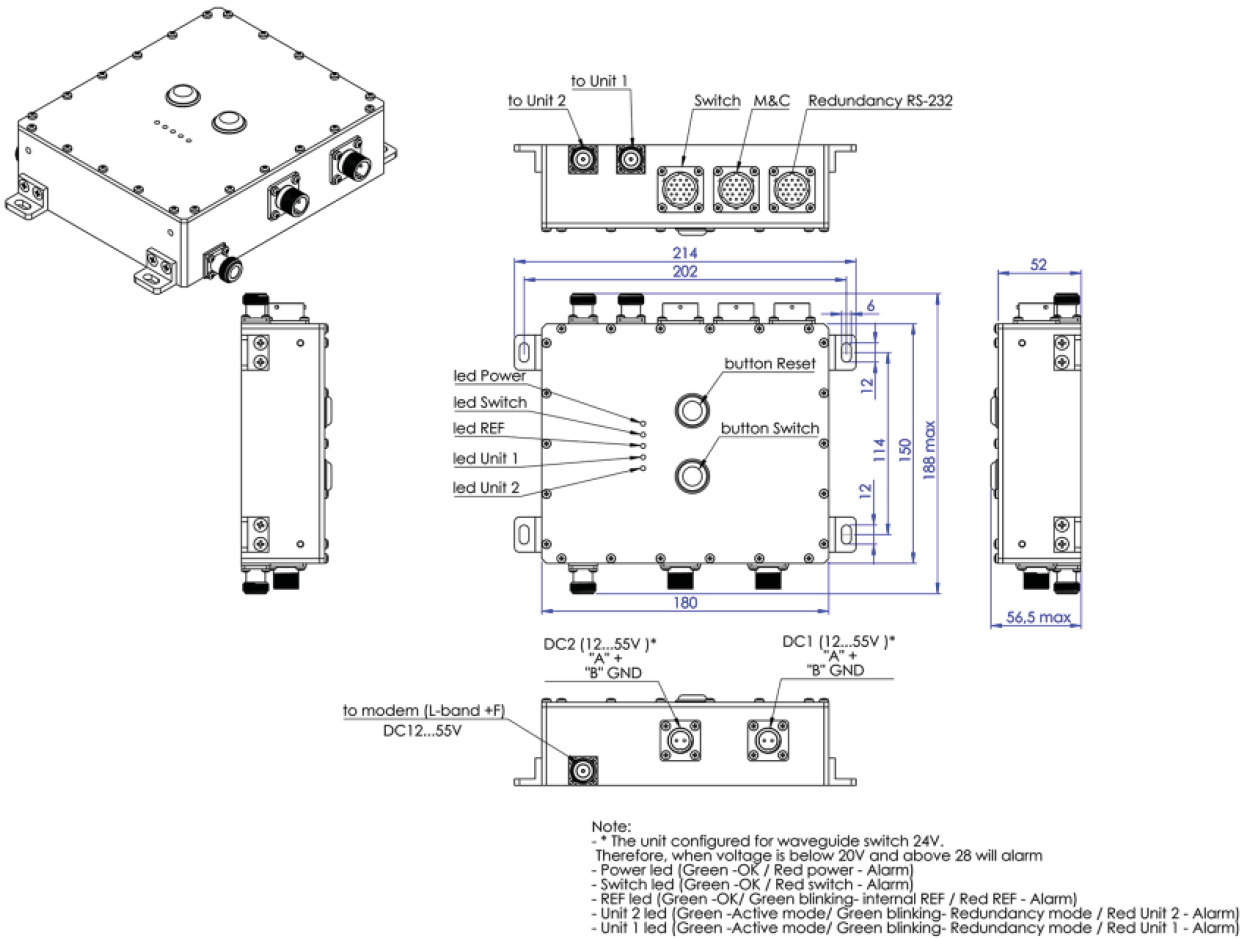

| product height | 56.5 mm |
| product length | 214 mm |
| product weight | 2.6 kg |
| product width | 188 mm |
