MEDIAN 16W Ku-Band
MEDIAN 16W Ku-Band
MEDIAN 16W Ku-Band
MEDIAN 16W Ku-Band

MED-100022

MEDIAN 16W Ku-Band

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref frequency 10 MHz (sine-wave), -5 to +5 dBm
input frequency band 950 - 1700 MHz
LO frequency 12.8 GHz
output frequency band 13.75 - 14.50 GHz
output power rated 16W
Product Revision D
RF SPECIFICATIONS
gain stability ≤ 3.0 dB p-p
gain variation over 36 MHz ≤ 1.0 dB p-p
gain variation over 500 MHz ≤ 3.0 dB p-p
gain variation over 750 MHz ≤ 4.0 dB p-p
input VSWR 1.5 : 1 max.
output power Plin PLin 1: 41 dBm min. -26 dBc regrowth, 1.5 SR
PLin 2: 40 dBm min. -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier)
PLin 3: 39 dBm min. <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier)
output power Psat 42 dBm min.
output spurious ≤ - 55 dBc
phase noise 0.1kHz offset max -60 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
small signal gain 70 dB nominal
ELECTRICAL SPECIFICATIONS
power consumption ≤ 70 W @ Psat
voltage range +18 to 56 V DC via IFL connector
INTERFACE SPECIFICATIONS
IF connector N-Connector
led indicators Green = normal
Red on = PLL alarm
Red flashing = Temp alarm
m and c connector 8 Pin from PT02E-14-12P(072)
output interface WR75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
humidity 0-100% Condensing
temperature operational -40°C to +60°C

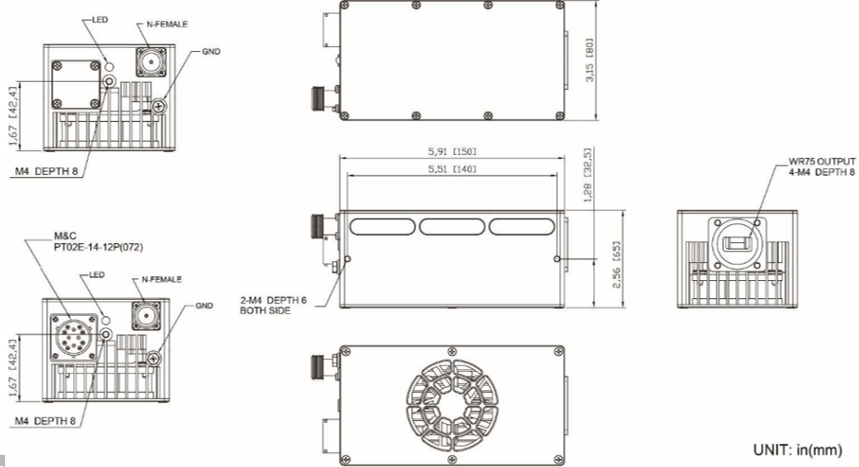

PHYSICAL SPECIFICATIONS
color Tan (FS33303 or RAL7034)
product height 65 mm
product length 150 mm
product weight 1.0 kg
product width 80 mm
