PS-100046

100 Power Supply

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
output power rated 96 W
Product Revision A
ELECTRICAL SPECIFICATIONS
input current 1.2 A / 115 VAC, 0.55 A / 230 VAC, 0.5 A / 277 VAC
input frequency 50 - 60 Hz
input in rush current Cold Start 60 A / 230 VAC
input leakage current < 0.75 mA / 277 VAC
input voltage 100 - 240 VAC
output current 4 A
output current adjustment range 2.5 - 4.0 A
output ripple and noise 150 mVp-p
output voltage 12 - 24 VDC
over temperature Shut down, re-power to recovery
over voltage 28 - 34 VAC
short circuit Constant current
ENVIRONMENTAL SPECIFICATIONS
humidity 20% - 95% RH non-condensing
humidity storage 10 - 95 % RH
temperature coefficient ±0.03% / °C (0°C - 60°C)
temperature operational -40°C to +80°C @ Full Load
temperature storage -40°C to +80°C

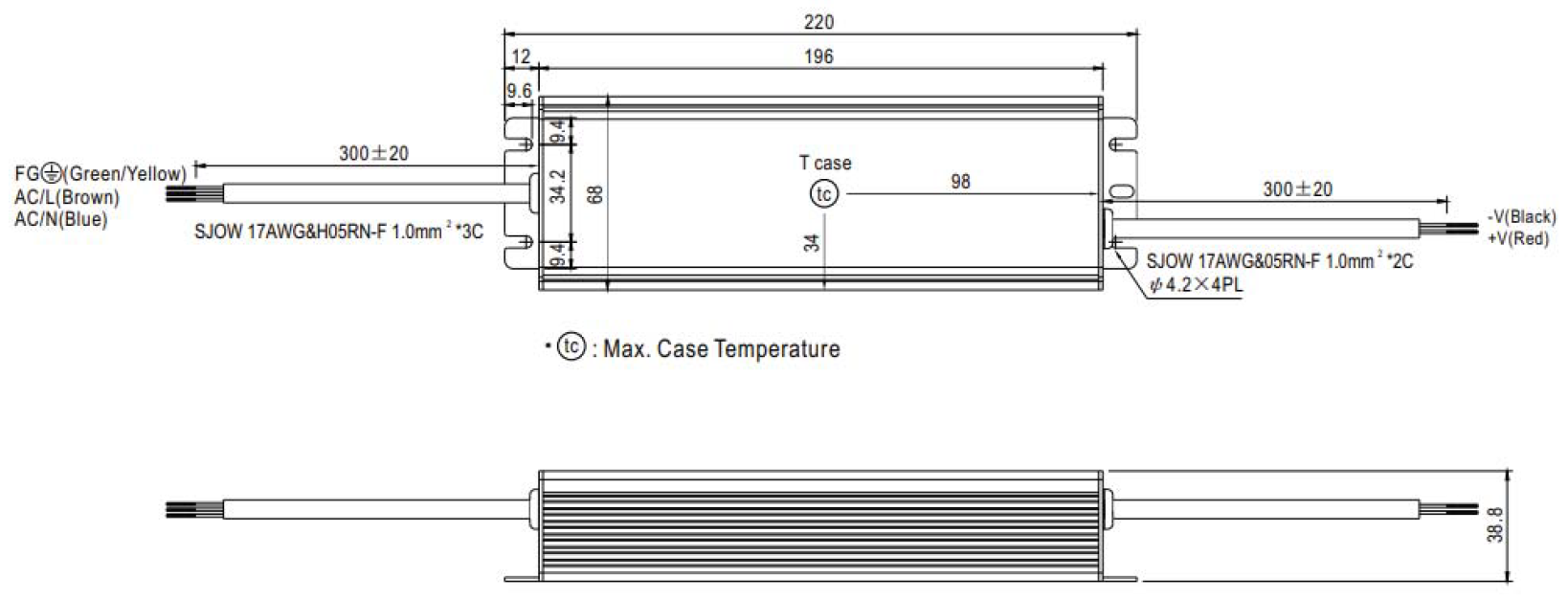

PHYSICAL SPECIFICATIONS
product height 38.8 mm
product length 220.0 mm
product weight 1.12 kg max.
product width 68 mm
