PS-100053

90W Power Supply

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
output power rated 90W
Product Revision A
ELECTRICAL SPECIFICATIONS
input current consumption 1 A (100 V AC)
0.4 A (277 V AC)
input inrush current ≤ 35 A (typical, 277 V AC)
17 A (typical, 120 V AC)
input mains buffering time > 25 ms (120 V AC)
> 25 ms (230 V AC)
input power factor > 0.92
input protective circuit Transient surge protection, Varistor
input voltage range 100 - 277 V AC -15 % to +10 %
115 - 277 V AC ±10 % (UL)
50 Hz to 60 Hz ±10 %
insulation voltage input/output 4 kV AC (type test)
3 kV AC (routine test)
number of phases 1.00
output connection Connection in parallel: yes, for increasing power and redundancy with diode
Connection in series: yes, for increased output voltage
output current 3.75 A (NEC Class 2 Output)
output efficiency typ. 93 % (120 V AC)
typ. 94 % (230 V AC)
output residual ripple ≤ 10 mVPP
output voltage 24 V DC ±2 % (SELV)
INTERFACE SPECIFICATIONS
AC input connector IPD panel feed-through with Push-in spring connection
DC output connector IPD panel feed-through with Push-in spring connection
status LED AC OK
DC OK
ENVIRONMENTAL SPECIFICATIONS
altitude ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m)
IP rating IP 67
relative humidity ≤ 100 % (at 25 °C, non-condensing)
shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27)
temperature operational -25 °C to 70 °C (Derating > 60 °C: 2 %/K)
temperature storage -40 °C to 85 °C
vibration operational 10 - 59.6 Hz, amplitude ±0.35 mm (in accordance with IEC 60068-2-6)
59.6 - 150 Hz, 5g, 20 cycles

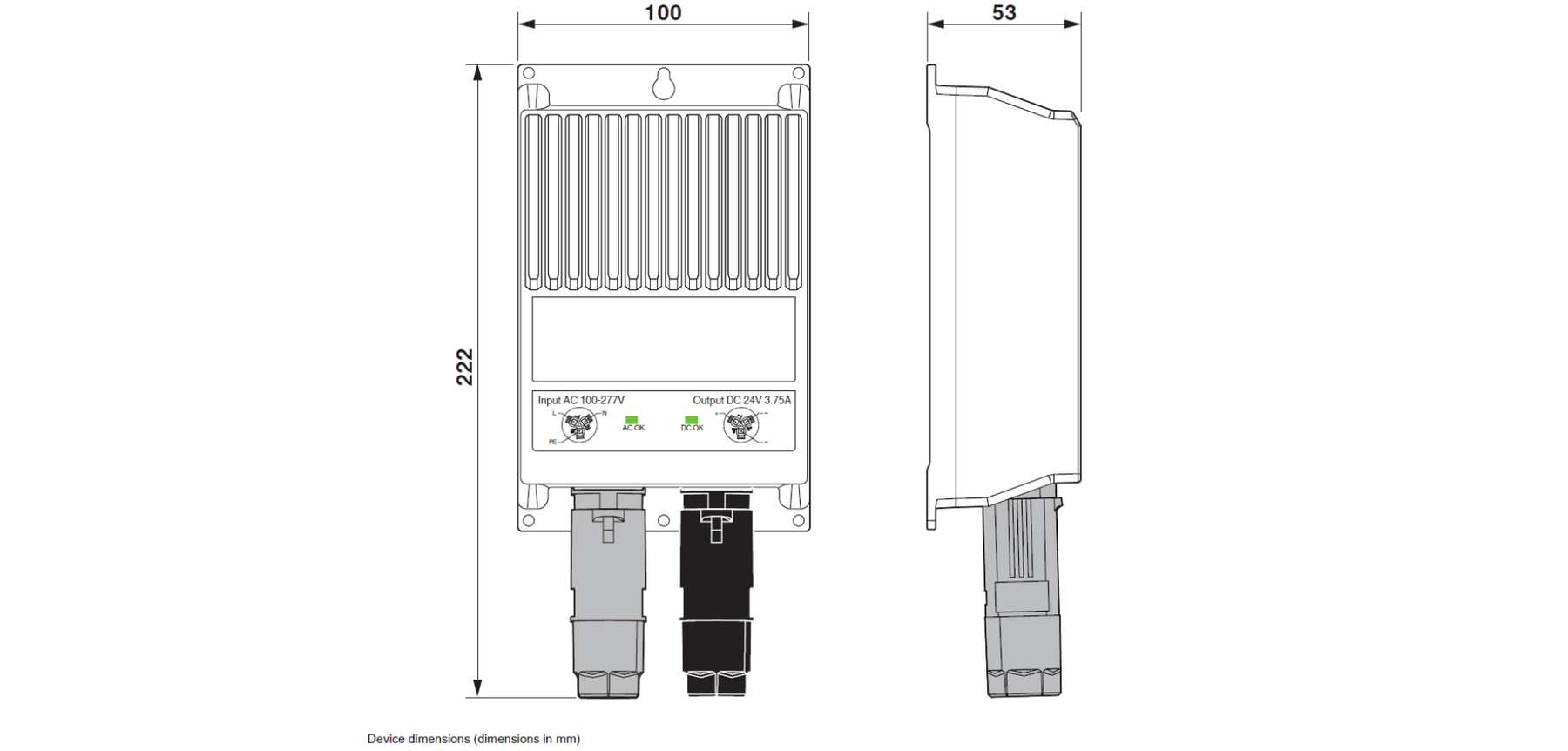

PHYSICAL SPECIFICATIONS
material Housing: Aluminum
mounting configurations Panel Mounting
Drill Hole Diameter: 4.2mm
product height 0.053 m
product length 0.222 m
product weight 0.766 kg
product width 0.1 m
