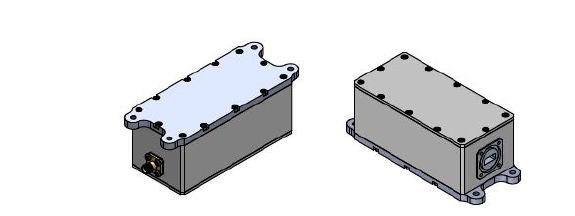

Quad-Band Ka-Band PLL LNB 9000-100115
Quad-Band Ka-Band PLL LNB 9000-100115
Quad-Band Ka-Band PLL LNB 9000-100115
Quad-Band Ka-Band PLL LNB 9000-100115

9000-100115

Quad-Band Ka-Band PLL LNB 9000-100115

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.70 - 18.40 GHz
input frequency band 2 18.30 - 19.00 GHz
input frequency band 3 18.90 - 19.60 GHz
input frequency band 4 19.50 - 20.20 GHz
LO frequency 1 16.75 GHz
LO frequency 2 17.35 GHz
LO frequency 3 17.95 GHz
LO frequency 4 18.55 GHz
LO type PLL
noise figure max 1.5 dB
number of onboard LOs Quad-Band
output frequency band 1 950 - 1650 MHz
output frequency band 2 950 - 1650 MHz
output frequency band 3 950 - 1650 MHz
output frequency band 4 950 - 1650 MHz
Product Revision D
RF SPECIFICATIONS
Control Signal 1 13V / No Tone
Control Signal 2 13V / 22kHz Tone
Control Signal 3 18V / No Tone
Control Signal 4 18V / 22kHz Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over Any 30MHz) ≤ 5 dB p-p max
Gain Flatness (Over Full Band) ≤ 1 dB p-p over any 36 MHz
image rejection

Band 1: 40 dBc min., Band 2: 40 dBc min., Band 3: 40 dBc min., Band 4: 40 dBc min.
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
Phase Noise 10kHz Offset Max -83 dBc/Hz
Phase Noise 1kHz Offset Max -73 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max.
Power Requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA
Isolator Without Isolator
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational -40 to +70°C

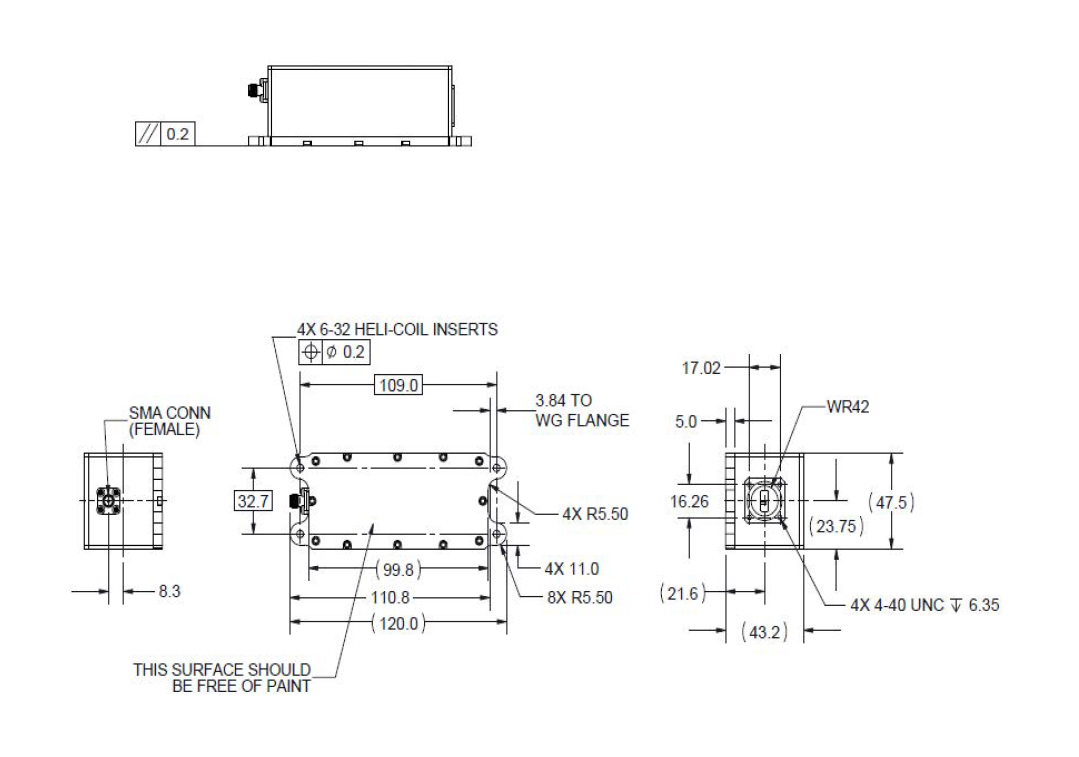

PHYSICAL SPECIFICATIONS
product height 43.20mm
product length 120mm
product weight 0.4 kg
product width 47.50mm
