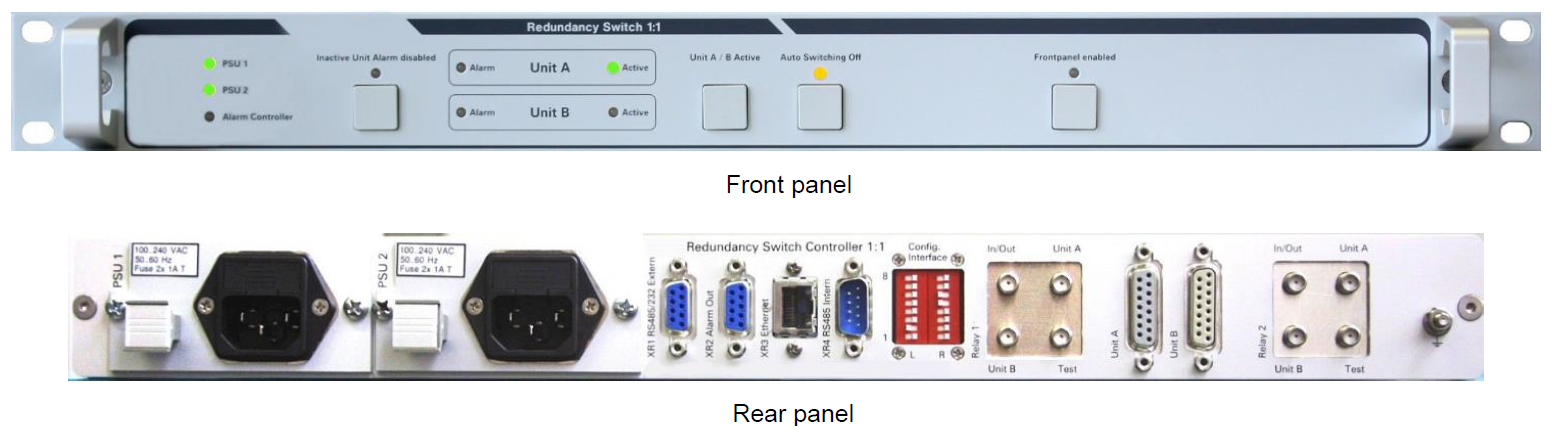

Up/Down Converter Redundant Switch System 1:1
Up/Down Converter Redundant Switch System 1:1
Up/Down Converter Redundant Switch System 1:1
Up/Down Converter Redundant Switch System 1:1

RSW-100191

Up/Down Converter Redundant Switch System 1:1

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
frequency band Up to L-Band: 0 - 1 GHz
L/S-Band: 1 - 4 GHz
C-Band: 4 - 8 GHz
X-band: 8 - 12.4 GHz
Ku-Band: 12.4 - 18 GHz
switching Manual or Automatic
switch type Latching (remains in position without voltage)
Product Revision A
RF SPECIFICATIONS
switch insertion loss Up to L-Band: 0.2 dB max.
L/S-Band: 0.2 dB max.
C-Band: 0.3 dB max.
X-band: 0.4 dB max.
Ku-Band: 0.6 dB max.
switch isolation Up to L-Band: 85 dB min.
L/S-Band: 80 dB min.
C-Band: 70 dB min.
X-band: 65 dB min.
Ku-Band: 60 dB min.
switch VSWR Up to L-Band: 1.1 : 1 max.
L/S-Band: 1.15 : 1 max.
C-Band: 1.25 : 1 max.
X-band: 1.35 : 1 max.
Ku-Band: 1.6 : 1 max.
ELECTRICAL SPECIFICATIONS
fuse 2 x 2 x 2.0 A, time-lag fuse
power consumption 25 VA max. / 7 W max.
power requirements 2 x 100 - 240 VAC nom., 90 - 264 VAC max., 50 - 60 Hz, Redundant Power Supply, Hot swap
switch power handling 1 W (switching)
INTERFACE SPECIFICATIONS
alarm Two potential free contacts (DPDT), connector DSUB09 female
alarm interface to units 2 Interfaces to sense contact closure or alarm signal at alarm output of unit or additional unit, connectors DSUB15 female
configuration 16 DIP switches on rear side / serial interface
controller internal delay From unit alarm occurrence until IF/RF switch has switched:
Typical 28 ms, max. 35 ms (Signal outage can be longer due to synchronization time of the spare unit, e.g. Modulator.)
internal m and c interface RS485, connector DSUB09 male
M&C interface

Protocol: SNMP
Connection: UDP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45
Protocol: HTTP (web browser interface)
Connection: TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45
Protocol: Multipoint packet format commands
Connection: RS232 or RS422/RS485 (configurable), connector DSUB09 female or TCP/IP over Ethernet (10 or 100 Mbps, auto sensing), connector RJ-45
power connector 2 x IEC C14
switch connector SMA-Connector (50 Ω)
user interface 10 LEDs, 4 Function Keys
ENVIRONMENTAL SPECIFICATIONS
relative humidity < 95 % non condensing
temperature operational 0°C to +50°C
temperature storage -30°C to +80°C
PHYSICAL SPECIFICATIONS
product height 44 mm
product length 270 mm
product weight Approx. 3 kg
product width 483 mm
switch panel weight and dimensions 483 x 88 + connectors x 96 mm³ (WxHxD), 2 RU 19” + IF/RF connectors, approx. 1 kg
