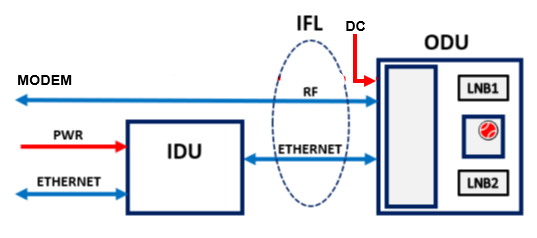

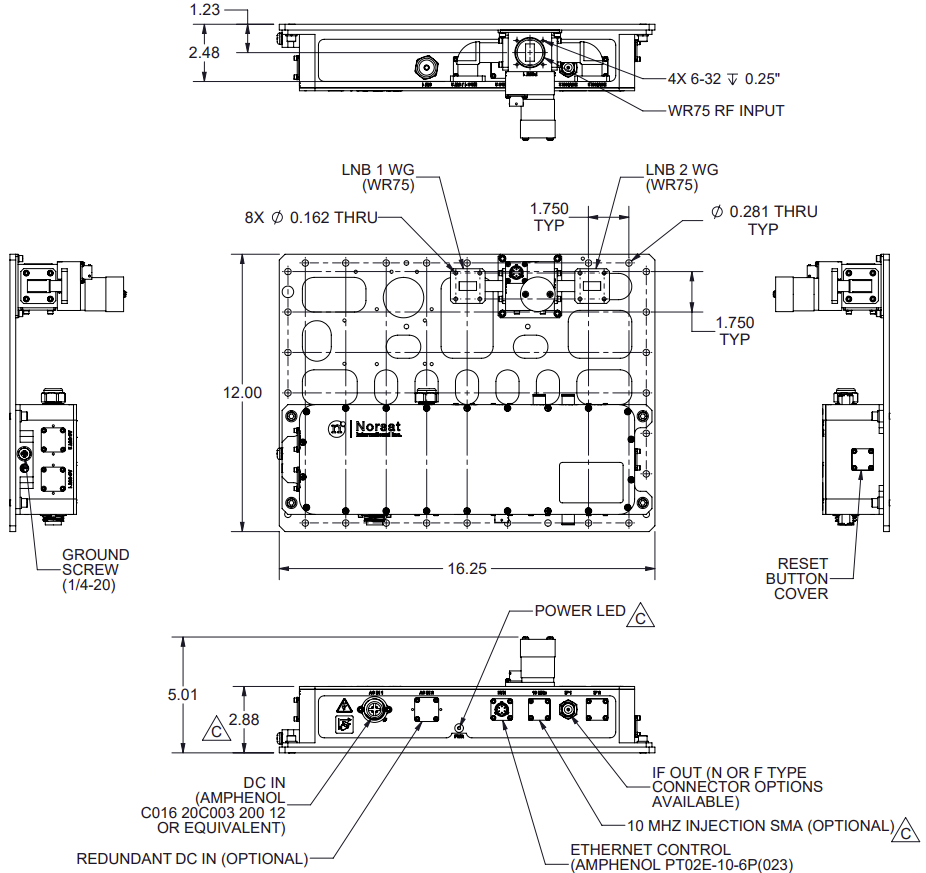

| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| input frequency band 1 | 950 - 2150 MHz |
| redundancy | 1:1 |
| switchover time | 420 ms max. |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| insertion loss | Waveguide to LNB: 0.5 dB max.; LNB to Cable: 2.8 dB max. |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| input power | 43 VDC - 160 VDC, w/ Redundant Power Supply Port |
| output power | 24 VDC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| input connector | WR-75 |
| RF output connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP 66 |
| relative humidity | Operational: 8% - 100%; Storage: 10% - 100% |
| temperature operational | -40°C to +60°c |
| temperature storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| controller box height | 66.80 mm |
| controller box length | 411.73 mm |
| controller box weight | 3.4 kg |
| controller box width | 163.83 mm |
| RF switch height | 118.36 mm |
| RF switch length | 174.63 mm |
| RF switch weight | 0.88 kg |
| RF switch width | 54.51 mm |
