9000-100121

Simultaneous Ka-Band LNB

$4,275.46

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



LNB, KA-BAND, PLL, SIMULTANEOUS 2 OUTPUT, 18.7-20.7 GHZ, EXT. REF., NF:1.8DB, N-CONN

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, - 5 to +5 dBm
input frequency band 1 18.70 - 19.70 GHz
input frequency band 2 19.70 - 20.70 GHz
LO frequency 1 17.75 GHz
LO frequency 2 18.75 GHz
noise figure max 1.8 dB
number of onboard LOs Simultaneous-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (36MHz) ± 0.5 dB max.
Gain Flatness (over full band) ± 2.0 dB max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max. (each band)
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

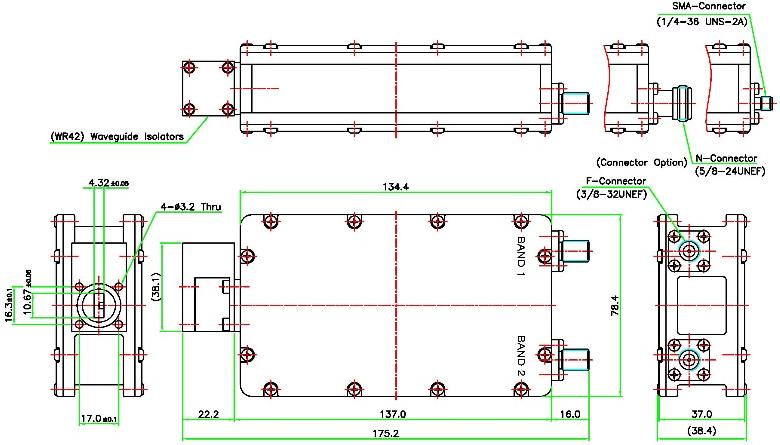

PHYSICAL SPECIFICATIONS
product height 159.2 mm
product length 38.4 mm
product weight 0.75 kg
product width 78.4 mm
