LNA-100123

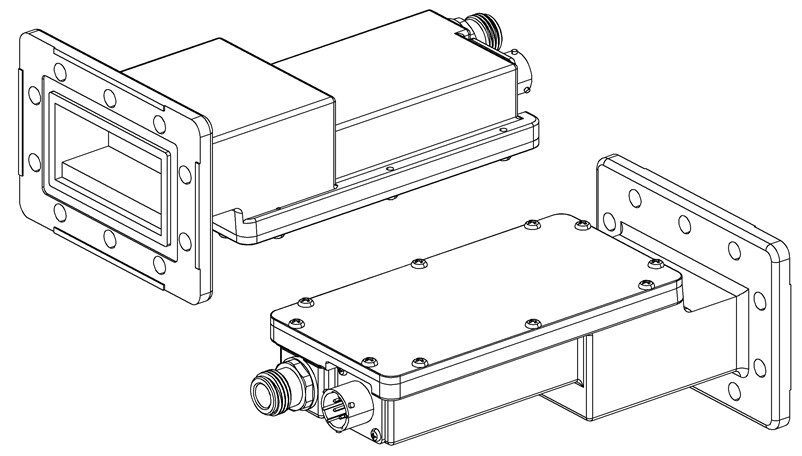

Single-Band C-Band LNA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 4.9 - 5.1 GHz
noise temperature max 50 K
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 200 mA max.
input power via Output Connector
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector CPR 229G waveguide grooved
RF output connector SMA 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

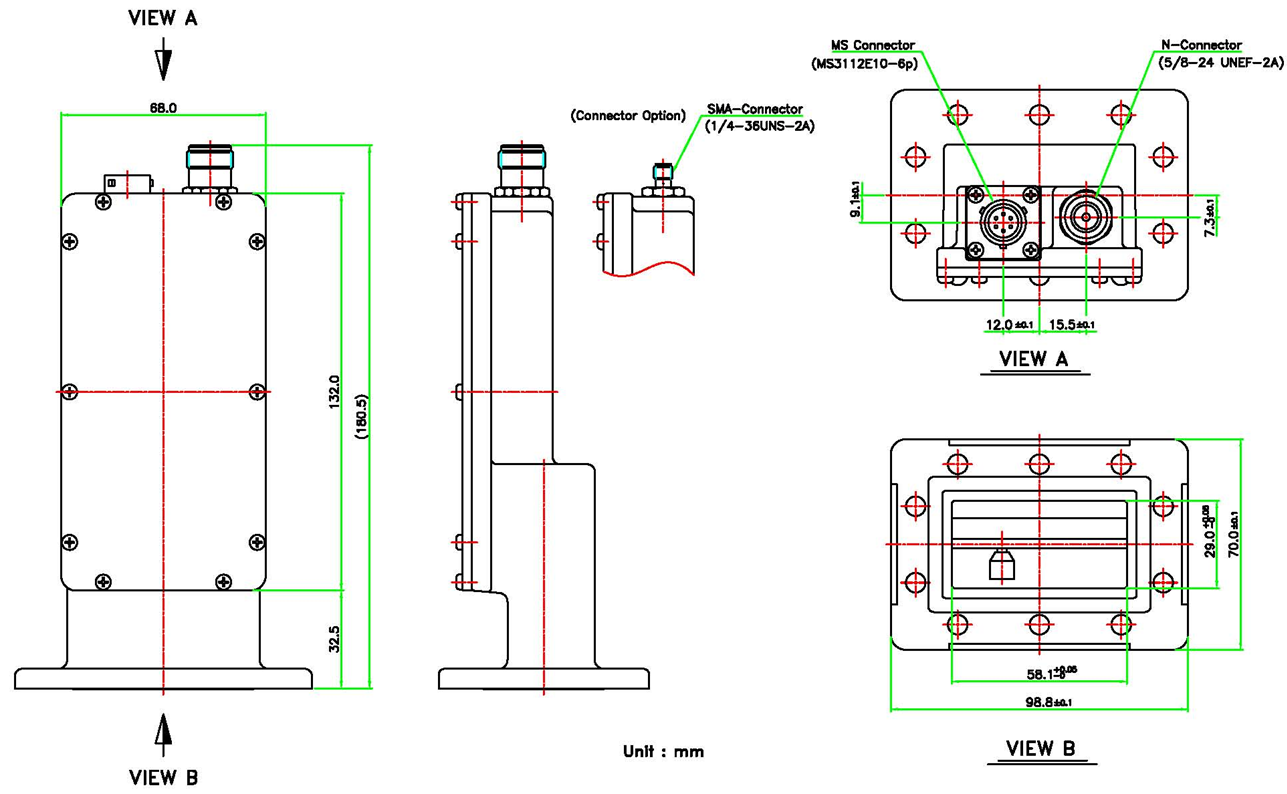

PHYSICAL SPECIFICATIONS
product height 70.0 mm
product length 164.5 mm
product weight 0.63 kg
product width 98.8 mm
