LNA-4000-SA

Single-Band Ku-Band LNA

LNA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 12.95 GHz
noise figure max 0.8 dB
Product Revision A
RF SPECIFICATIONS
conversion gain max 50 dB
conversion gain min 43 dB
conversion gain typ 46 dB
Gain Flatness (over full band) ±3 dB max.
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 150 mA max.
input power via IFL
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector N: 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 100% RH
temperature operational -40 to +60°C
temperature storage -40 to +80°C

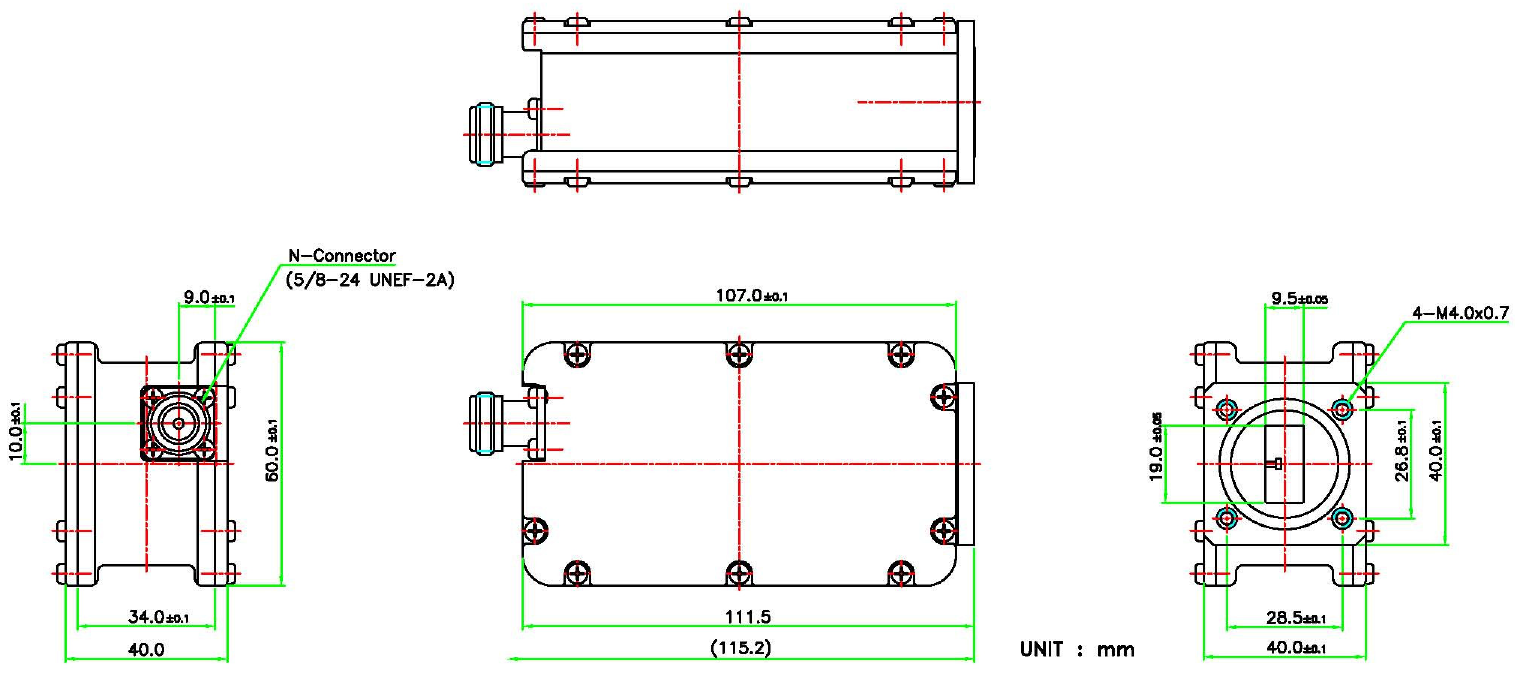

PHYSICAL SPECIFICATIONS
product height 0.0416 m
product length 0.1115 m
product weight 0.45 kg
product width 0.06 m
