ACC-100585

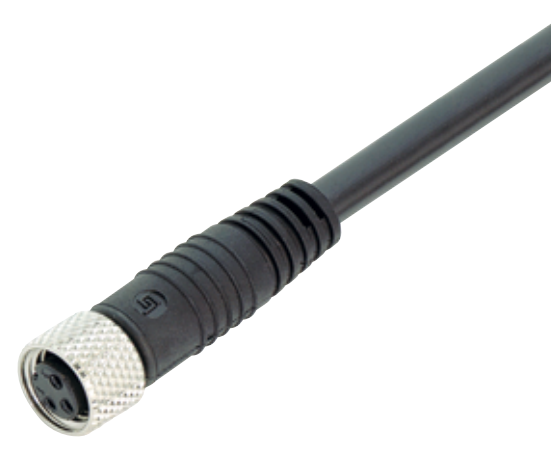

Spare cable for ULC-2S-50-CI
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|

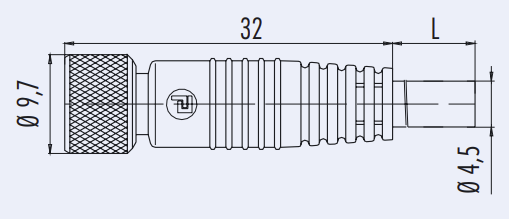

| connector | Connector Locking System: Screw Termination: Female Cable Connector Moulded on Cable |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| contact plating | Au (Gold) |
| contact resistance | ≤3 mΩ |
| material at contact | CuSn (Bronze) |
| rated current | 4 A (0.25 mm2, 40ºC) |
| rated impulse voltage | 800 V |
| rated voltage | 30 V |
| wire gauge | 0.25 mm2 (AWG 24) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| cable length | 2m |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| IP rating | IP67 |
| temperature operational | -25°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| number of contacts | 4 |
