ACC-100906

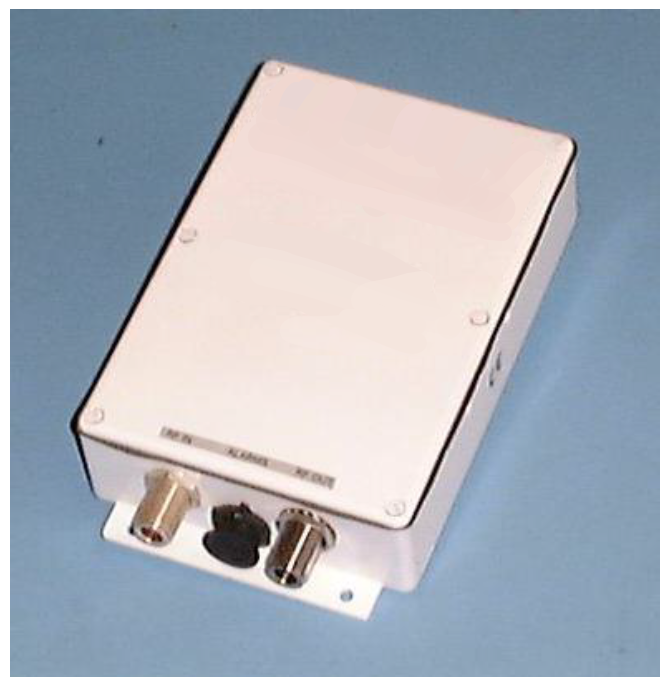

Test Loop Translator X Band

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
connector type Multi-pin, circular weatherproof (mating parts supplied)
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 6.7 - 7.1 GHz
output frequency band 1 7.4 - 7.8 GHz
reference type Auto Reference (automatically switches to internal reference if no external reference detected)
Product Revision A
RF SPECIFICATIONS
aging <5 x 10^-9 per day, <5 x 10^-7 per year
allan deviation 1 x 10^-11 over 1s
attenuator range 30 dB nominal, 0.1 dB step, remote via Ethernet
conversion loss 20dB ±2dB at 0dB attenuation
Gain Flatness (over temperature) ±0.25 dB from 0 to 40°C
input P1dB +10 dBm min.
input return loss >18 dB
max input no damage +15 dBm
mute isolation 60 dB min.
output return loss 15 dB
phase noise 0.1kHz offset max -75 dBc/Hz
phase noise 1000kHz offset max -125 dBc/Hz
temperature stability <5 x 10^-8 over 0 to 60°C
ELECTRICAL SPECIFICATIONS
current consumption 500 mA nomimal
input power Fed in on control interface connection
power requirements +16.5 to 35 VDC

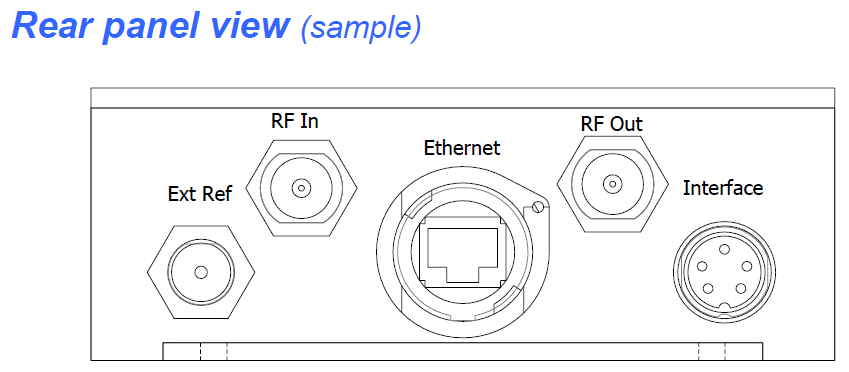

INTERFACE SPECIFICATIONS
alarm Summary alarm contacts
input connector N-Connector
M&C interface Ethernet, Embedded Web Server & SNMP network management support
output connector N-Connector
ENVIRONMENTAL SPECIFICATIONS
compliance EMC: EN 55022, part B & EN 50082-1
Safety: EN 60950
humidity 0 to 100% condensing
IP rating IP66
temperature operational -25°C to +55°C (less solar gain)
PHYSICAL SPECIFICATIONS
material Die-cast Aluminum
product height 95 mm
product length 290mm .plus connections & mounting flanges
product weight 1.4 kg
product width 230 mm
