| KEY SPECIFICATIONS | |
|---|---|
| tone amplitude | 0.55 ~ 0.9 vpp |
| tone frequency | 20 ~ 24 kHz |
| Product Revision | A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 500 mA max. |
| power requirements | +23 to +25 V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| band selection | Band Select by Rotary SW: Band 1: 13 VDC Band 2: 13 VDC & 22 KHz Band 3: 18 VDC Band 4: 18 VDC & 22 KHz Band 5: 22 VDC Band 6: 22 VDC & 22 KHz |
| input interface | F, N or SMA female connector (from modem) |
| output interface | F, N or SMA female connector (to LNB) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -40°C to +80°C |

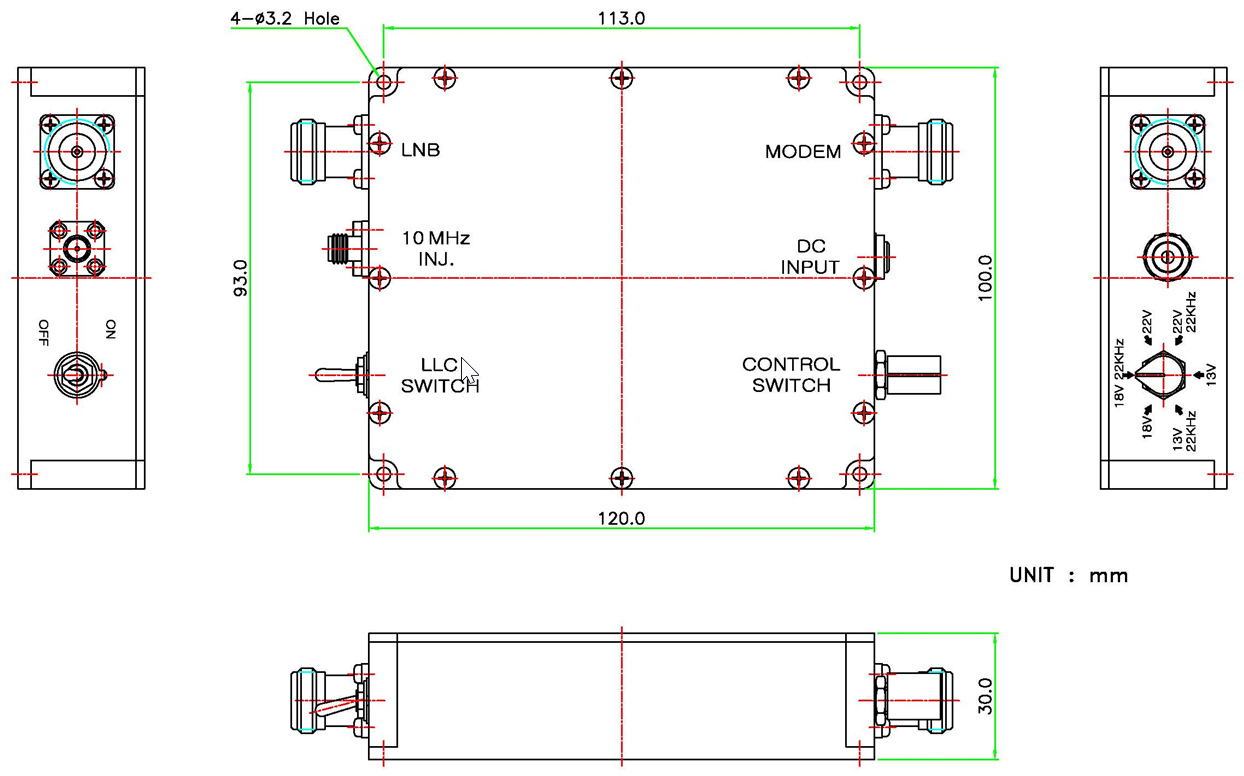

| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | white |
| product weight | 850 g |
