ADPT-100031
Waveguide Transition WR137 to WR112
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| frequency | 6.57 - 8.20 GHz |
| product family | Waveguide to Waveguide Transistion |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| VSWR | 1.15 : 1 max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| input connector | Waveguide: WR-137 Flange Type: FDM70 (CPRG) |
| output connector | Waveguide: WR-112 Flange Type: FBP84 (Square Cover) |

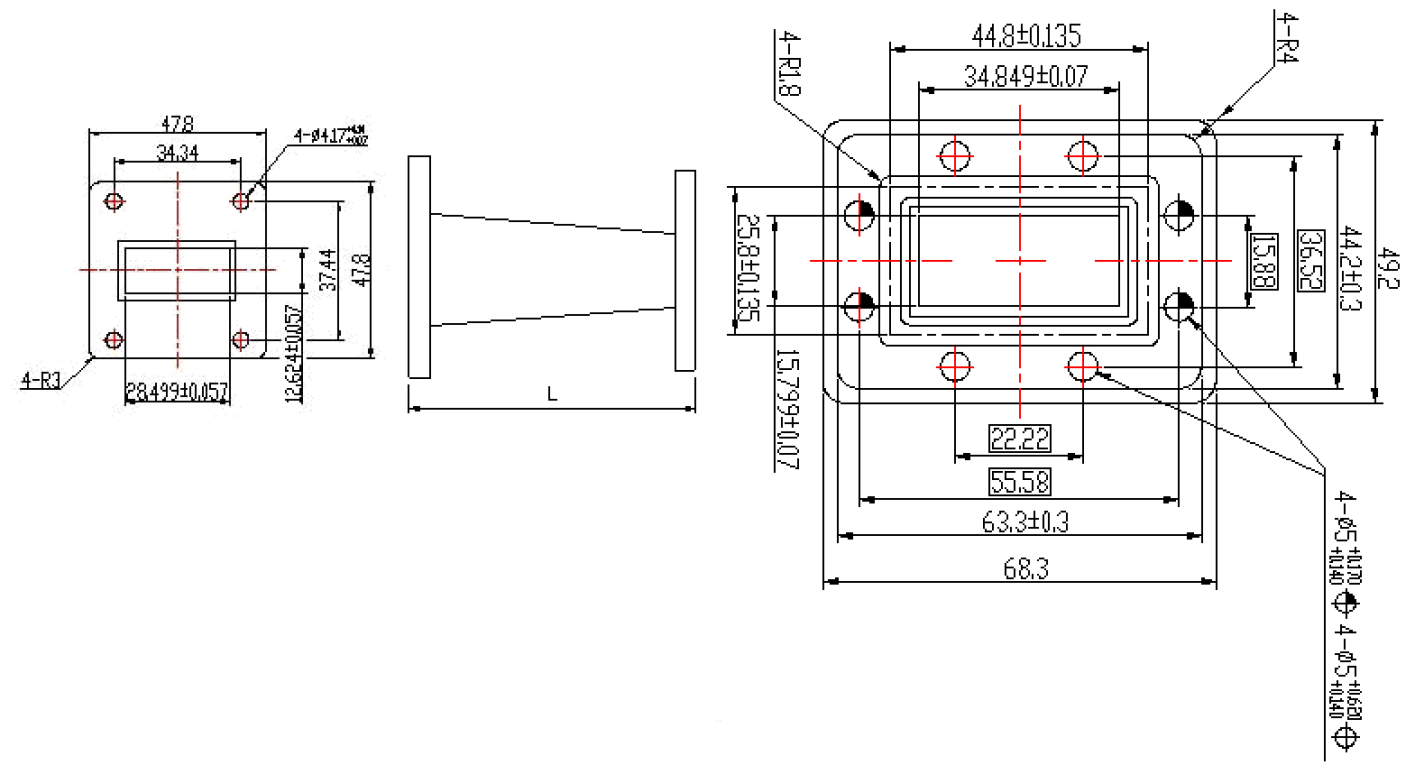

| PHYSICAL SPECIFICATIONS | |
|---|---|
| enclosed accessories | Gaskets mated with flange FDM70 |
| finish | Inside: Silver Plating Outside: Anti-Corrosion Grey Paint |
| material | Copper |
| product height | 49.2 mm |
| product length | L = 130 mm |
| product width | 68.3 mm |
