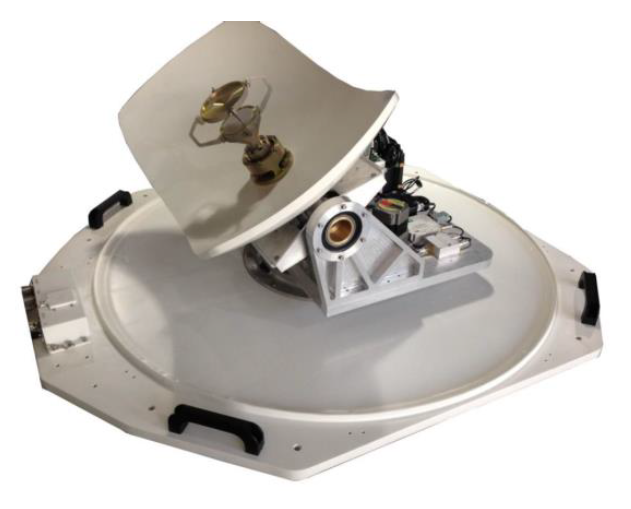

WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna

COTM-100028

WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 0.50m
antenna category On the Move
band Ku-Band
reflector material Carbon Fiber
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Low Profile Parabolic
auto acquisition Initial acquisition satellite time: ≤ 3min
azimuth acceleration ≥ 200°/s²
azimuth speed ≤ 60°/s
cross polarization isolation 30 dB, On Axis
elevation acceleration ≥ 200°/s²
elevation speed ≤ 60°/s
insertion loss radome ≤ 0.3 dB
motion range AZ 360° unlimited
motion range EL 5° - 90°
motion range POL ± 90°
polarization Linear
polarization speed ≤ 40°/s
satellite time Blockage recovery time: ≤ 5s; Blockage: 20min
sidelobe AZ: ≤ -14 dB (first side lobe)
tracking accuracy ≤ 0.5 dB (R.M.S.)
RF SPECIFICATIONS
port isolation Tx-Rx 85 dB
power capacity 100 W
Rx frequency 10.95 - 11.45 GHz
rx gain 32.4+20lg(f/10.85GHz) dBi
Rx interface N-50K
Rx VSWR 1.5：1
Tx frequency 12.75 - 13.25 GHz
tx gain 34.0+20lg(f/13.0GHz) dBi
Tx interface WR75
Tx VSWR 1.5：1
ELECTRICAL SPECIFICATIONS
power consumption ≤ 300W (Excluding BUC)
power supply 220V AC, 50Hz
ENVIRONMENTAL SPECIFICATIONS
humidity 0-95%
temperature operational -40℃ to +55℃
temperature storage -50℃ to +70℃
windspeed operational 21 m/s
windspeed survival 35 m/s
PHYSICAL SPECIFICATIONS
color White
product weight ≤ 52 kg (excluding BUC, LNB, packaging and accessories)
