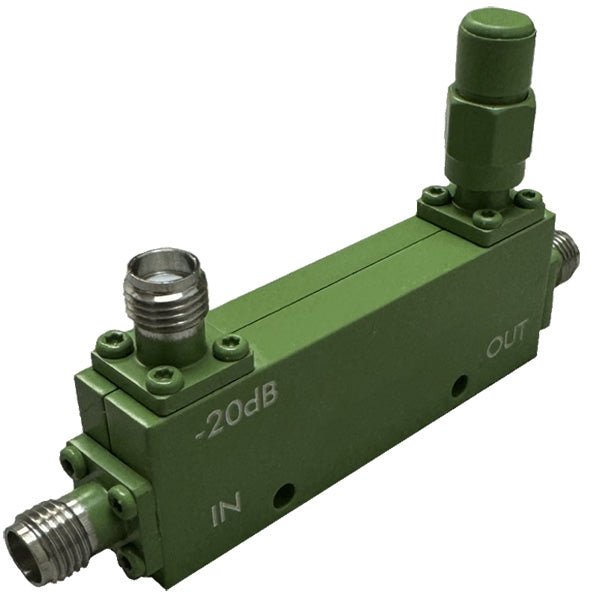

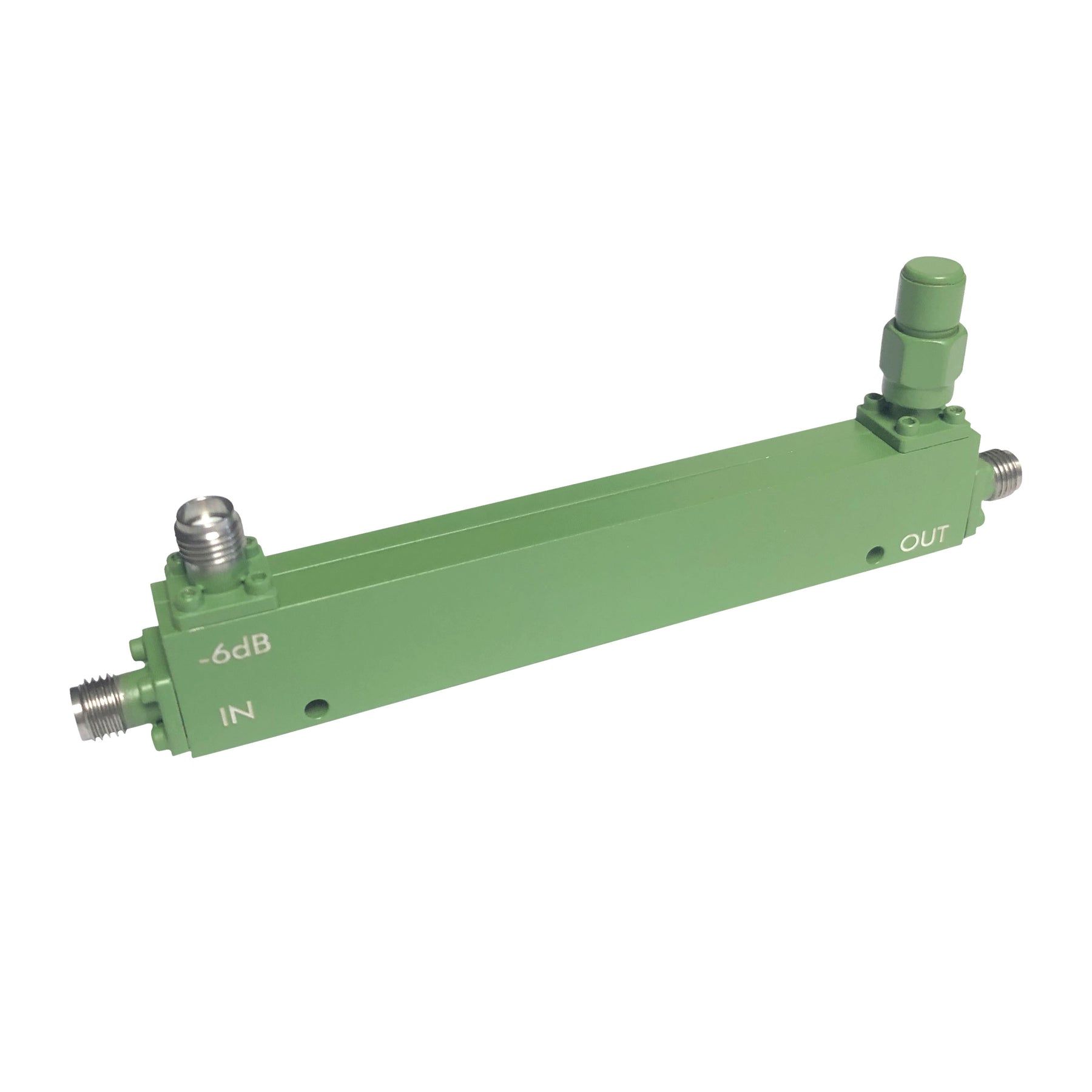

COU06B
Directional Coupler
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here

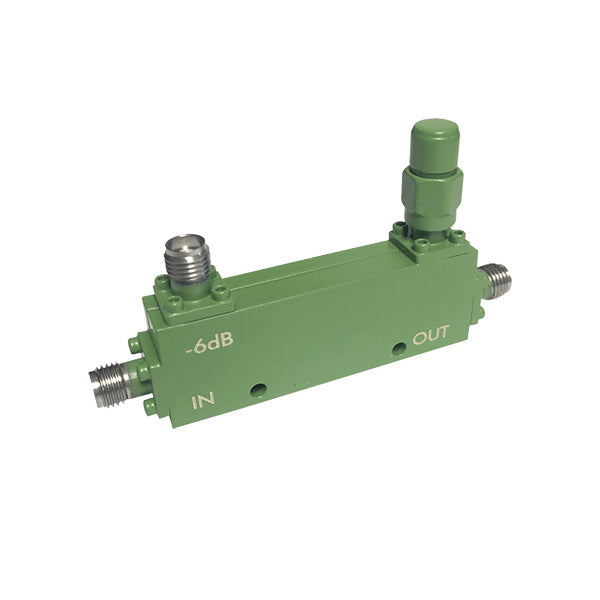

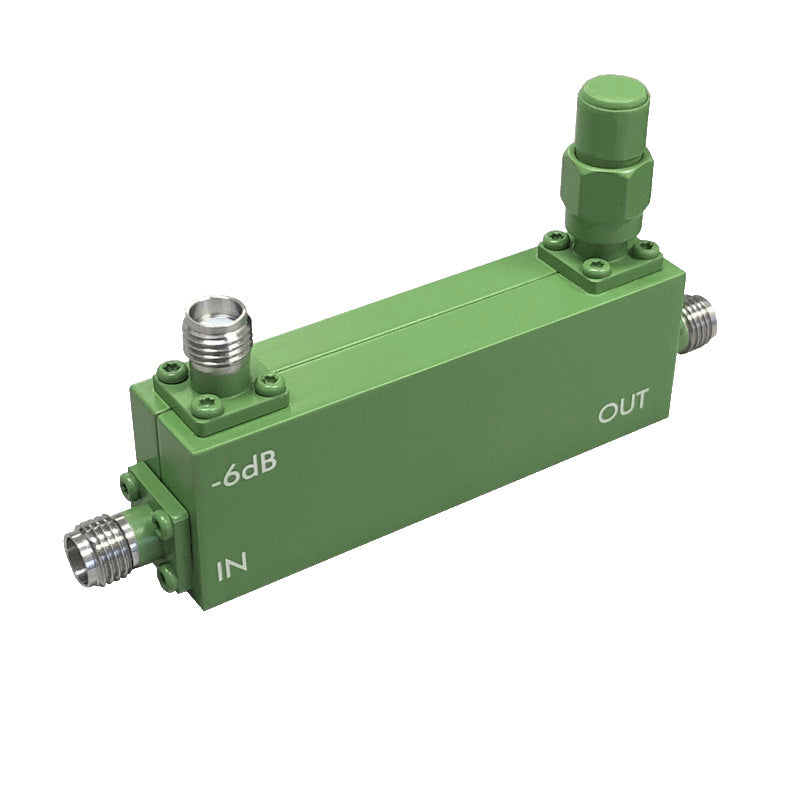

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 1.5 GHz |
| frequency | 0.5 - 2 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max. |
| insertion loss | 2.00 dB max. |
| isolation | 29 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 6 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 3 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 91.4 mm |
| product width | 15.2 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 6 GHz |
| frequency | 2 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.25:1 max. |
| insertion loss | 2.2 dB max. |
| isolation | 28.5 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 6.5 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 4 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 50.8 mm |
| product width | 17.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 16 GHz |
| frequency | 2 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.50:1 max. |
| insertion loss | 2.2 dB max. |
| isolation | 27.8 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 6.6 ± 0.3 dB |
| impedance | 50 ohms |
| power handling avg | 3 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 57.2 mm |
| product width | 18.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 7.7 GHz |
| frequency | 0.3 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max (300-6000MHz) 1.32:1 max (6000-8000MHz) |
| insertion loss | 1.7 dB max. |
| isolation | 35 dB min (300-8000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.2 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 152.4 mm |
| product width | 18.5 mm |

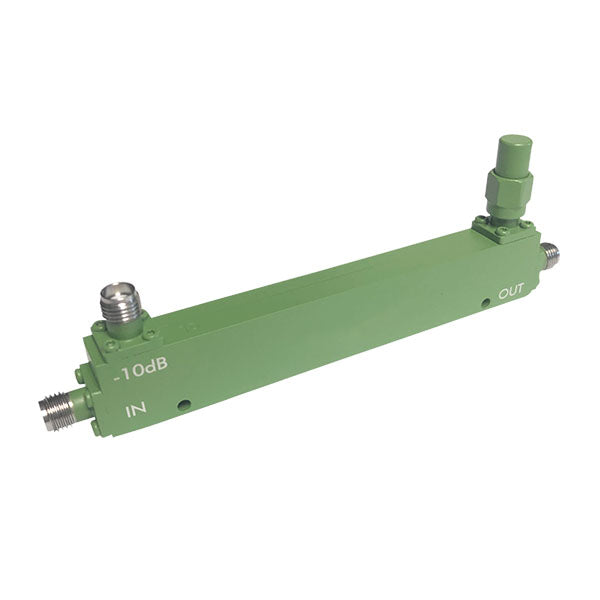

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 1.5 GHz |
| frequency | 0.5 - 2 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max. |
| insertion loss | 0.9 dB max. |
| isolation | 35 dB min (500-2000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 91.4 mm |
| product width | 15.2 mm |

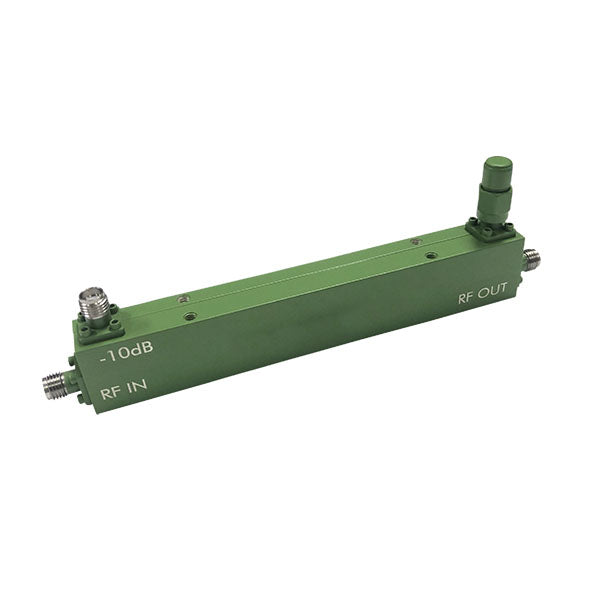

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 19.5 GHz |
| frequency | 0.5 - 20 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.67:1 max. |
| insertion loss | 2.1 dB max. |
| isolation | 25 dB min (500-20000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.2 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 111.8 mm |
| product width | 18.5 mm |

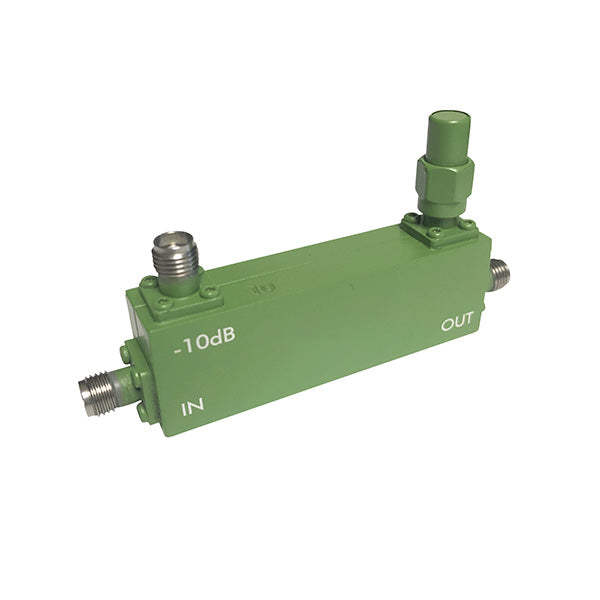

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 6 GHz |
| frequency | 2 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.25:1 max. |
| insertion loss | 1.00 dB max. |
| isolation | 32 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 50.8 mm |
| product width | 17.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 16 GHz |
| frequency | 2 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.50:1 max. |
| insertion loss | 1.6 dB max. |
| isolation | 27 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 57.2 mm |
| product width | 18.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 12 GHz |
| frequency | 6 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.43:1 max. |
| insertion loss | 1.05 dB max. |
| isolation | 25 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 10 ± 1.25 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 25.4 mm |
| product width | 15.2 mm |

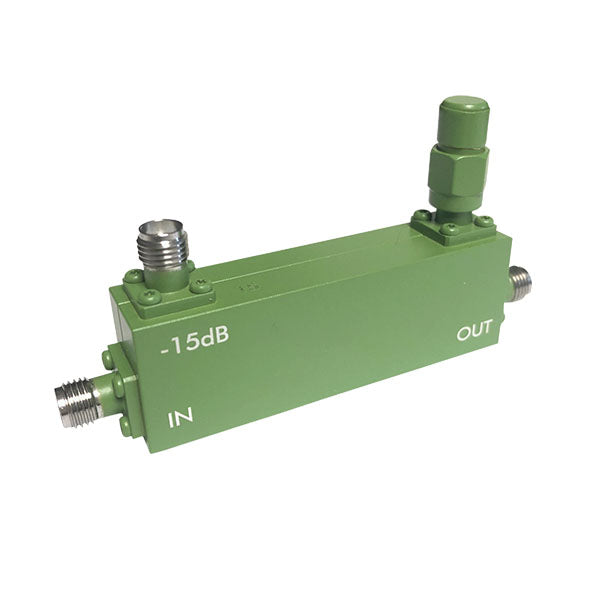

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 16 GHz |
| frequency | 2 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.50:1 max. |
| insertion loss | 1.4 dB max. |
| isolation | 32 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 15 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 57.2 mm |
| product width | 18.5 mm |

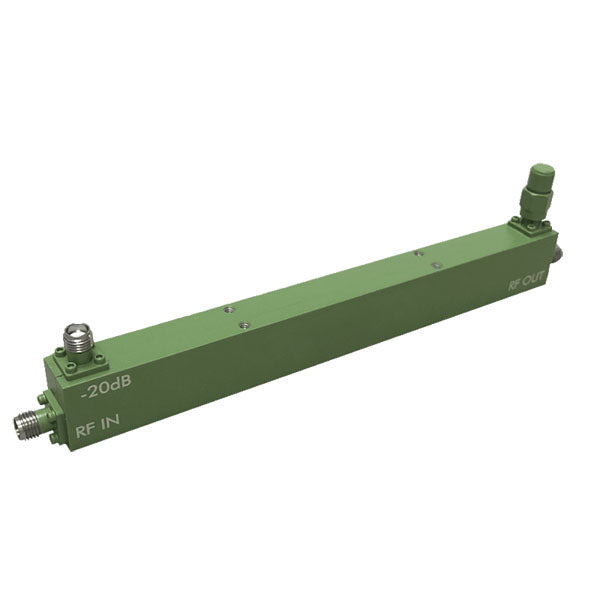

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 7.7 GHz |
| frequency | 0.3 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max (300-6000MHz) 1.32:1 max (6000-8000MHz) |
| insertion loss | 1.1 dB max. |
| isolation | 48 dB min (300-8000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.2 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 152.4 mm |
| product width | 18.5 mm |

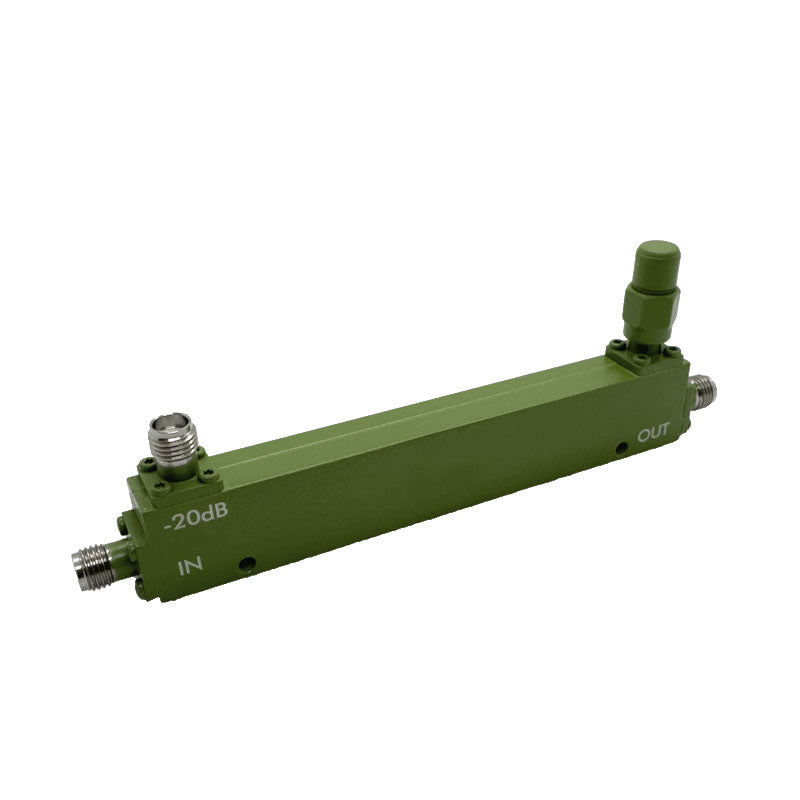

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 1.5 GHz |
| frequency | 0.5 - 2 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max. |
| insertion loss | 0.35 dB max. |
| isolation | 46 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 91.4 mm |
| product width | 15.2 mm |

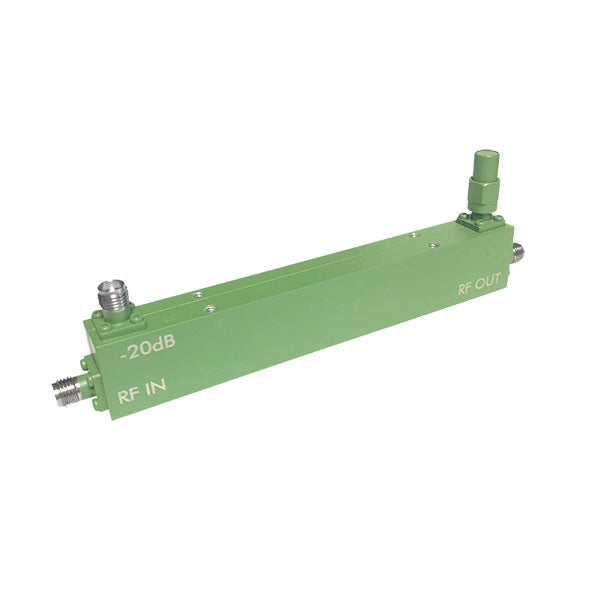

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 19.5 GHz |
| frequency | 0.5 - 20 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.58:1 max. |
| insertion loss | 1.7 dB max. |
| isolation | 37 dB min (500-20000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.2 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 111.8 mm |
| product width | 18.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 6 GHz |
| frequency | 2 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.25:1 max. |
| insertion loss | 0.45 dB max. |
| isolation | 42 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 50.8 mm |
| product width | 17.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 16 GHz |
| frequency | 2 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.50:1 max. |
| insertion loss | 1.3 dB max. |
| isolation | 37 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 57.2 mm |
| product width | 18.5 mm |

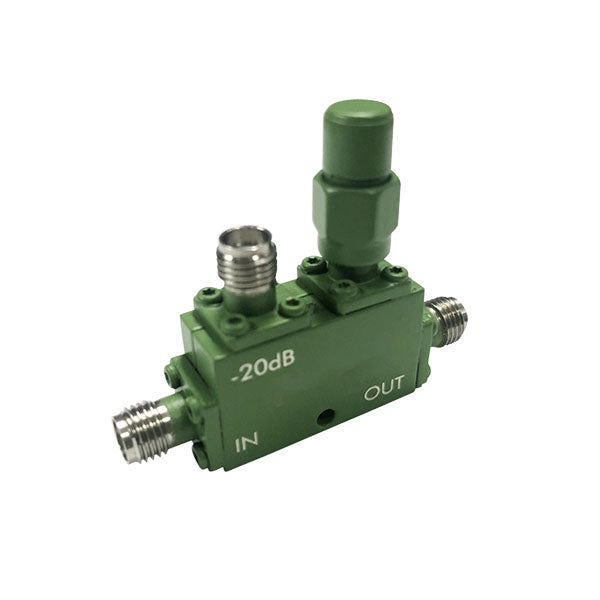

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 12 GHz |
| frequency | 6 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.43:1 max. |
| insertion loss | 0.65 dB max. |
| isolation | 36 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 20 ± 1.25 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 25.4 mm |
| product width | 15.2 mm |

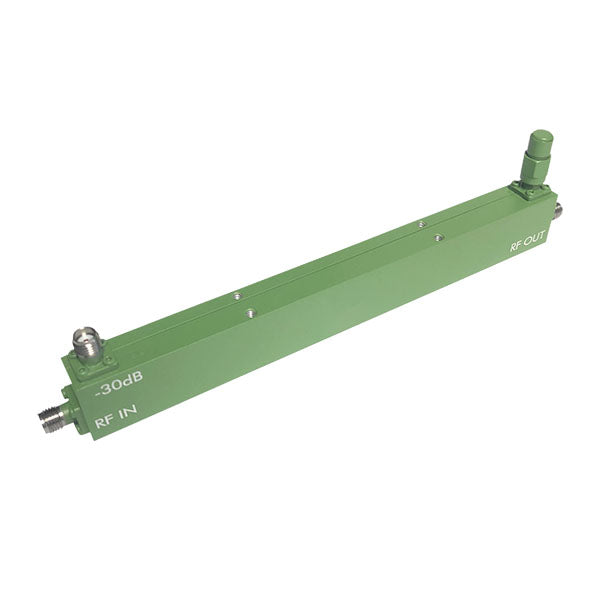

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 7.7 GHz |
| frequency | 0.3 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.38:1 max (300-6000MHz) 1.43:1 max (6000-8000MHz) |
| insertion loss | 1.0 dB max. |
| isolation | 55 dB min (300-8000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 1.2 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 152.4 mm |
| product width | 18.5 mm |
| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 1.5 GHz |
| frequency | 0.5 - 2 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.22:1 max. |
| insertion loss | 0.40 dB max. |
| isolation | 56 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 1.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 91.4 mm |
| product width | 15.2 mm |

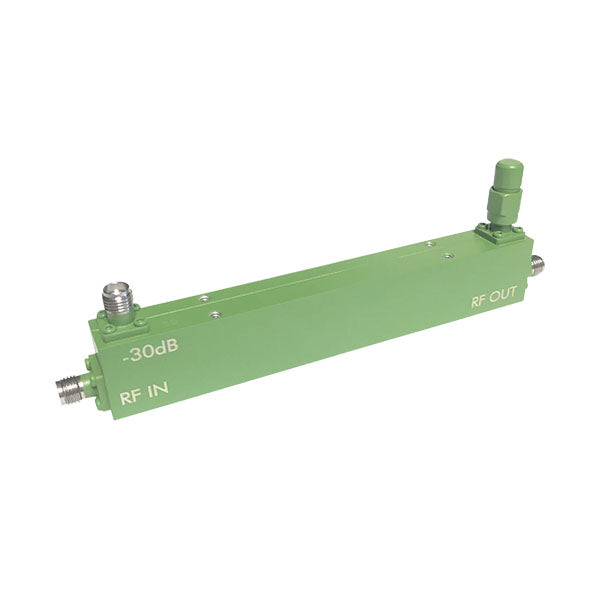

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 19.5 GHz |
| frequency | 0.5 - 20 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.58:1 max. |
| insertion loss | 1.7 dB max. |
| isolation | 43 dB min (500-20000MHz) |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 1.5 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 111.8 mm |
| product width | 18.5 mm |

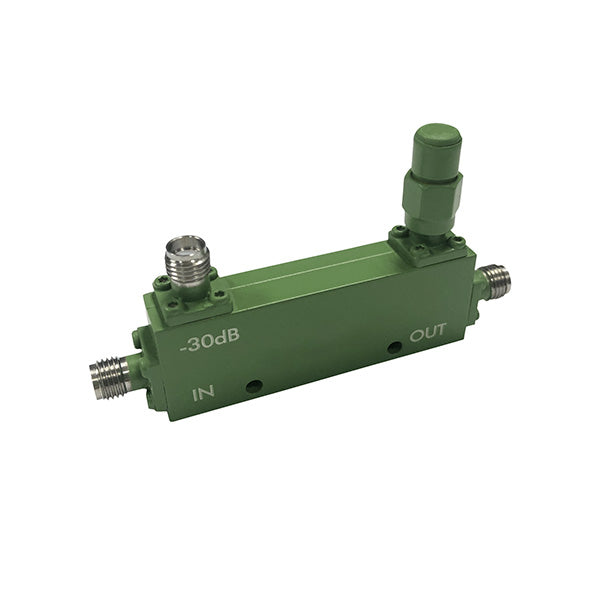

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 6 GHz |
| frequency | 2 - 8 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.25:1 max. |
| insertion loss | 0.50 dB max. |
| isolation | 53 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 2.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 50.8 mm |
| product width | 17.5 mm |

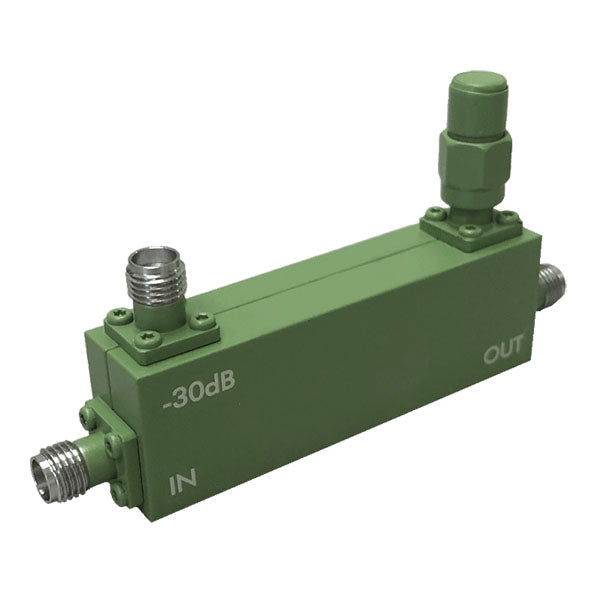

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 16 GHz |
| frequency | 2 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.50:1 max. |
| insertion loss | 0.9 dB max. |
| isolation | 47 dB typ. |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 2.5 dB |
| impedance | 50 ohms |
| power handling avg | 20 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 12.7 mm |
| product length | 57.2 mm |
| product width | 18.5 mm |

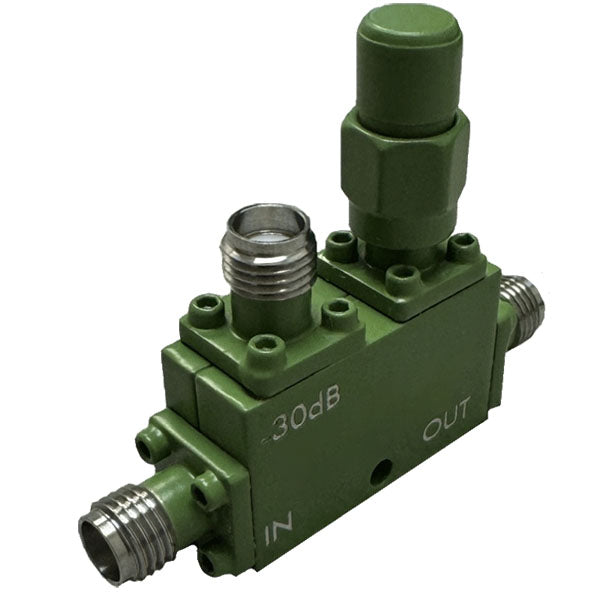

| KEY SPECIFICATIONS | |
|---|---|
| bandwith | 12 GHz |
| frequency | 6 - 18 GHz |
| noise figure | N/A |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| gain | N/A |
| gain ripple | N/A |
| input VSWR | 1.43:1 max. |
| insertion loss | 0.6 dB max. |
| isolation | 44 dB typ |
| ripple | N/A |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| coupling | 30 ± 2.0 dB |
| impedance | 50 ohms |
| power handling avg | 50 W max. |
| INTERFACE SPECIFICATIONS | |
|---|---|
| connectors type | SMA-F |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| indoor status | Yes |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 9.7 mm |
| product length | 25.4 mm |
| product width | 15.2 mm |
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 8525503035 |
| Country of Origin | - |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | - |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Total Aluminium Content | - |
| Aluminum Country of Smelt and Cast | - |
| Total Aluminium Value | - |
No
|
No
|
No
|
Norsat's in-house experts produce technical and professional industrial whitepapers.
View our instructional videos to get more information on satellite terminals, components, assembly and software.
Read Norsat's brochures and manuals to learn more about satellite knowledge to product-focused deep dives.
