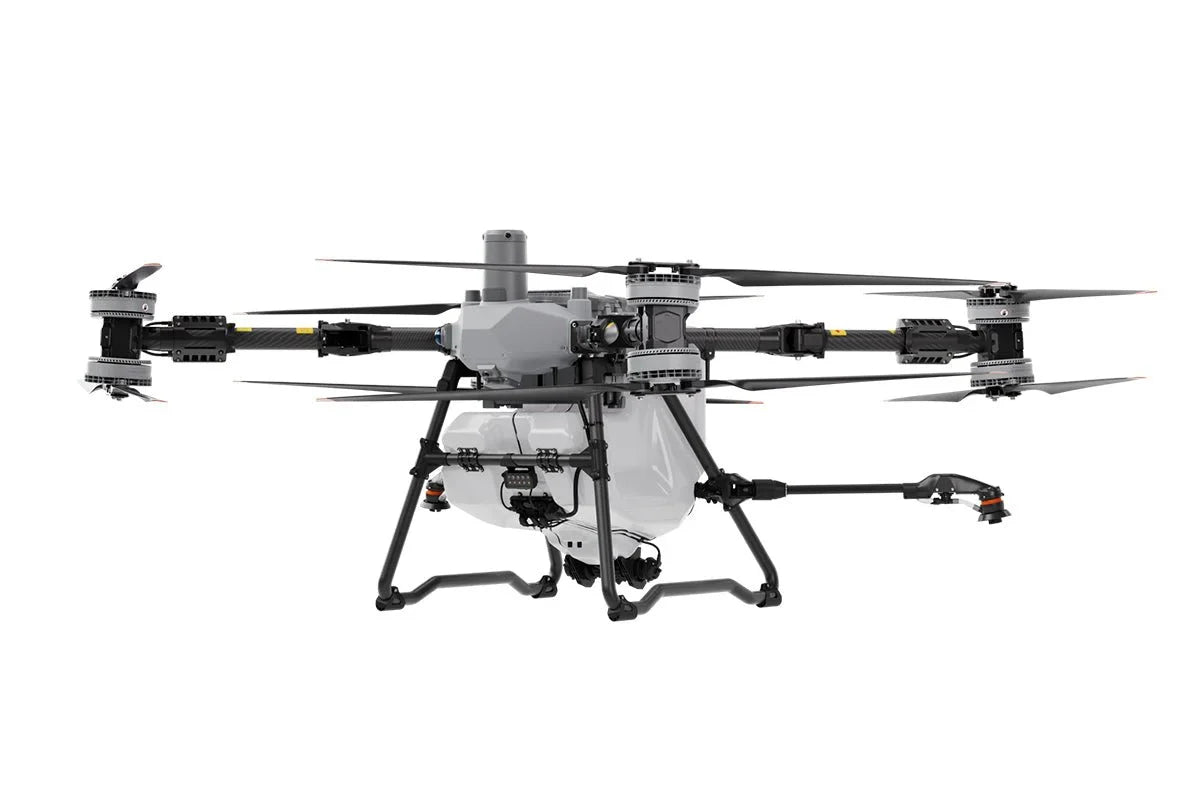

| GENERAL SPECS |
| Product Revision |
A |
| hovering accuracy range with GNSS |
RTK Enabled: ±10 cm (horizontal), ±10 cm (vertical); RTK not enabled:Horizontal ± 0.6 m, vertical ± 0.3 m |
| max configurable flight radius |
2 km |
| max takeoff weight spraying |
175 kg (standard with 2 nozzles) ;177 kg (optional with 4 nozzles) |
| max wheelbase diagonals |
2330 mm (diagonal) |
| max wind speed resistance |
<6 m/s |
| motor KV |
60 rpm/V |
| motor stator length |
155 mm |
| motor stator width |
16 mm |
| propeller dimensions |
1550 mm |
| propeller material |
Carbon Fiber Composite |
| propeller quantity |
8 pairs |
| sensing distance |
2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| sensing FOV downward radar |
Left and Right ± 12.5°, Front and Back ± 22.5° |
| sensing FOV FPV camera |
Horizontal ± 86°, Vertical 108° |
| sensing FOV front radar |
Horizontal 360°, Vertical ± 45° |
| sensing FOV laser radar |
Vertical 272°, Horizontal 60° |
| sensing FOV quad vission system radar |
Horizontal 360°, Vertical 180° |
| sensing FOV rear radar |
Left and Right ± 45°, Front and Back ± 45° |
| sensing measurement range |
≤ 60 m |
| sensing obstacle avoidance height |
≥ 1.5 m |
| sensing operating environment requirements |
Adequate light and discernible surroundings |
| sensing operating temperature |
0 °C to 40 °C |
| sensing radar EIRP |
< 20 dBm (NCC / MIC / KC / CE / FCC) |
| sensing safe bypass speed |
≤ 13.8 m/s |

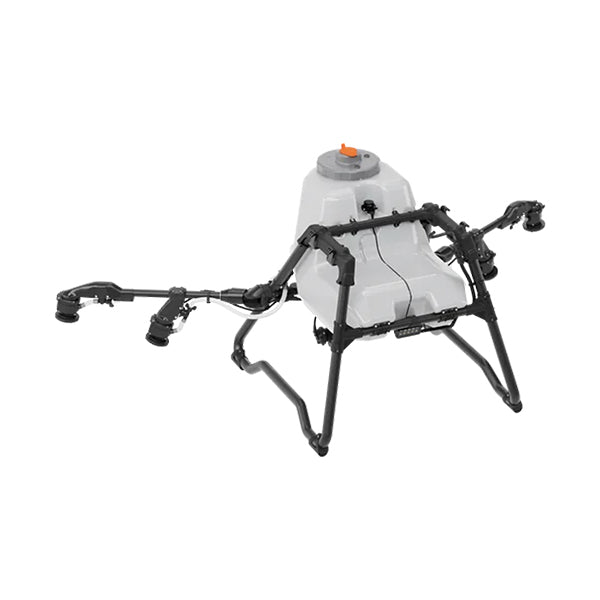

| spraying delivery pumps quantity |
2 |
| spraying delivery pumps type |
Impeller Pump (Magnetic Drive) |
| spraying deliver pumps maximum flow rate |
30 L/min (Standard 2 nozzles), 40 L/min (Optional 4 nozzles) |
| spraying height |
810 mm (spray rod folded), 810 mm (spray rod unfolded) |
| spraying length |
880 mm (spray rod folded), 1020 mm (spray rod unfolded) |
| spraying model |
LS100 |
| spraying sprinkers quantity |
2 (Standard) / 4 (Optional) |
| spraying sprinklers droplet size |
50 - 500 μm |
| spraying sprinklers effective spray width |
5 - 13 m |
| spraying tank operating payload |
100 kg |
| spraying weight |
75 kg (standard with 2 nozzles) ; 77 kg (optional with 4 nozzles) |
| spraying width |
870 mm (spray rod folded), 1930 mm (spray rod unfolded) |
| spray tank material |
HDPE |
| spray tank volume |
100 L |
| PHYSICAL SPECS |
| heightframe arm unfolded |
975 mm( propellers unfolded) , 975 mm (propellers folded) |
| height frame arm folded |
975 mm (propellers folded) |
| length frame arm folded |
1105 mm (propellers folded) |
| length frame arm unfolded |
3200 mm (propellers unfolded) , 1820 mm (propellers folded) |
| width frame arm folded |
1265 mm ( propellers folded) |
| width frame arm unfolded |
3224 mm ( propellers unfolded) , 1840 mm ( propellers folded) |
