DJI-AG-T25-PACK
DJI Agras T25 Package
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
In the Box:

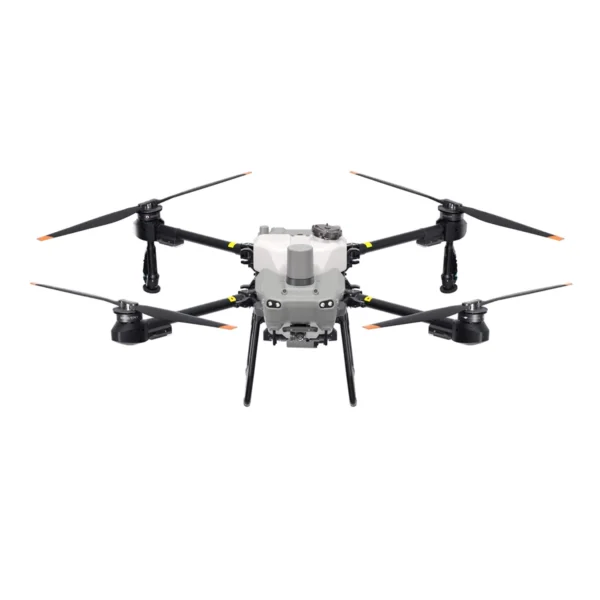

AGRAS T25 x 1
DB8000 Intelligent Flight Battery x 3

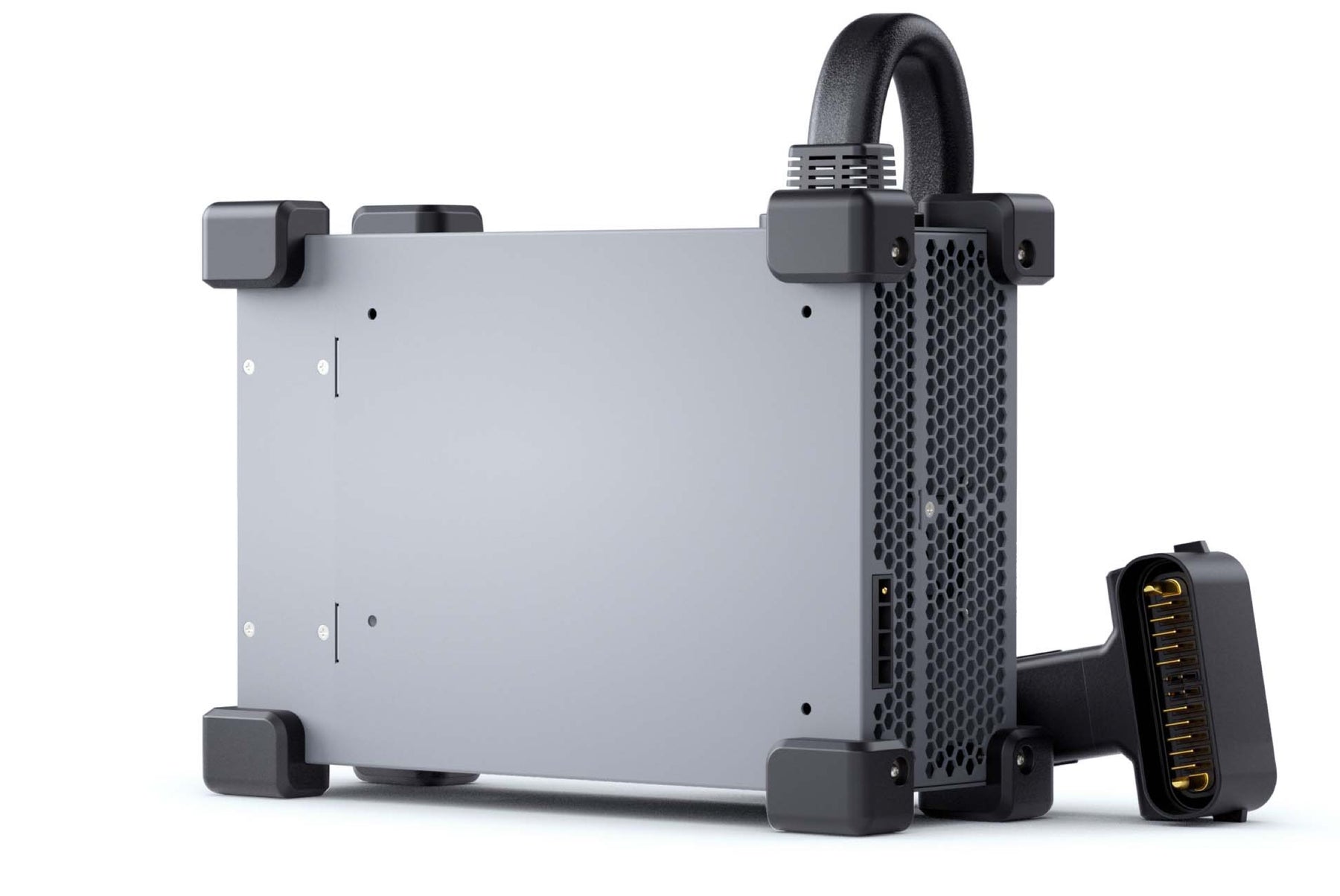

C8000 Intelligent Battery Station x 1
| GENERAL SPECS | |
|---|---|
| Product Revision | A |
| hovering accuracy range with GNSS | RTK enabled:Horizontal: ±10 cm, Vertical: ±10 cm ; RTK disabled:Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm) |
| max configurable flight radius | 2 km |
| max wheelbase diagonals | 1925 mm |
| max wind speed resistance | <6 m/s |
| motor KV | 59 rpm/V |
| motor power | 4600 W/rotor |
| motor stator length | 100 mm |
| motor stator width | 28 mm |
| propeller diameter | 1270 mm |
| propeller dimensions | 1270 mm |
| propeller material | Nylon carbon fiber filament |
| propeller quantity | 4 pairs |
| sensing distance | 2.5m (Distance between the drone and obstacle after braking and stable hovering) |
| sensing FOV front radar | horizontal 360°, vertical ±45°, upward ±45° (cone) |
| sensing FOV rear radar | vertical 360°, horizontal ±45° |
| sensing obstacle avoidance height | ≥ 1.5 m |
| sensing radar model | RD241608RF (forward phased array radar) ; RD241608RB (rear phased array radar) |
| sensing radar terrain flow altitude | 1-50 m |
| sensing radar terrain flow max slope | 50° |
| sensing radar terrain flow stabilization working range | 1.5-30 m |
| sensing safe bypass speed | ≤ 10 m/s |
| PHYSICAL SPECS | |
| heightframe arm unfolded | 780 mm (propellers folded) , 780 mm (propellers unfolded) |
| height frame arm folded | 820 mm (propellers folded) |
| length frame arm folded | 1050 mm (propellers folded) |
| length frame arm unfolded | 2585 mm (propellers unfolded) , 1475 mm (propellers folded) |
| weight without battery | 25.4 kg |
| weight with battery | 32 kg |
| width frame arm folded | 690 mm (propellers folded) |
| width frame arm unfolded | 2675 mm (propellers folded), 1540 (propellers unfolded) |
| REMOTE SPECS | |
|---|---|
| model | RM700B |
| REMOTE CONTROLLER BATTERY SPECS | |
| BATTERY SPECS | |
|---|---|
| DB800 capacity | 15500 mAh |
| DB800 voltage | 52.22 V |
| DB800 weight | Approx. 6.6 kg |
| HUB SPECS | |
|---|---|
| charging time | Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| height | 230 mm |
| input voltage | 100-240 VAC |
| length | 300 mm |
| model | C8000 |
| output current | 100A max |
| output voltage | 59.92V |
| protection functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| sensing | AC wire protection, power wire protection, and charge connector protection |
| weight | 11.5 kg |
| width | 280mm |
