DJI Agras T50 package (standard)
DJI Agras T50 package (standard)
DJI Agras T50 package (standard)
DJI Agras T50 package (standard)
DJI Agras T50 package (standard)
DJI Agras T50 package (standard)

DJI-AG-T50-PACK-PRO

DJI Agras T50 package (standard)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



In the Box:

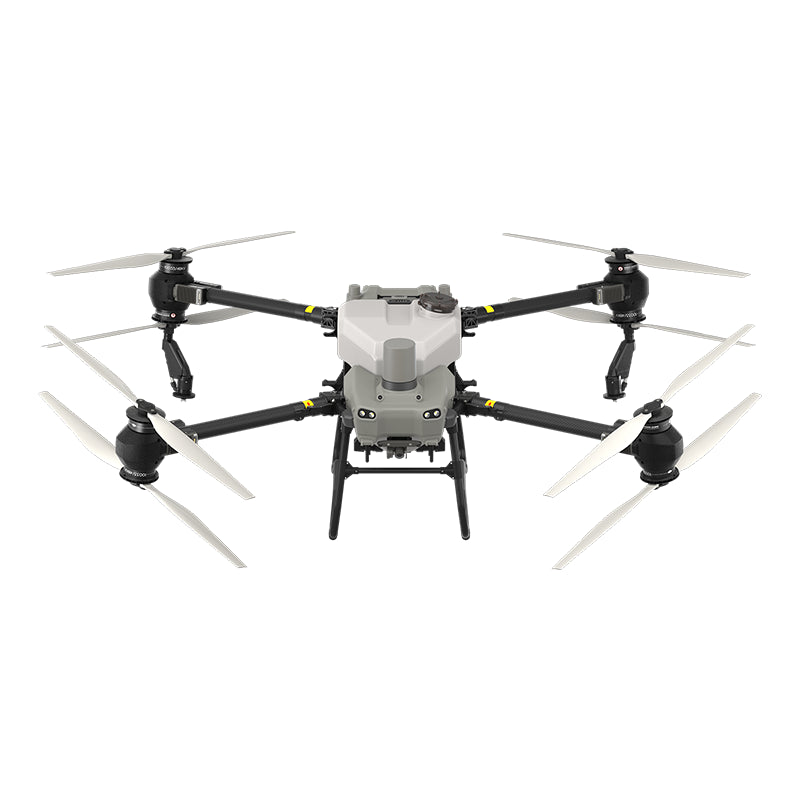

AGRAS T50 V2 x 1

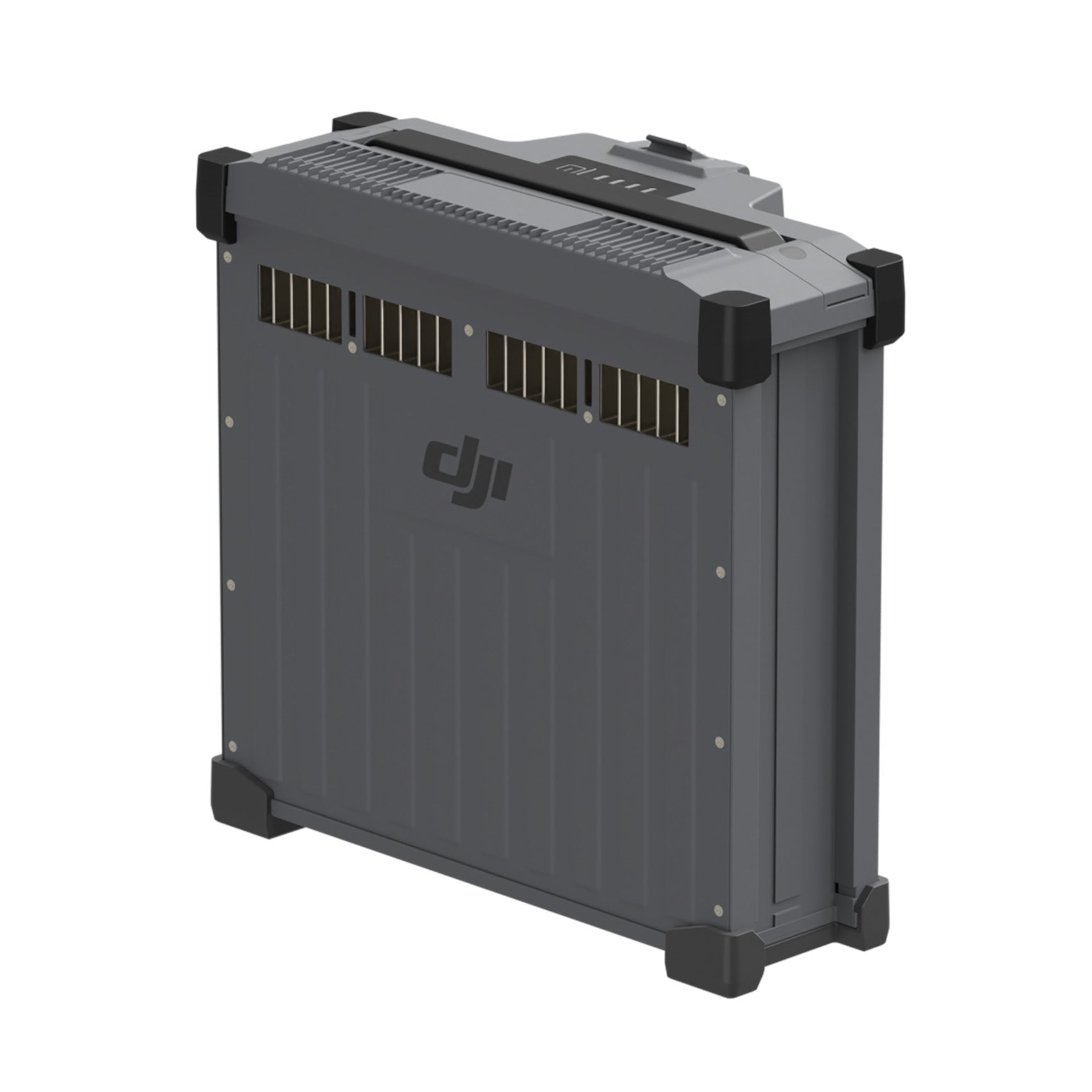

DB1560 Intelligent Flight Battery(Oversea) x 3

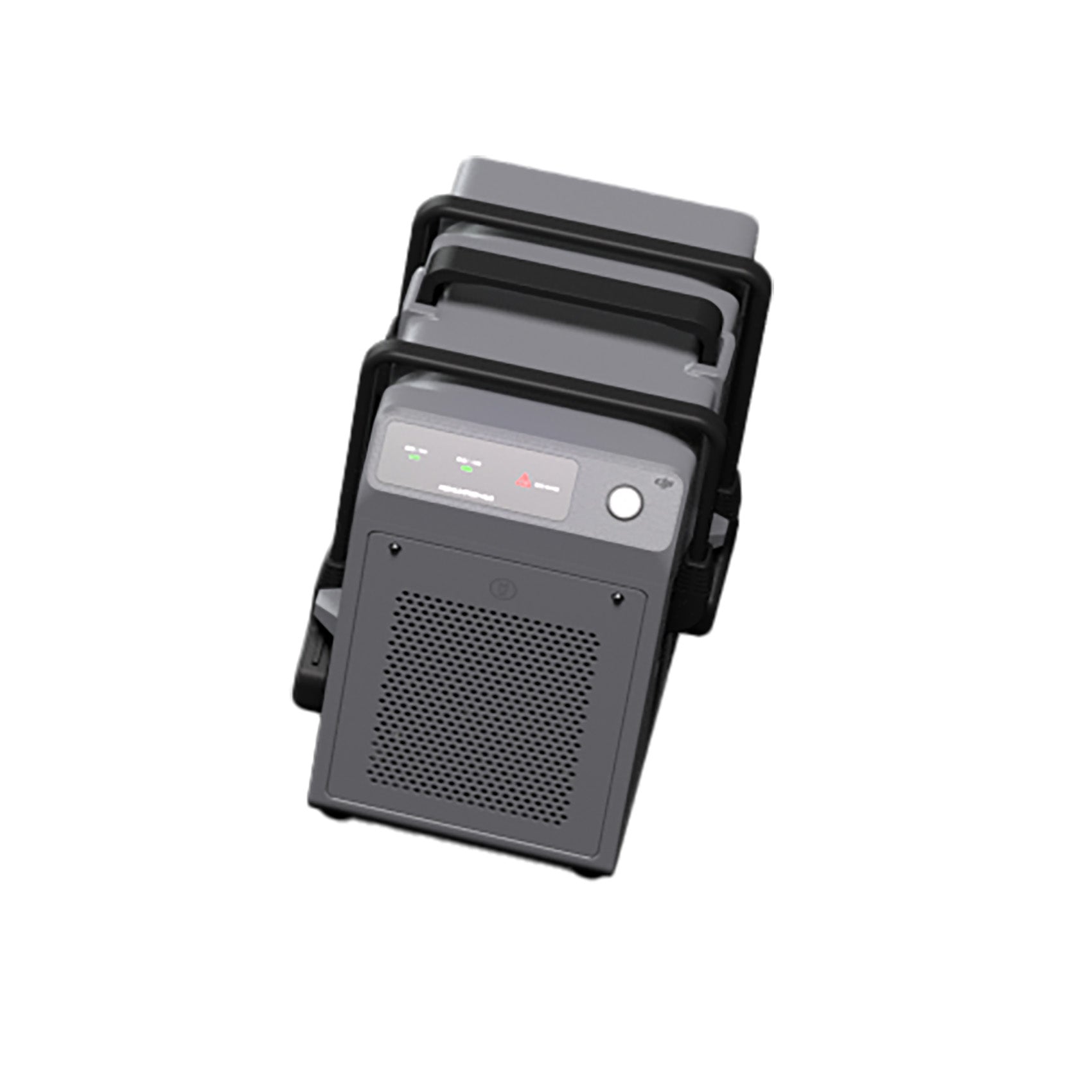

C8000 Intelligent Battery Station x 1

AIRCRAFT

GENERAL SPECS
Product Revision A
hovering accuracy range with GNSS RTK enabled:Horizontal: ±10 cm, Vertical: ±10 cm ; RTK disabled:Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
max configurable flight radius 2 km
max takeoff weight spraying  92 kg
max wheelbase diagonals 2200 mm
max wind speed resistance <6 m/s
motor KV 48 rpm/V
motor power 4000 W/rotor
motor stator length 100 mm
motor stator width 33 mm
propeller diameter 1375 mm
propeller dimensions 1371.6 mm
propeller material Nylon carbon fiber filament
propeller quantity 8 pairs
sensing distance 2.5m (Distance between the drone and obstacle after braking and stable hovering)
sensing FOV front radar horizontal 360°, vertical ±45°, upward ±45° (cone)
sensing FOV rear radar vertical 360°, horizontal ±45°
sensing obstacle avoidance height ≥ 1.5 m
sensing radar model RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)
sensing radar terrain flow altitude 1-50 m
sensing radar terrain flow max slope 50°
sensing radar terrain flow stabilization working range 1.5-30 m
sensing safe bypass speed ≤ 10 m/s
PHYSICAL SPECS
heightframe arm unfolded 820 mm (propellers folded) , 820 mm (propellers unfolded)
height frame arm folded 900 mm (propellers folded)
length frame arm folded 1115 mm (propellers folded)
length frame arm unfolded 2800 mm (propellers unfolded) , 1590 mm (propellers folded)
weight without battery 39.9 kg
weight with battery 52 kg
width frame arm folded 750 mm (propellers folded)
width frame arm unfolded 1900 mm (propellers folded), 3085 (propellers unfolded)

REMOTE CONTROLLER

REMOTE SPECS
model RM700B
REMOTE CONTROLLER BATTERY SPECS

BATTERY SPECS

BATTERY SPECS
DB1560 capacity 30000 mAh
DB1560 voltage 52.22 V
DB1560 weight Approx. 12.1 kg

CHARGING HUB

HUB SPECS
charging time Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)
height 230 mm
input voltage 100-240 VAC
length 300 mm
model C8000
output current 100A max
output voltage 59.92V
protection functions Over-voltage, over-charge, under-voltage and over-temperature protection.
sensing AC wire protection, power wire protection, and charge connector protection
weight 11.5 kg
width 280mm
