DJI Agras T55 package 1050
DJI Agras T55 package 1050
DJI Agras T55 package 1050
DJI Agras T55 package 1050
DJI Agras T55 package 1050
DJI Agras T55 package 1050

DJI-AG-T55-PACK-1050

DJI Agras T55 package 1050

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



In the Box:

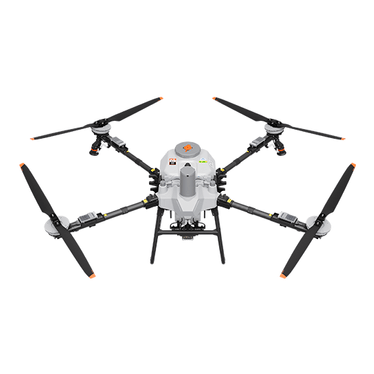

AGRAS T55 (Overseas V2) x 1

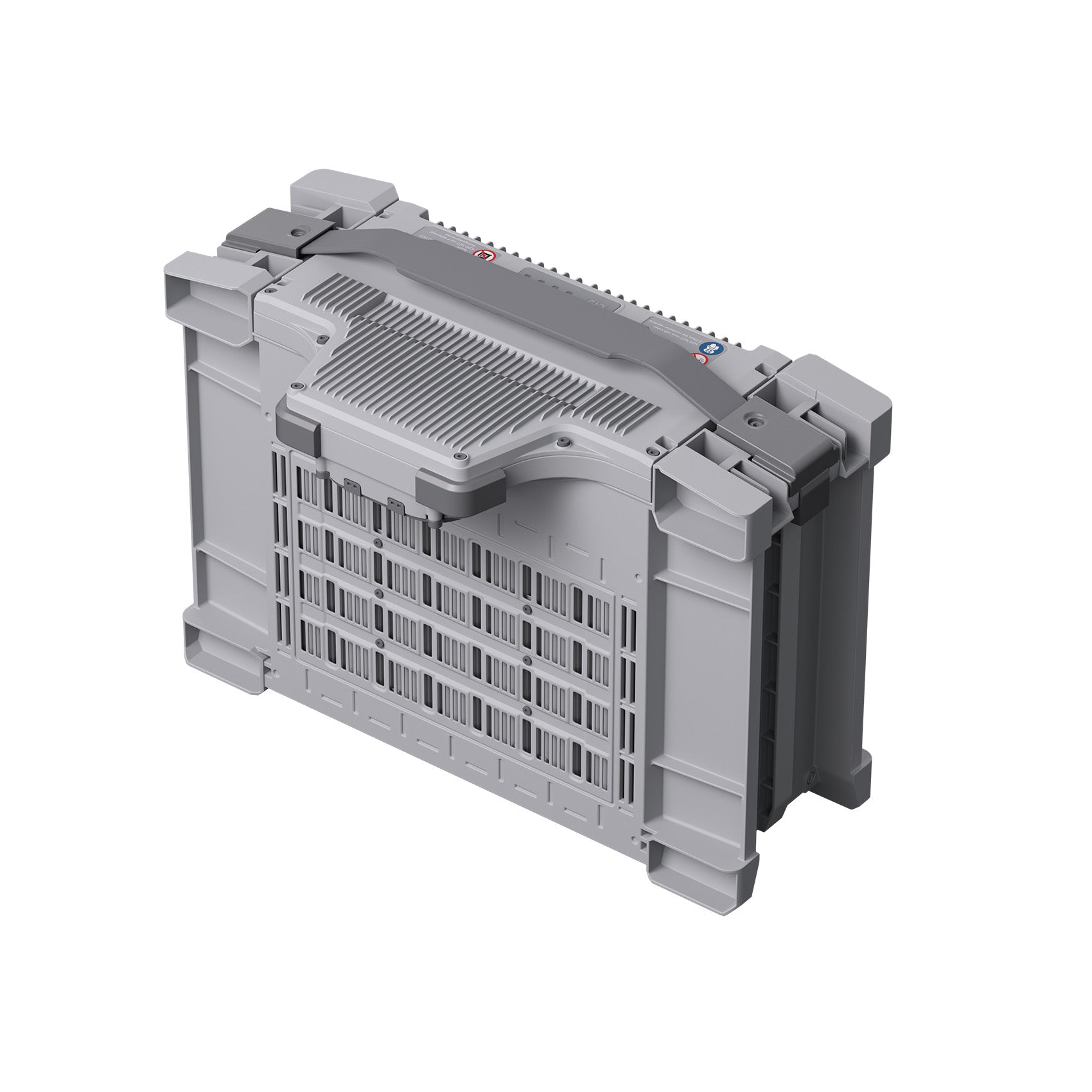

DB1050 Intelligent Flight Battery x 3

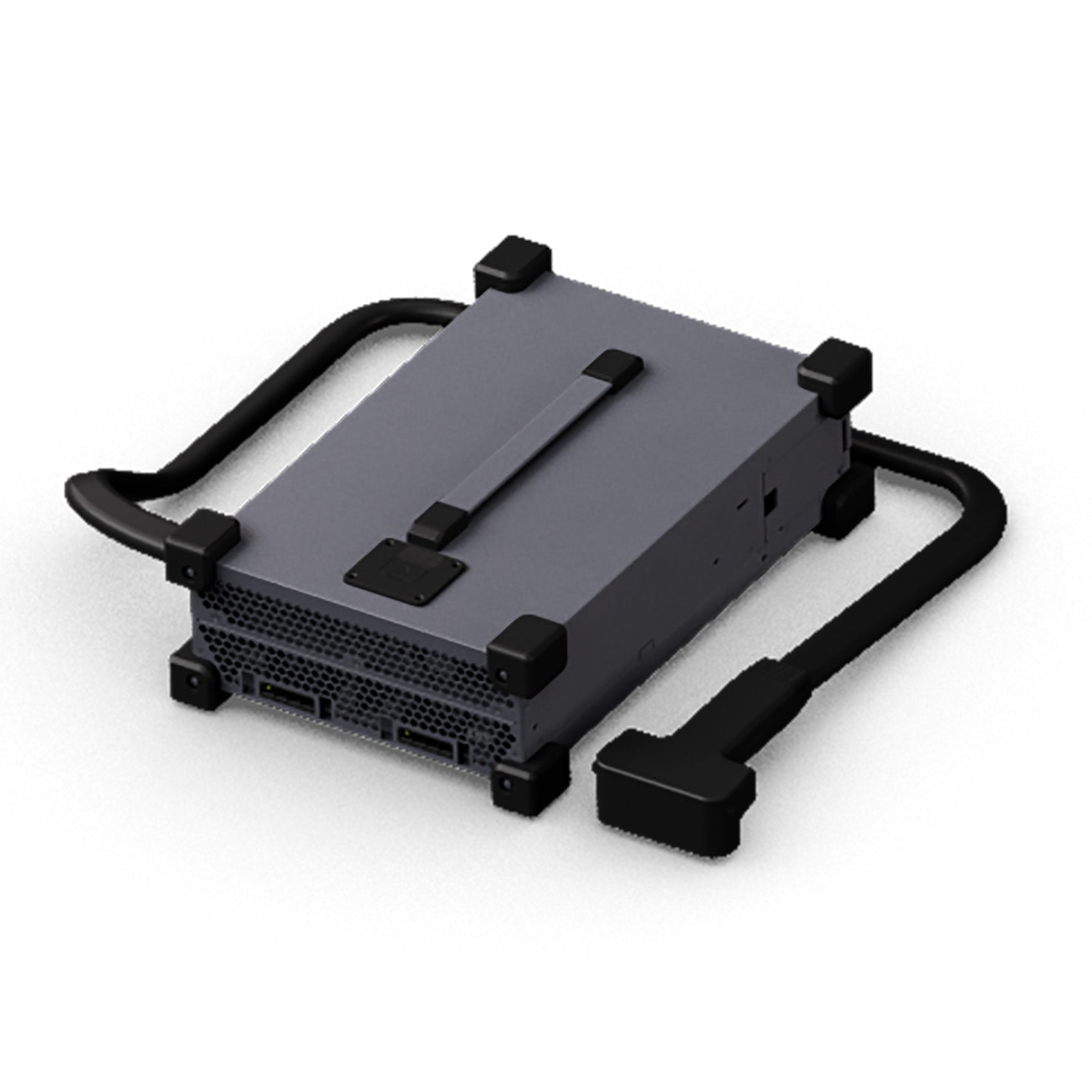

C7000 Intelligent Power Supply (EMC) x 1

AIRCRAFT

GENERAL SPECS
Product Revision A
sensing distance 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover)
sensing FOV downward radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV FPV camera 86° horizontal, 155° vertical
sensing FOV front radar horizontal 360°, vertical ± 45°
sensing FOV rear radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV top radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV tri-vission system horizontal 360°, vertical 180°
sensing measurement range 60 m
sensing obstacle avoidance height ≥ 1.5 m
sensing operating environment requirements Normal light intensity, rich Scene texture features, and no dirt.
sensing operating temperature 0° to 40° C (32° to 104° F)
sensing power consumption downward radar 3.5 W (peaking)
sensing power consumption front radar 36 W (peaking)
sensing power consumption rear radar 3.5 W (peaking)
sensing radar EIRP < 20 dBm (NCC / KC / CE / FCC) ; < 13 dBm (MIC)
sensing safe bypass speed ≤ 13.8 m/s

REMOTE CONTROLLER

REMOTE SPECS
model TKPL 2
REMOTE CONTROLLER BATTERY SPECS

BATTERY SPECS

BATTERY SPECS
DB1050 capacity 20000 mAh
DB1050 voltage 52.5 V
DB1050 weight 11.7 ± 0.3 kg

CHARGING HUB

HUB SPECS
charging time 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge)
compatible battery DB1050 / DB1580 / DB2160 Intelligent Flight Battery
height 80 mm
input voltage Single-phase 220 - 240 V ; Three-phase 380 - 480 V
length 460 mm
model CSX711-7000
operating temperature -20° to 40° C (-4° to 104° F)
output channels 1
output current Single-phase 40 A ; Three-phase, 140 A
output voltage 50 - 62 V
protection functions Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions
rated power 7000 W (three-phase 380 V input) ; 2000 W (single-phase 220 V input)
weight 8.5 kg
width 160 mm
