DJI-AG-T55-PACK-1580

DJI Agras T55 package 1580

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

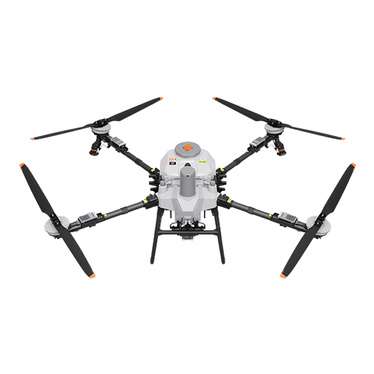

In the Box: AGRAS T55 (Overseas V2) x 1
DB1580 Intelligent Flight Battery(PTL) x 3
C12000 Intelligent Power Supply x 1

AIRCRAFT

GENERAL SPECS
Product Revision A
sensing distance 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover)
sensing FOV downward radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV FPV camera 86° horizontal, 155° vertical
sensing FOV front radar horizontal 360°, vertical ± 45°
sensing FOV rear radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV top radar Left and Right ± 45°, Front and Back ± 45°
sensing FOV tri-vission system horizontal 360°, vertical 180°
sensing measurement range 60 m
sensing obstacle avoidance height ≥ 1.5 m
sensing operating environment requirements Normal light intensity, rich Scene texture features, and no dirt.
sensing operating temperature 0° to 40° C (32° to 104° F)
sensing power consumption downward radar 3.5 W (peaking)
sensing power consumption front radar 36 W (peaking)
sensing power consumption rear radar 3.5 W (peaking)
sensing radar EIRP < 20 dBm (NCC / KC / CE / FCC) ; < 13 dBm (MIC)
sensing safe bypass speed ≤ 13.8 m/s

REMOTE CONTROLLER

REMOTE SPECS
model TKPL 2
REMOTE CONTROLLER BATTERY SPECS

BATTERY SPECS

BATTERY SPECS

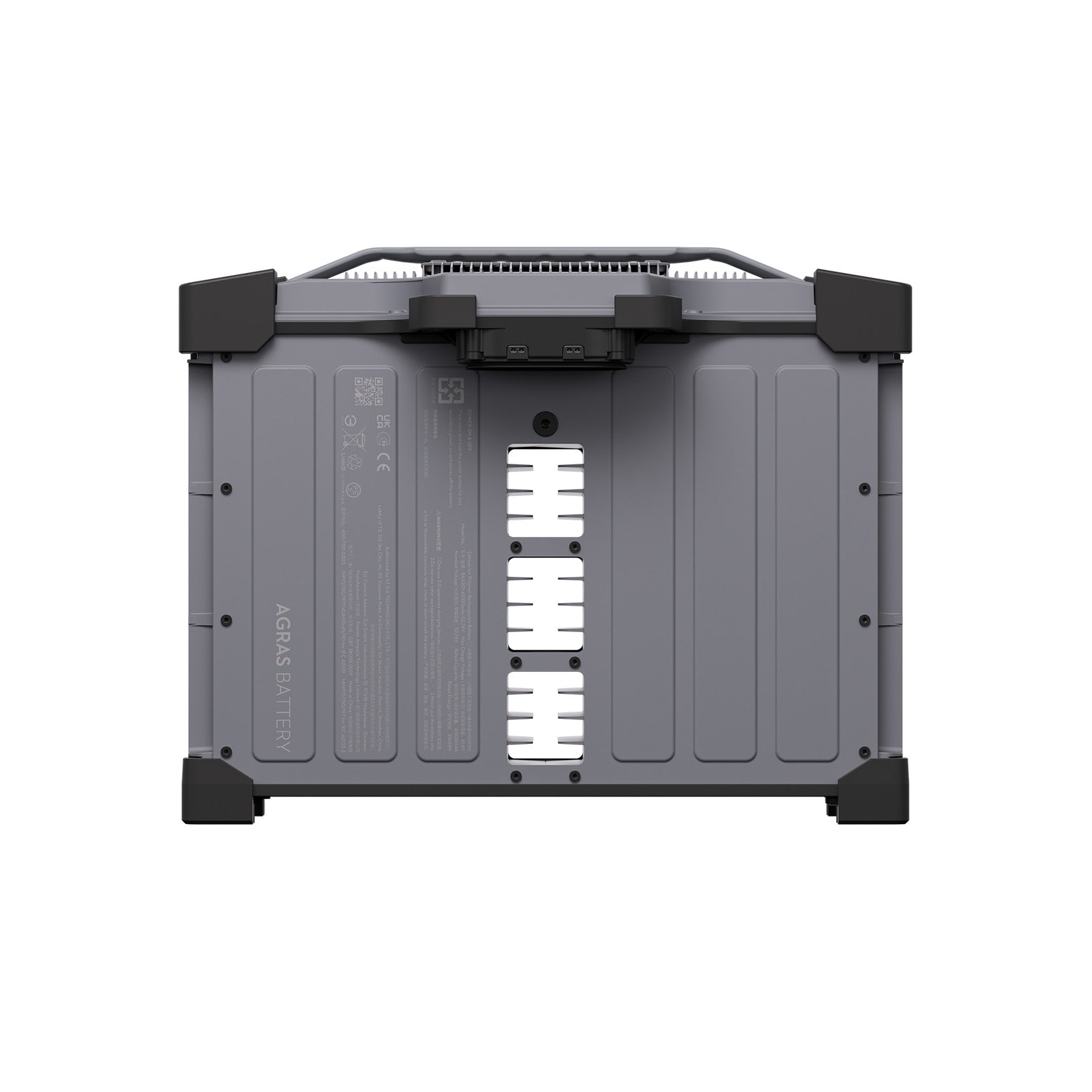

DB1580 capacity 30000 mAh
DB1580 voltage 52 V
DB1580 weight 11.7 ± 0.3 kg

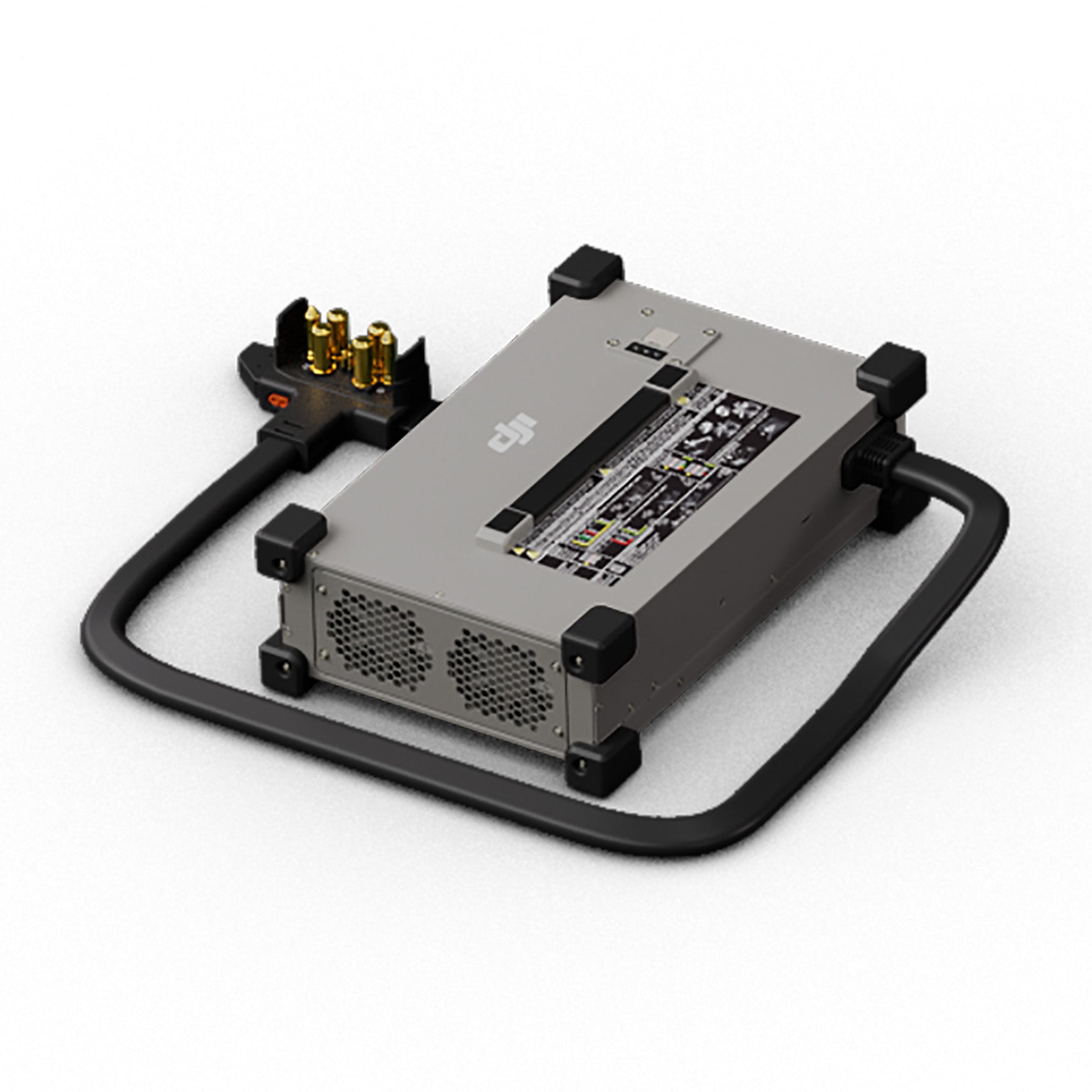

CHARGING HUB

HUB SPECS
charging time 7 - 8 mins (DB1580 Intelligent Flight Battery, 30% - 95% charge) ; 8 - 9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge)
compatible battery DB1580 / DB2160 Intelligent Flight Battery
height 107 mm
input voltage Three-phase AC input: 175 - 520 V ; Single-phase AC input: 200 - 264 V
length 456 mm
model C12000
operating temperature 0° to 40° C
output channels 1
output current 194 A
output voltage 62 V
protection functions Over-voltage, over-charge, under-voltage and over-temperature protection.
rated power 12000 W (three-phase 380 V input)3000 W (single-phase 220 V input)
weight 13.13 kg
width 291 mm
