DJI Agras T70P Package
DJI Agras T70P Package
DJI Agras T70P Package
DJI Agras T70P Package
DJI Agras T70P Package
DJI Agras T70P Package

DJI-AG-T70-P-PACK

DJI Agras T70P Package

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



In the Box:

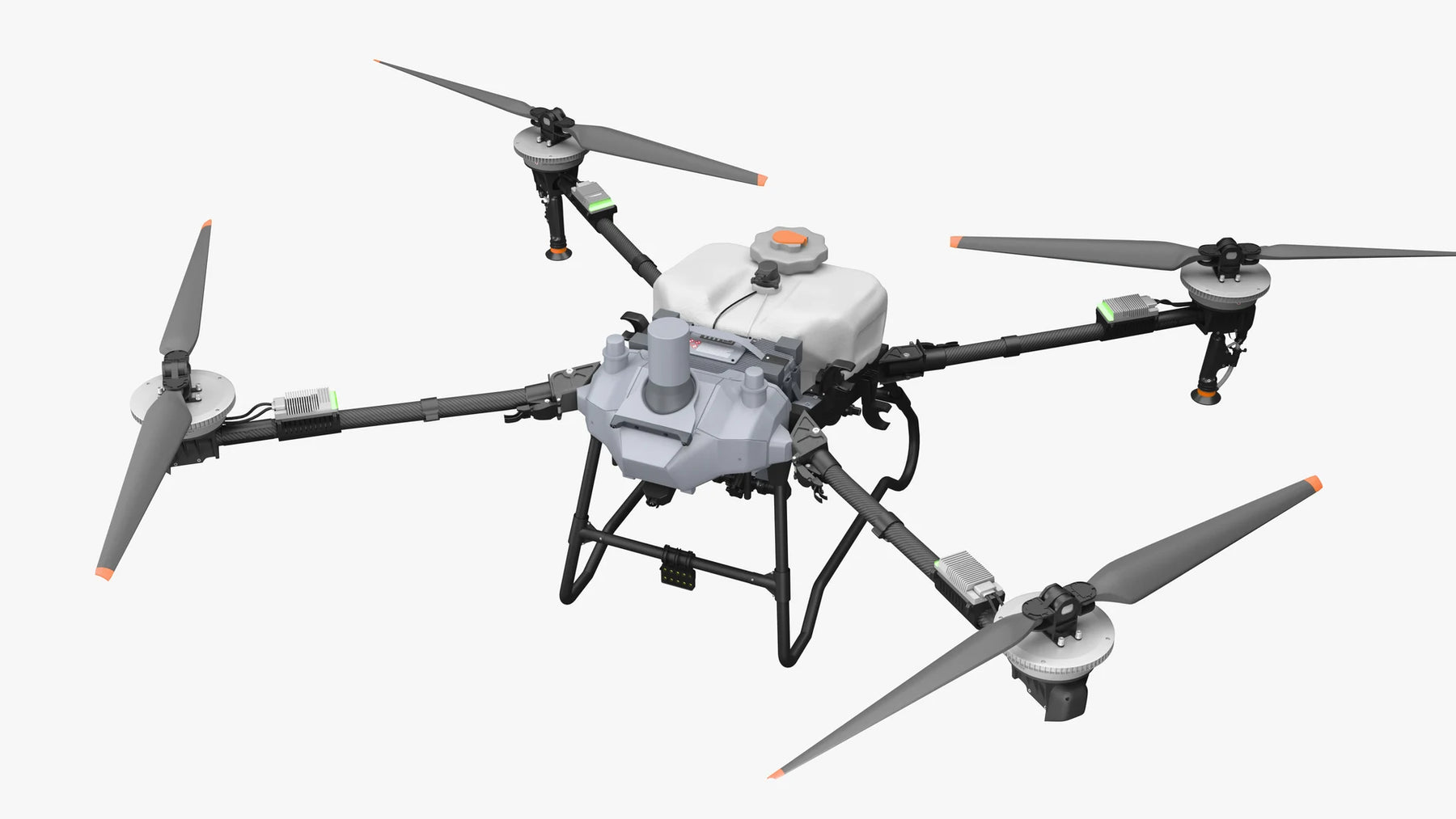

T70P x 1

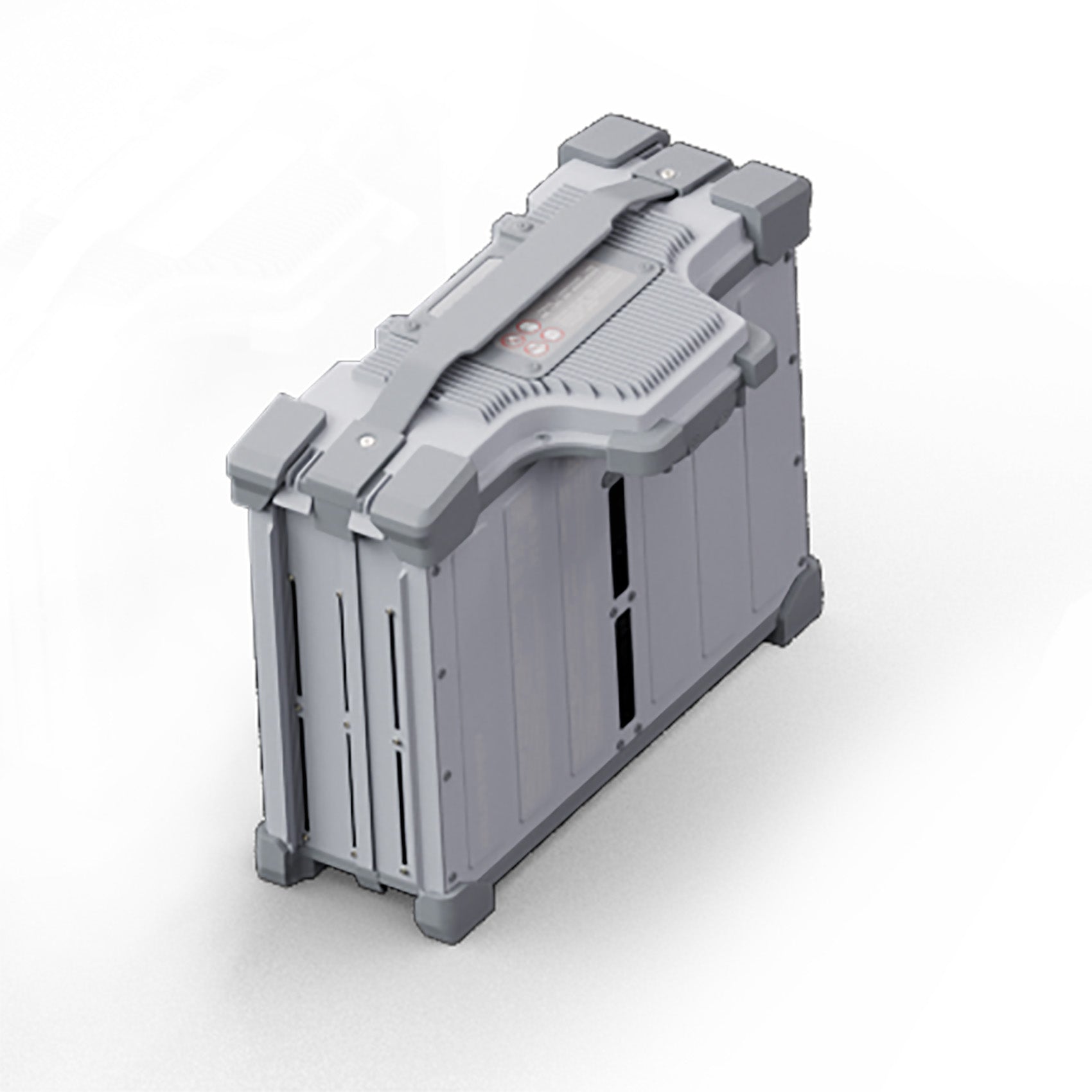

DB2160 Intelligent Flight Battery (Global) x 3

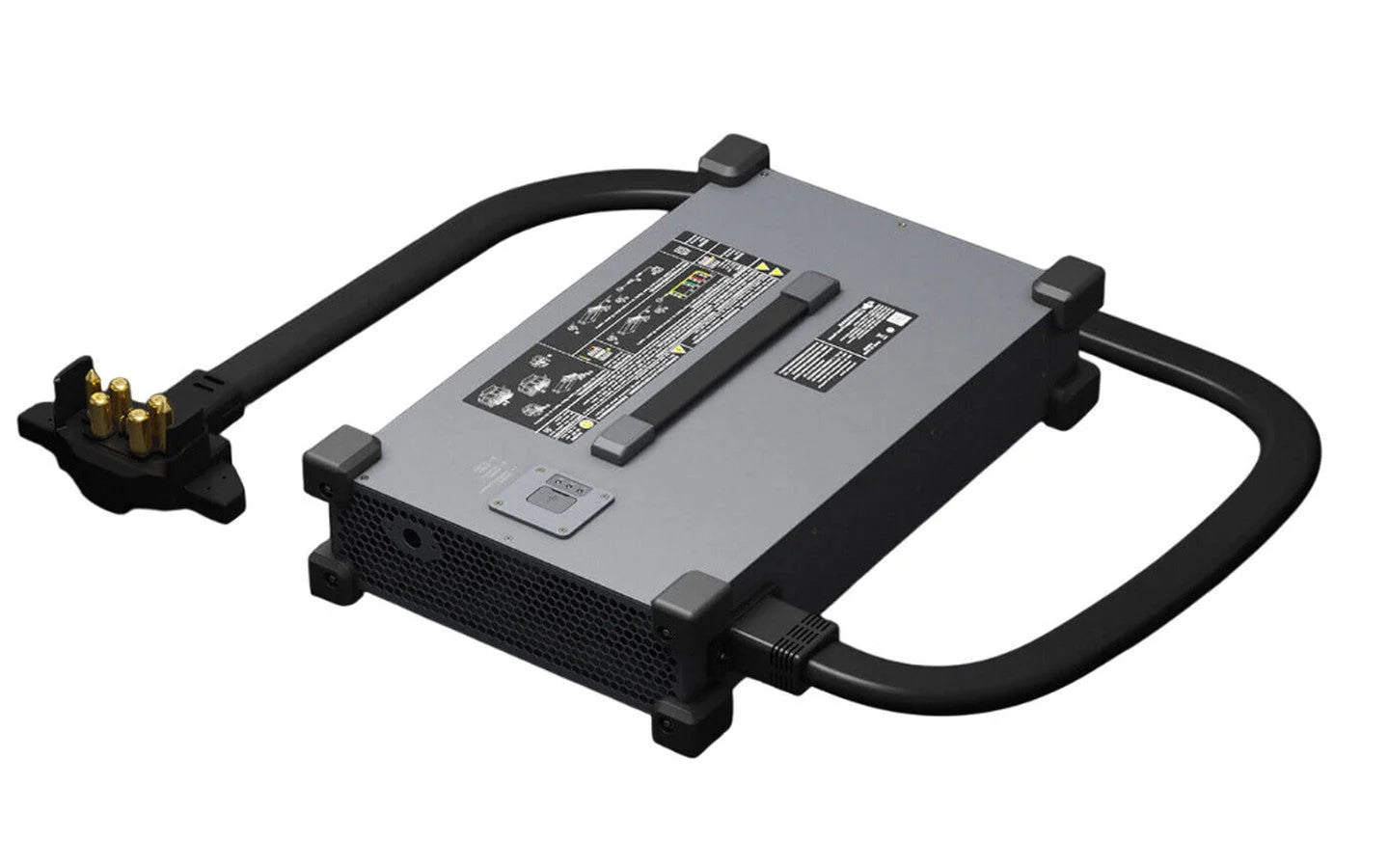

C12000 Intelligent Power Supply x 1

AIRCRAFT

GENERAL SPECS
Product Revision A
hovering accuracy range with GNSS RTK Enabled:±10 cm (horizontal), ±10 cm (vertical) ; RTK not enabled:Horizontal ± 0.6 m, vertical ± 0.3 m
max configurable flight radius 2 km
max wheelbase diagonals 2440 mm
max wind speed resistance <6 m/s
motor KV 65 rpm/V
motor stator length 155 mm
motor stator width 22 mm
propeller dimensions 1550 mm
propeller material Carbon Fiber Composite
propeller quantity 4 pairs
sensing distance 2.5m (Distance between the drone and obstacle after braking and stable hovering)
sensing FOV front radar Horizontal 360°, Vertical ± 45°, Up ± 45° (cone)
sensing FOV rear radar Vertical 360°, Horizontal ± 45°
sensing FOV tri-vission system Horizontal 90°, Vertical 180°
sensing measurement range ≤ 60 m
sensing obstacle avoidance height ≥ 1.5 m
sensing operating environment requirements Adequate light and discernible surroundings
sensing operating temperature 0 °C to 40 °C
sensing radar EIRP < 20 dBm (NCC / MIC / KC / CE / FCC)
sensing safe bypass speed ≤ 13.8 m/s
PHYSICAL SPECS
heightframe arm unfolded 960 mm( propellers unfolded) , 960 mm (propellers folded)
height frame arm folded 960 mm (propellers folded)
length frame arm folded 1160 mm (propellers folded)
length frame arm unfolded 3221 mm (propellers unfolded) , 1820 mm (propellers folded)
weight with battery 52 kg (DB1580 battery) ;56 kg (DB2160 battery)
width frame arm folded 900 mm ( propellers folded)
width frame arm unfolded 2100 mm ( propellers unfolded) , 3520 mm ( propellers folded)

REMOTE CONTROLLER

REMOTE SPECS
model TKPL 2
REMOTE CONTROLLER BATTERY SPECS

BATTERY SPECS

BATTERY SPECS
DB2160 capacity 41000 mAh
DB2160 voltage 52 V
DB2160 weight 14.7 ± 0.3 kg

CHARGING HUB

HUB SPECS
charging time 7 - 8 mins (DB1580 Intelligent Flight Battery, 30% - 95% charge) ; 8 - 9 mins (DB2160 Intelligent Flight Battery, 30% - 95% charge)
compatible battery DB1580 / DB2160 Intelligent Flight Battery
height 107 mm
input voltage Three-phase AC input: 175 - 520 V ; Single-phase AC input: 200 - 264 V
length 456 mm
model C12000
operating temperature 0° to 40° C
output channels 1
output current 194 A
output voltage 62 V
protection functions Over-voltage, over-charge, under-voltage and over-temperature protection.
rated power 12000 W (three-phase 380 V input)3000 W (single-phase 220 V input)
weight 13.13 kg
width 291 mm
