Dual KU BDC Indoor, Integrated into 19" unit Info Draft
Dual KU BDC Indoor, Integrated into 19" unit Info Draft
Dual KU BDC Indoor, Integrated into 19" unit Info Draft
Dual KU BDC Indoor, Integrated into 19" unit Info Draft

SAMPLE_SKU

Dual KU BDC Indoor, Integrated into 19" unit Info Draft

$100,000.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Test description.

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 17.5 - 18.8 GHz
input frequency band 2 18.3 - 19.5 GHz
LO frequency 1 16.55 GHz
LO frequency 2 17.35 GHz
LO stability Ext Ref
noise figure max 18 dB
output frequency band 1 950 - 2250 MHz
output frequency band 2 950 - 2150 MHz
reference type External Reference
Product Revision A
RF SPECIFICATIONS
control signal 1 13V
control signal 2 18V
conversion gain max 30 dB
conversion gain min 22 dB
conversion gain typ 25 dB
gain flatness 5 dB p-p max.
gain ripple (at per 36MHz) 1 dB p-p max.
image rejection 30 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 400 mA max.
input power MS3112E8-4P
power requirements +12 to +24 V DC
INTERFACE SPECIFICATIONS
RF input connector SMA Connector
RF output connector N Connector
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

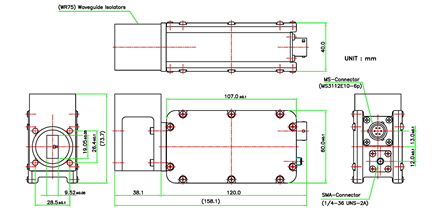

PHYSICAL SPECIFICATIONS
product dimensions (LxWxH) 108.0 mm x 78.0 mm x 40.0 mm
product weight 0.4 kg
