ELEMENT 10W C-Band BUC
ELEMENT 10W C-Band BUC
ELEMENT 10W C-Band BUC

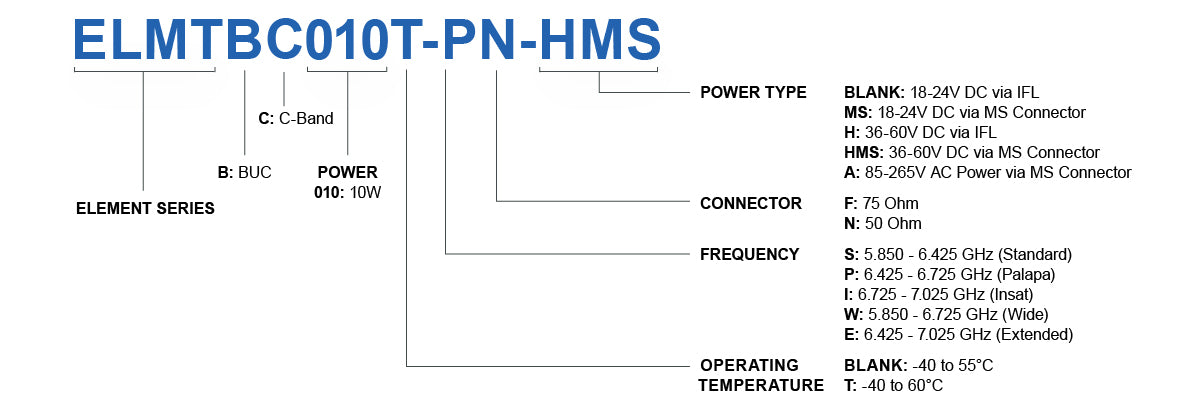

ELMTBC010-IF

ELEMENT 10W C-Band BUC

ELMTBC010 Series

Regular price MSRP: $5,148.15
/
Quantity Available: 0
Next Availability: Not Applicable
Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band C-Band
Connector F-Connector
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 975 - 1275 MHz
output frequency 1 C-Band: 6.725 - 7.025 GHz
output power rated 10W
RF SPECIFICATIONS
Gain Flatness (over 40MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 4.0 dB p-p
input VSWR 2.0 : 1 max.
L.O. frequency 1 5.75 GHz
Linear Gain 65 dB typ., 60 dB min., 70 dB max.
output P1dB 40 dBm min.
output power psat 40.5 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band P1dB ≤ -50 dBc
phase noise 100hz offset -65 dBc/Hz
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -85 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
reference signal frequency 0 +/- 5 dBm @ 10 MHz
spurious ≤ -60 dBc (in band); ≤ -50 dBc (out of band)
ELECTRICAL SPECIFICATIONS
input voltage BLANK: +18 to +24V DC via IFL
power consumption DC: 80W max.
INTERFACE SPECIFICATIONS
RF input connector F: Type F Connector (75 Ohm)
RF output connector CPR137G
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 100% condensing
temperature operational -40 to +55°C
Weight DC: 4.5kg (9.92 lb)
PHYSICAL SPECIFICATIONS

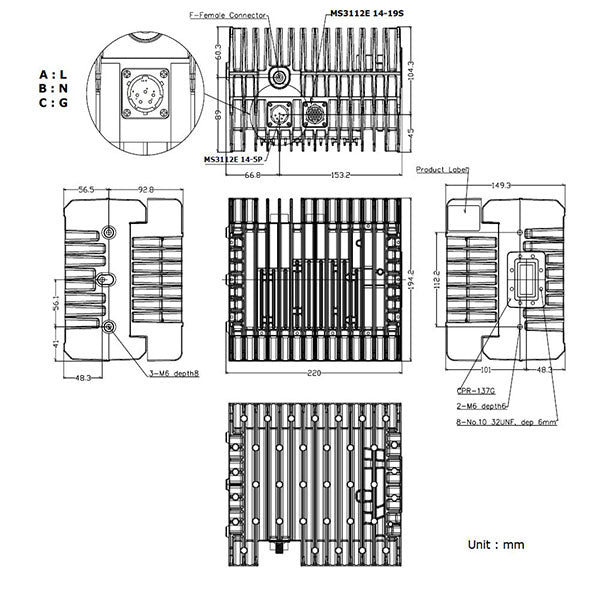

dimensions (LxWxH) 220 x 194.2 x 103.5 mm
enclosed accessories Screws, Gasket
