ELEMENT 20W C-Band BUC (High Temperature Range)
ELEMENT 20W C-Band BUC (High Temperature Range)
ELEMENT 20W C-Band BUC (High Temperature Range)

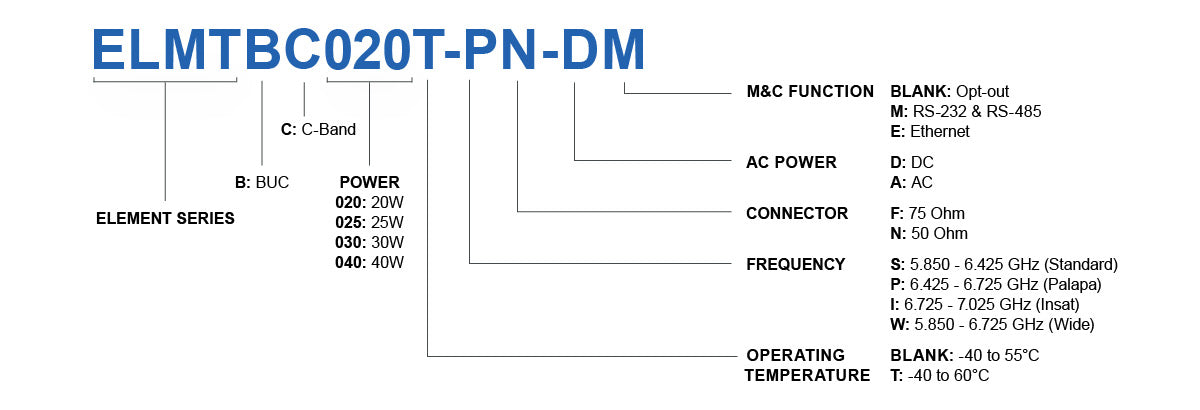

ELMTBC020T-SF-D

ELEMENT 20W C-Band BUC (High Temperature Range)

ELMTBC020 Series

Regular price MSRP: $8,395.06
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales

View Resellers Quantity

(Scroll to see specifications and documents)


Only 0 items in stock!



KEY SPECIFICATIONS
band C-Band
Connector F-Connector
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1525 MHz
LO frequency 1 4.90 GHz
output power rated 20W
RF SPECIFICATIONS
Gain Flatness (over 54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4.0 dB p-p
Gain Flatness (over temperature) ≤ 4.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain 69 dB typ., 64 dB min., 74 dB max.
output P1dB 43 dBm min.
output power psat 43.5 dBm min.
output spurious in band ≤ -60 dBc
output spurious out of band P1dB ≤ -50 dBc
phase noise 100hz offset -65 dBc/Hz
reference signal frequency 0 +/- 5 dBm @ 10 MHz
spurious ≤ -60 dBc (in band); ≤ -50 dBc (out of band)
ELECTRICAL SPECIFICATIONS
input voltage +36 to +60V
power consumption 180W max.
INTERFACE SPECIFICATIONS
RF input connector F: Type F Connector (75 Ohm)
RF output connector CPR137G
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% condensing
temperature operational -40 to +60°C
temperature storage -40 to +75°C
PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
product dimensions (LxWxH) 220 x 196 x 138 mm
product weight 5.0 kg (11.02 lb)
