BUC-ELMTKU002-810298

ELEMENT 2W Ku-Band MINIBUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
color White
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1750 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.55 GHz
output power rated 2W
Product Revision C
RF SPECIFICATIONS
Gain Flatness (over any 54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 2.0 : 1 max.
linear gain typ 55 dB
output P1dB 33 dBm.
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz typ -60 dBc/Hz
phase noise 1kHz typ -70 dBc/Hz
phase noise 10kHz typ -80 dBc/Hz
phase noise 100kHz typ -90 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 20W max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR75G-G
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +55°C

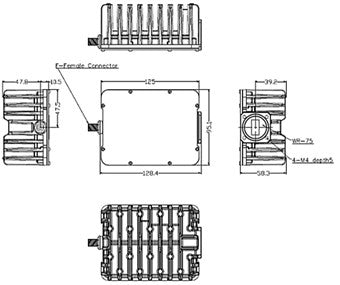

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
internal function Mutes Tx in case of LO unlocked
product height 58.3 mm
product length 128.4 mm
product weight 0.7 kg
product width 95.1 mm
