Name: ELEMENT 30W C-Band BUC
Brand: Norsat International Inc.
SKU: ELMTBC030-SF-D
Price: 10500.00 USD
Availability: InStock

ELMTBC030-SF-D

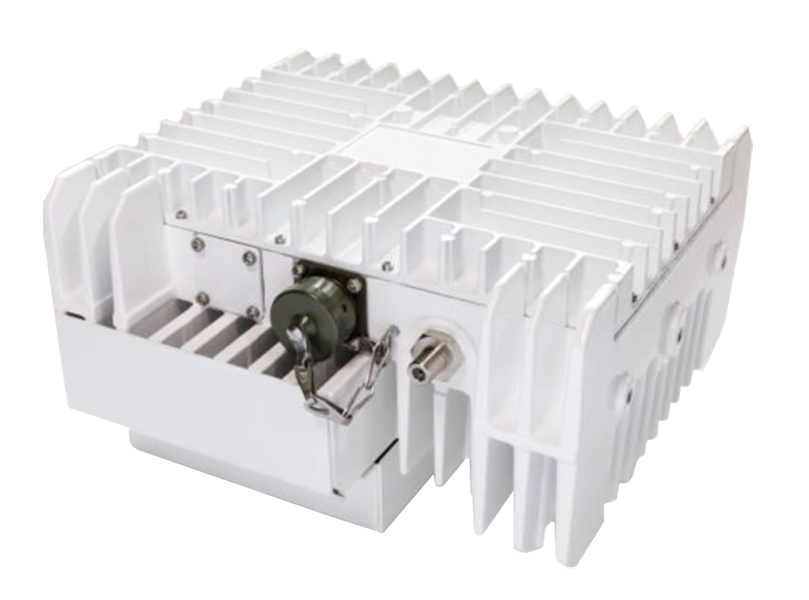

ELEMENT 30W C-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":42199899766967,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-SF-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","options":["S: 5.850 - 6.425 GHz","F-Connector","+36V to +60V DC, MS Connector Only"],"price":1050000,"weight":8500,"compare_at_price":1050000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081681079,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-SN-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","options":["S: 5.850 - 6.425 GHz","N-Connector","+36V to +60V DC, MS Connector Only"],"price":1050000,"weight":8500,"compare_at_price":1050000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081713847,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-PF-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","options":["P: 6.425 - 6.725 GHz","F-Connector","+36V to +60V DC, MS Connector Only"],"price":1176000,"weight":8500,"compare_at_price":1175000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081746615,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-PN-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","options":["P: 6.425 - 6.725 GHz","N-Connector","+36V to +60V DC, MS Connector Only"],"price":1176000,"weight":8500,"compare_at_price":1175000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081779383,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-IF-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","options":["I: 6.725 - 7.025 GHz","F-Connector","+36V to +60V DC, MS Connector Only"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081812151,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-IN-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","options":["I: 6.725 - 7.025 GHz","N-Connector","+36V to +60V DC, MS Connector Only"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081844919,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-WF-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC, MS Connector Only","options":["W: 5.850 - 6.725 GHz","F-Connector","+36V to +60V DC, MS Connector Only"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081877687,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC, MS Connector Only","sku":"ELMTBC030-WN-D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC, MS Connector Only","options":["W: 5.850 - 6.725 GHz","N-Connector","+36V to +60V DC, MS Connector Only"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081910455,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-SF-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","options":["S: 5.850 - 6.425 GHz","F-Connector","+85V to +265V AC, MS Connector Only"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081943223,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-SN-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","options":["S: 5.850 - 6.425 GHz","N-Connector","+85V to +265V AC, MS Connector Only"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327081975991,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-PF-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","options":["P: 6.425 - 6.725 GHz","F-Connector","+85V to +265V AC, MS Connector Only"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082008759,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-PN-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","options":["P: 6.425 - 6.725 GHz","N-Connector","+85V to +265V AC, MS Connector Only"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082041527,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-IF-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","options":["I: 6.725 - 7.025 GHz","F-Connector","+85V to +265V AC, MS Connector Only"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082074295,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-IN-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","options":["I: 6.725 - 7.025 GHz","N-Connector","+85V to +265V AC, MS Connector Only"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082107063,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-WF-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC, MS Connector Only","options":["W: 5.850 - 6.725 GHz","F-Connector","+85V to +265V AC, MS Connector Only"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082139831,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC, MS Connector Only","sku":"ELMTBC030-WN-A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC, MS Connector Only","options":["W: 5.850 - 6.725 GHz","N-Connector","+85V to +265V AC, MS Connector Only"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327354671287,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-SF-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["S: 5.850 - 6.425 GHz","F-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082205367,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-SN-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["S: 5.850 - 6.425 GHz","N-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082238135,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-PF-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["P: 6.425 - 6.725 GHz","F-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082270903,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-PN-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["P: 6.425 - 6.725 GHz","N-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082303671,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-IF-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["I: 6.725 - 7.025 GHz","F-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082336439,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-IN-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["I: 6.725 - 7.025 GHz","N-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082369207,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-WF-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["W: 5.850 - 6.725 GHz","F-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082401975,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + Ethernet","sku":"ELMTBC030-WN-DE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + Ethernet","options":["W: 5.850 - 6.725 GHz","N-Connector","+36V to +60V DC MS Connector + Ethernet"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082434743,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-SF-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["S: 5.850 - 6.425 GHz","F-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082467511,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-SN-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["S: 5.850 - 6.425 GHz","N-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1150000,"weight":8500,"compare_at_price":1150000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082500279,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-PF-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["P: 6.425 - 6.725 GHz","F-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082533047,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-PN-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["P: 6.425 - 6.725 GHz","N-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1276000,"weight":8500,"compare_at_price":1275000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082565815,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-IF-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["I: 6.725 - 7.025 GHz","F-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082598583,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-IN-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["I: 6.725 - 7.025 GHz","N-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1350000,"weight":8500,"compare_at_price":1350000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082631351,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-WF-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["W: 5.850 - 6.725 GHz","F-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082664119,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+36V to +60V DC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-WN-DM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +36V to +60V DC MS Connector + RS-485 \u0026 RS-232","options":["W: 5.850 - 6.725 GHz","N-Connector","+36V to +60V DC MS Connector + RS-485 \u0026 RS-232"],"price":1476000,"weight":8500,"compare_at_price":1475000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082696887,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-SF-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["S: 5.850 - 6.425 GHz","F-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082729655,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-SN-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["S: 5.850 - 6.425 GHz","N-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082762423,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-PF-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["P: 6.425 - 6.725 GHz","F-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082795191,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-PN-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["P: 6.425 - 6.725 GHz","N-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082827959,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-IF-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["I: 6.725 - 7.025 GHz","F-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1450000,"weight":8500,"compare_at_price":1450000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082860727,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-IN-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["I: 6.725 - 7.025 GHz","N-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1450000,"weight":8500,"compare_at_price":1450000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082893495,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-WF-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["W: 5.850 - 6.725 GHz","F-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1576000,"weight":8500,"compare_at_price":1575000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082926263,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + Ethernet","sku":"ELMTBC030-WN-AE","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + Ethernet","options":["W: 5.850 - 6.725 GHz","N-Connector","+85V to +265V AC MS Connector + Ethernet"],"price":1576000,"weight":8500,"compare_at_price":1575000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082959031,"title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"S: 5.850 - 6.425 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-SF-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"S: 5.850 - 6.425 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["S: 5.850 - 6.425 GHz","F-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327082991799,"title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"S: 5.850 - 6.425 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-SN-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"S: 5.850 - 6.425 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["S: 5.850 - 6.425 GHz","N-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1250000,"weight":8500,"compare_at_price":1250000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083024567,"title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"P: 6.425 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-PF-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"P: 6.425 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["P: 6.425 - 6.725 GHz","F-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083057335,"title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"P: 6.425 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-PN-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"P: 6.425 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["P: 6.425 - 6.725 GHz","N-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1376000,"weight":8500,"compare_at_price":1375000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083090103,"title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"I: 6.725 - 7.025 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-IF-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"I: 6.725 - 7.025 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["I: 6.725 - 7.025 GHz","F-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1450000,"weight":8500,"compare_at_price":1450000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083122871,"title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"I: 6.725 - 7.025 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-IN-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"I: 6.725 - 7.025 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["I: 6.725 - 7.025 GHz","N-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1450000,"weight":8500,"compare_at_price":1450000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083155639,"title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"W: 5.850 - 6.725 GHz","option2":"F-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-WF-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"W: 5.850 - 6.725 GHz \/ F-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["W: 5.850 - 6.725 GHz","F-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1576000,"weight":8500,"compare_at_price":1575000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42327083188407,"title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","option1":"W: 5.850 - 6.725 GHz","option2":"N-Connector","option3":"+85V to +265V AC MS Connector + RS-485 \u0026 RS-232","sku":"ELMTBC030-WN-AM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 30W C-Band BUC - W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","public_title":"W: 5.850 - 6.725 GHz \/ N-Connector \/ +85V to +265V AC MS Connector + RS-485 \u0026 RS-232","options":["W: 5.850 - 6.725 GHz","N-Connector","+85V to +265V AC MS Connector + RS-485 \u0026 RS-232"],"price":1576000,"weight":8500,"compare_at_price":1575000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	C-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1525 MHz
LO frequency 1	4.90 GHz
output frequency band 1	5.850 - 6.425 GHz
output power rated	30W
Product Revision	A

RF SPECIFICATIONS
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 4.0 dB p-p
Gain Flatness (over temperature)	≤ 4.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	76 dB
linear gain min	66 dB
linear gain typ	71 dB
output P1dB	44.8 dBm min.
output power psat	45.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -50 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset max	-65 dBc/Hz
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-85 dBc/Hz
phase noise 100kHz offset max	-95 dBc/Hz

ELECTRICAL SPECIFICATIONS
power consumption	220W max.
power requirements	+36 to +60V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
RF output connector	CPR137G

ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100% condensing
IP rating	IP 54
temperature operational	-40°C to +55°C
temperature storage	-40 to +75°C

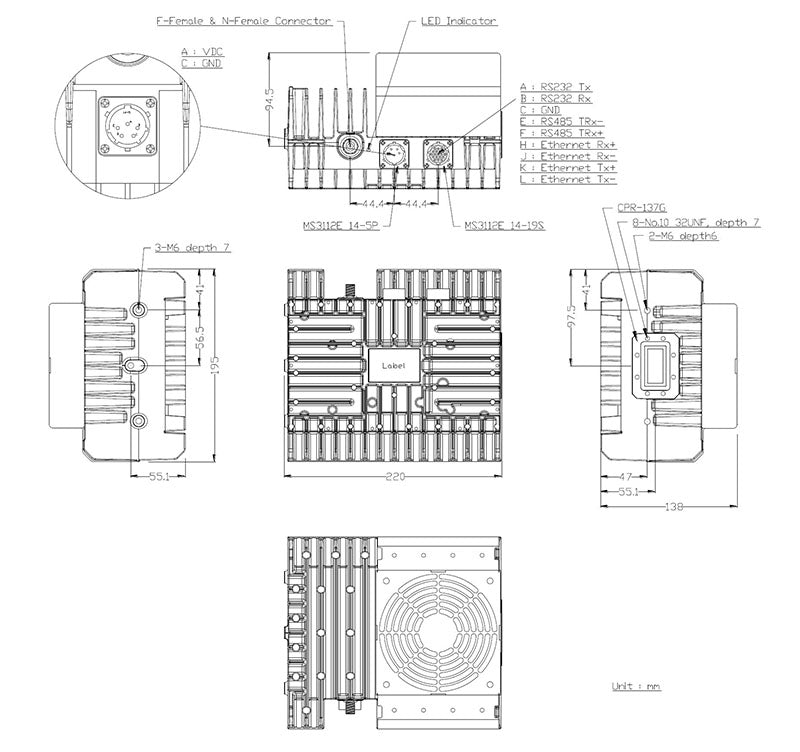

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket
product height	138 mm
product length	220 mm
product weight	5.0 kg
product width	196 mm

INFORMATION
HS Code	8543700000
Country of Origin	Made in the Republic of Korea
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	3 years
Dangerous Goods	-
Unit Package Dimensions	-
Unit Package Weight	8.5 kg
Total Aluminium Content	3.55 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 8.875
