ELEMENT 4W Ku-Band MINIBUC
ELEMENT 4W Ku-Band MINIBUC
ELEMENT 4W Ku-Band MINIBUC
ELEMENT 4W Ku-Band MINIBUC

BUC-ELMTKU004-875088

ELEMENT 4W Ku-Band MINIBUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
color White
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1200 MHz
input frequency band 2 1700 – 1950 MHz
LO frequency 1 12.05 GHz
LO frequency 2 12.05 GHz
output frequency band 1 13.00 - 13.25 GHz
output frequency band 2 13.75 - 14.00 GHz
output power rated 4W
Product Revision A
RF SPECIFICATIONS
Gain Stability ≤ 3 dB p-p
Gain Variation 1 dB p-p/36 MHz, 4 dB p-p/500 MHz
input VSWR 2.0 : 1 max.
linear gain typ 60 dB
Linear Output Power 33 dBm.
output spurious -55 dBc max
output VSWR 2.0 : 1 max.
phase noise 0.1kHz typ -60 dBc/Hz
phase noise 1kHz typ -70 dBc/Hz
phase noise 10kHz typ -80 dBc/Hz
phase noise 100kHz typ -90 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 35W max.
power requirements +18 to +36V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF output connector WR75G-G
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C

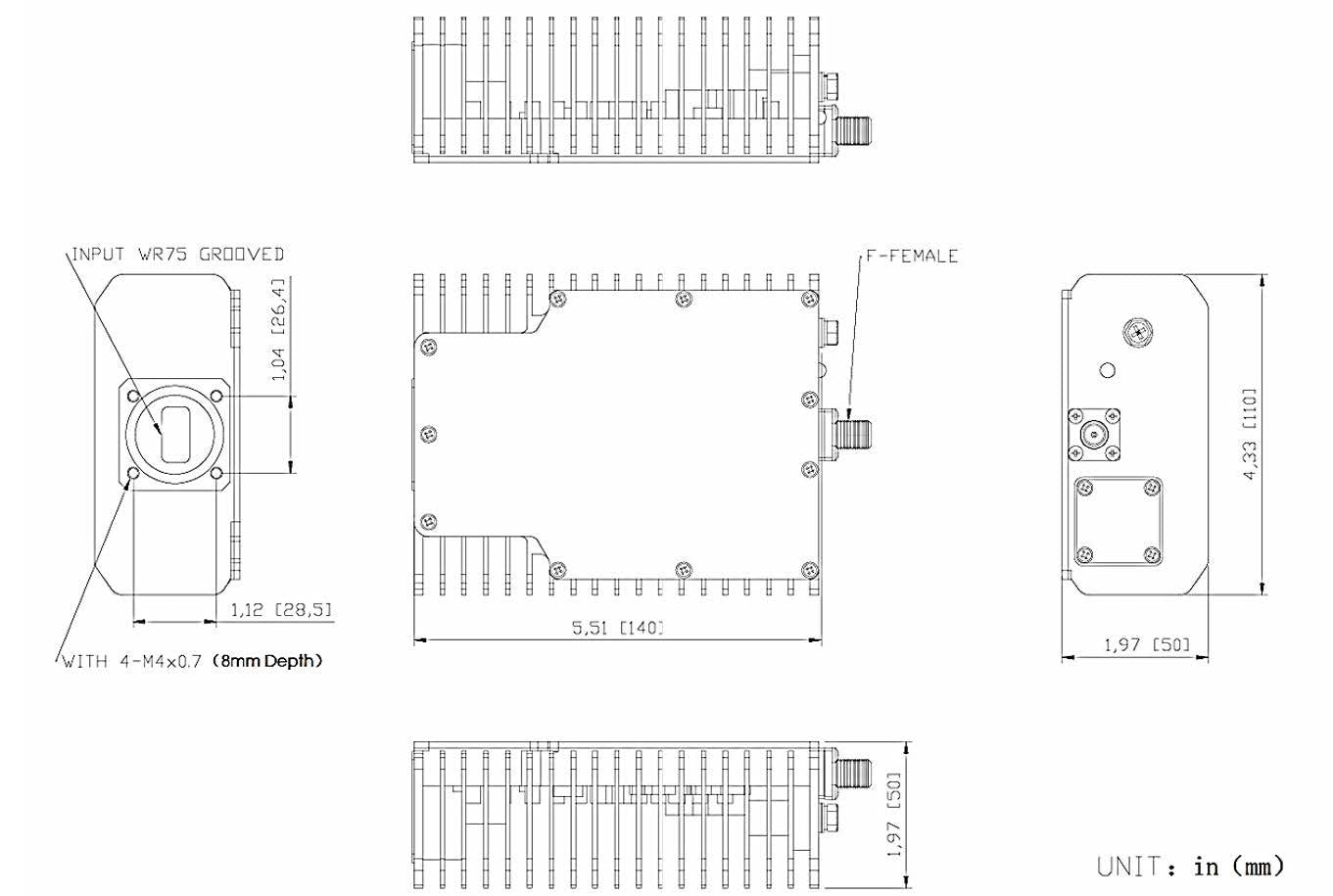

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
LED Indicator Green LED on: Normal Operation
Red LED on: PLL alarm
product height 50 mm
product length 140 mm
product weight 0.8 kg
product width 110 mm
