4W Ku-Band BUC
4W Ku-Band BUC
4W Ku-Band BUC
4W Ku-Band BUC

BUC-ELMTKU004-CN

4W Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
frequency sense Non-inverted
input frequency band 950 - 1750 MHz
LO frequency 10.75 GHz
output frequency band 11.70 - 12.50 MHz
output power rated 4 W
Product Revision A
RF SPECIFICATIONS
gain variation (over 54MHz) 1.5 dB
gain variation (over full band) 5 dB
gain variation (over operation temperature) 5 dB
input VSWR 2.0 : 1
linear gain typ 58 dB
output power P1dB 36 dBm min. over temperature
output spurious out of band -50 dBc
output VSWR 2.0 : 1
phase noise 0.1kHz typ -65 dBc/Hz
phase noise 1kHz typ -75 dBc/Hz
phase noise 10kHz typ -85 dBc/Hz
phase noise 100kHz typ -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 40W max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
input interface N-Connector (50 Ohm)
output interface WR75G
ENVIRONMENTAL SPECIFICATIONS
humidity up to 100%
IP rating IP67
temperature operational -40°C to +55°C

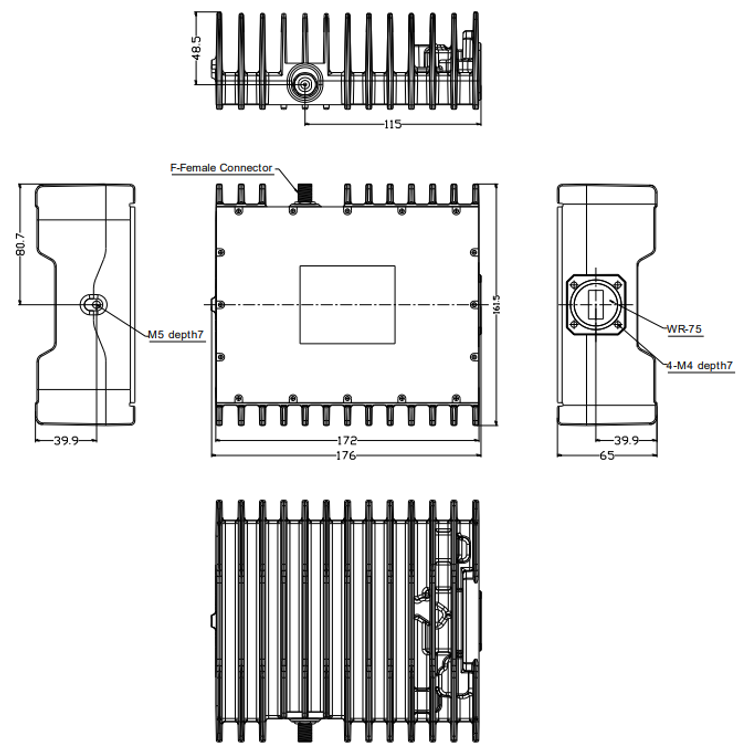

PHYSICAL SPECIFICATIONS
product height 65 mm
product length 176.1 mm
product weight 1.8 kg
product width 161.5 mm
