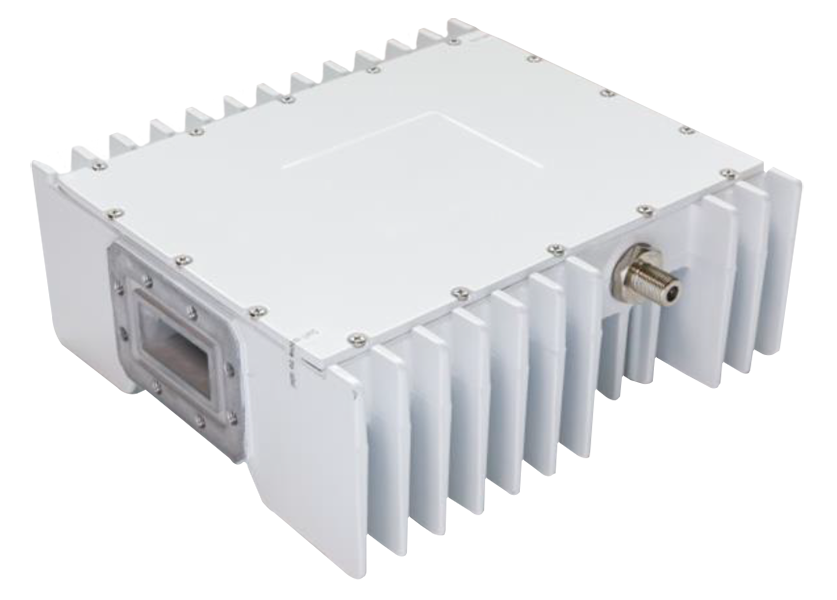

ELEMENT 5W C-Band BUC
ELEMENT 5W C-Band BUC

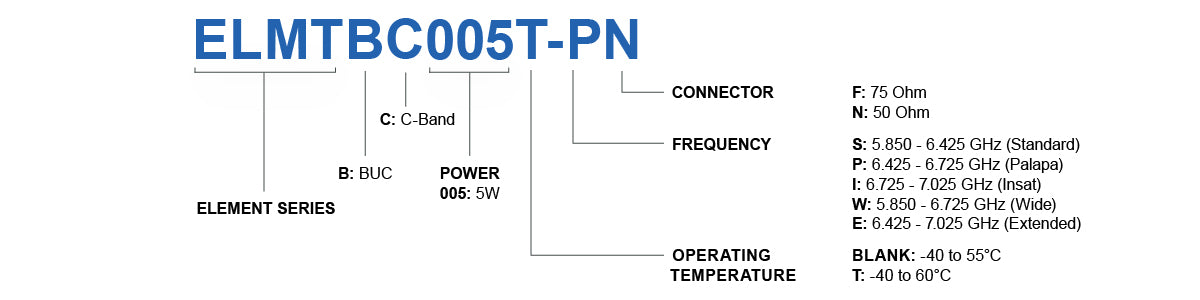

ELMTBC005-EF

ELEMENT 5W C-Band BUC

ELEMENT Series

Regular price MSRP: $1,604.94
/
Quantity Available: 1
Minimum Quantity Order: 5
Lead Time: In Stock

View Resellers Quantity

(Scroll to see specifications and documents)


Only 1 items in stock!



KEY SPECIFICATIONS
band C-Band
Connector F-Connector
input frequency band 1 1150 - 1750 MHz
output frequency 1 C-Band: 6.425 - 7.025 GHz
output power rated 5W
RF SPECIFICATIONS
Gain Flatness (over 54MHz) 1.5 dB
Gain Flatness (over full band) 4 dB
Gain Flatness (over temperature) 4 dB
input VSWR 2.0 : 1
Linear Gain 61 dB typ.
lo frequency 1 5.275 GHz
output power saturated 37 dBm min.
output VSWR 2.0 : 1
phase noise 100hz offset -65 dBc/Hz
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -85 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
reference signal frequency 0 +/- 5 dBm @ 10 MHz
spurious ≤ -60 dBc (in band); ≤ -50 dBc (out of band)
ELECTRICAL SPECIFICATIONS
input voltage +15V to + 24V DC
power connector via IFL
power requirements +15V to + 24V DC
INTERFACE SPECIFICATIONS
RF input connector CPR137G
ENVIRONMENTAL SPECIFICATIONS
humidity 0-100% condensing
temperature operational -40 to +55°C
Weight 1.8 kg (3.97 lb)
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 176 x 161.5 x 65 mm
