Name: ELEMENT 5W Ka-Band BUC
Brand: Norsat International Inc.
SKU: ELMTBKA005-AF
Price: 4625.00 USD
Availability: InStock

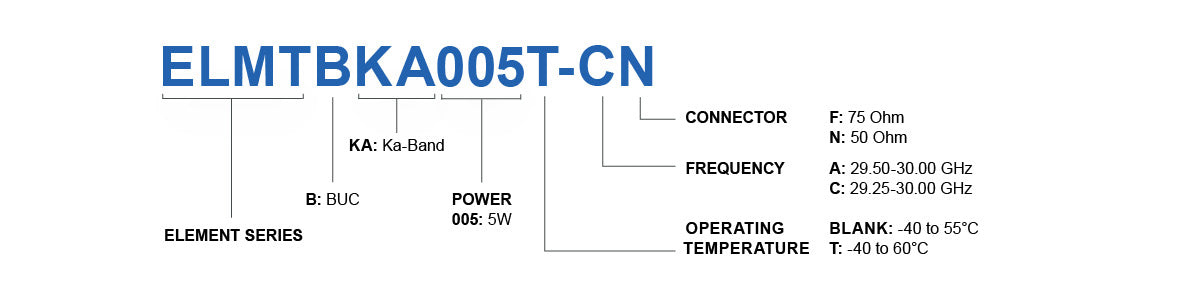

ELMTBKA005-AF

ELEMENT 5W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":42125961461943,"title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ No","option1":"A: 29.50 - 30.00 GHz","option2":"F-Connector","option3":"No","sku":"ELMTBKA005-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - A: 29.50 - 30.00 GHz \/ F-Connector \/ No","public_title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ No","options":["A: 29.50 - 30.00 GHz","F-Connector","No"],"price":462500,"weight":3000,"compare_at_price":462500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961494711,"title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ No","option1":"A: 29.50 - 30.00 GHz","option2":"N-Connector","option3":"No","sku":"ELMTBKA005-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - A: 29.50 - 30.00 GHz \/ N-Connector \/ No","public_title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ No","options":["A: 29.50 - 30.00 GHz","N-Connector","No"],"price":462500,"weight":3000,"compare_at_price":462500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961527479,"title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ No","option1":"C: 29.25 - 30.00 GHz","option2":"F-Connector","option3":"No","sku":"ELMTBKA005-CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - C: 29.25 - 30.00 GHz \/ F-Connector \/ No","public_title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ No","options":["C: 29.25 - 30.00 GHz","F-Connector","No"],"price":481481,"weight":3000,"compare_at_price":481481,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42125961560247,"title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ No","option1":"C: 29.25 - 30.00 GHz","option2":"N-Connector","option3":"No","sku":"ELMTBKA005-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - C: 29.25 - 30.00 GHz \/ N-Connector \/ No","public_title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ No","options":["C: 29.25 - 30.00 GHz","N-Connector","No"],"price":487500,"weight":3000,"compare_at_price":487500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159226777783,"title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","option1":"A: 29.50 - 30.00 GHz","option2":"F-Connector","option3":"Yes","sku":"ELMTBKA005I-AF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","public_title":"A: 29.50 - 30.00 GHz \/ F-Connector \/ Yes","options":["A: 29.50 - 30.00 GHz","F-Connector","Yes"],"price":631790,"weight":3000,"compare_at_price":631790,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159226810551,"title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","option1":"A: 29.50 - 30.00 GHz","option2":"N-Connector","option3":"Yes","sku":"ELMTBKA005I-AN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","public_title":"A: 29.50 - 30.00 GHz \/ N-Connector \/ Yes","options":["A: 29.50 - 30.00 GHz","N-Connector","Yes"],"price":631790,"weight":3000,"compare_at_price":631790,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159226843319,"title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","option1":"C: 29.25 - 30.00 GHz","option2":"F-Connector","option3":"Yes","sku":"ELMTBKA005I-CF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","public_title":"C: 29.25 - 30.00 GHz \/ F-Connector \/ Yes","options":["C: 29.25 - 30.00 GHz","F-Connector","Yes"],"price":656481,"weight":3000,"compare_at_price":656481,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43159226876087,"title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","option1":"C: 29.25 - 30.00 GHz","option2":"N-Connector","option3":"Yes","sku":"ELMTBKA005I-CN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELEMENT 5W Ka-Band BUC - C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","public_title":"C: 29.25 - 30.00 GHz \/ N-Connector \/ Yes","options":["C: 29.25 - 30.00 GHz","N-Connector","Yes"],"price":656481,"weight":3000,"compare_at_price":656481,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	28.55 GHz
output frequency band 1	29.50 - 30.00 GHz
output power rated	5W
Product Revision	A

RF SPECIFICATIONS
gain flatness (54MHz)	≤ 1.5 dB p-p
Gain Flatness (over full band)	≤ 4 dB p-p
Gain Flatness (over temperature)	≤ 4.0 dB p-p
input VSWR	2.0 : 1 max.
linear gain max	63 dB
linear gain min	53 dB
linear gain typ	58 dB
output P1dB	37 dBm min.
output power psat	37.5 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band	≤ -60 dBc
output VSWR	2.0 : 1 max.
phase noise 0.1kHz offset max	-65 dBc/Hz
phase noise 1kHz offset max	-75 dBc/Hz
phase noise 10kHz offset max	-85 dBc/Hz
phase noise 100kHz offset max	-95 dBc/Hz

ELECTRICAL SPECIFICATIONS
power consumption	60W max.
power requirements	+15 to +30 V DC

INTERFACE SPECIFICATIONS
IF connector	F-Connector
isolator	No Isolator
RF output connector	WR28

ENVIRONMENTAL SPECIFICATIONS
humidity	0 - 100% condensing
IP rating	IP 67
temperature operational	-40°C to +55°C
temperature storage	-40 to +75°C

PHYSICAL SPECIFICATIONS
enclosed accessories	Screws, Gasket
product height	65 mm
product length	176 mm
product weight	1.8 kg
product width	161.5 mm

INFORMATION
HS Code	8543700000
Country of Origin	Made in the Republic of Korea
Ex Works	Korea
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	3.0 kg
Total Aluminium Content	1.28 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 3.2

INTERFACE SPECIFICATIONS
IF connector	N-Connector
isolator	No Isolator
RF output connector	WR28
