KEY SPECIFICATIONS
band Ku-Band
color FS33446 Powder Coated Matte Finish
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 6W
Product Revision A
RF SPECIFICATIONS
Gain Flatness (over any 54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
Gain Flatness (over temperature) ≤ 4 dB p-p
input VSWR 2.0 : 1 max.
linear gain typ 60 dB
output P1dB 37.8 dBm min.
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz typ -65 dBc/Hz
phase noise 1kHz typ -75 dBc/Hz
phase noise 10kHz typ -85 dBc/Hz
phase noise 100kHz typ -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 48W max.
power requirements +15 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR75G
ENVIRONMENTAL SPECIFICATIONS
humidity up to 100%
temperature operational -40°C to +55°C

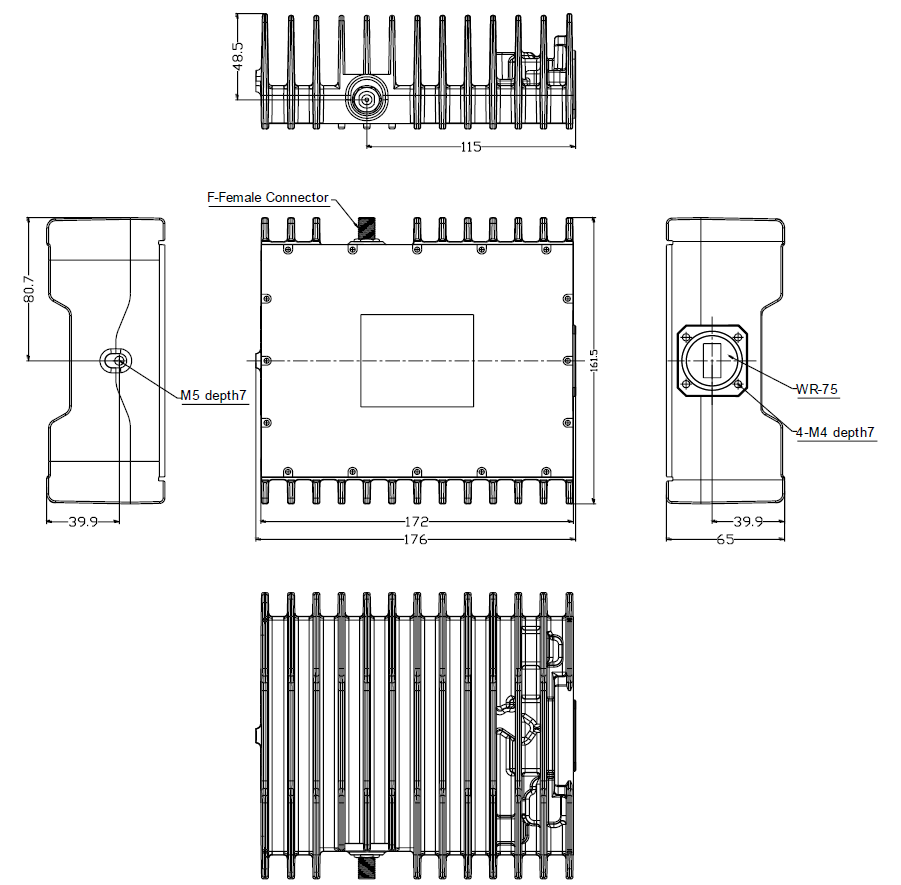

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
internal function Lock detector shuts off Tx in case of LO unlocked
product height 65.0 mm
product length 176.1 mm
product weight 1.8 kg
product width 161.5 mm
