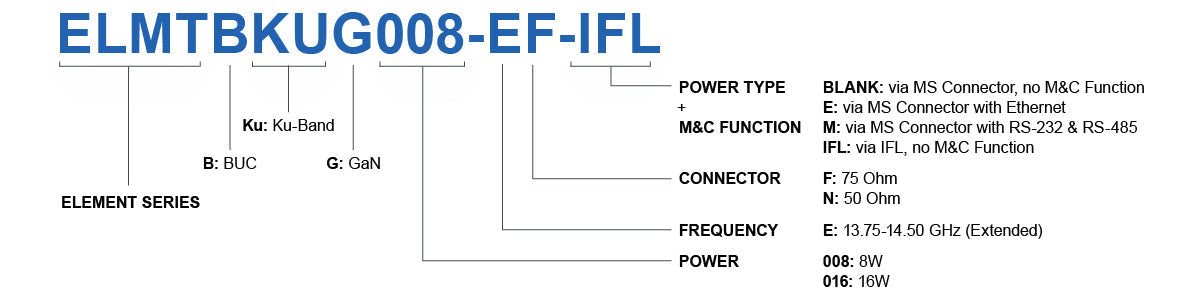

ELMTBKUG008T-EF

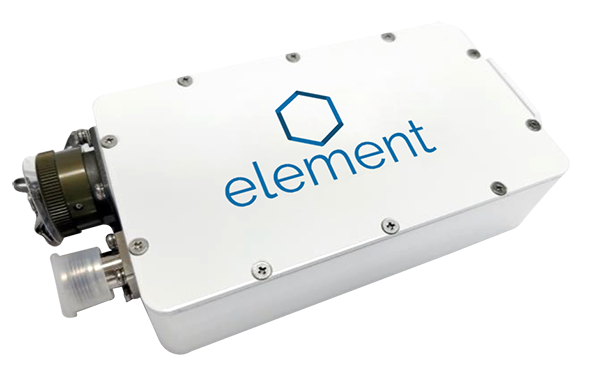

ELEMENT 8W Ku-Band GaN BUC (High Temperature Range)

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 8W
Product Revision A
RF SPECIFICATIONS
Gain Flatness (over 54MHz) ≤ 1.5 dB p-p
Gain Flatness (over full band) ≤ 4.0 dB p-p
Gain Flatness (over temperature) ≤ 4.0 dB p-p
input power via MS Connector
input VSWR 2.0 : 1 max.
linear gain typ 65 dB
output power plinear 37 dBm
output power psat 39 dBm
output spurious in band ≤ -60 dBc
output spurious out of band ≤ -50 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
input power via MS Connector
M&C function None
power consumption 45W max.
power requirements +18 to +60V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% / IP67
IP rating IP 67
temperature operational -40°C to +60°C
temperature storage -40 to +80°C

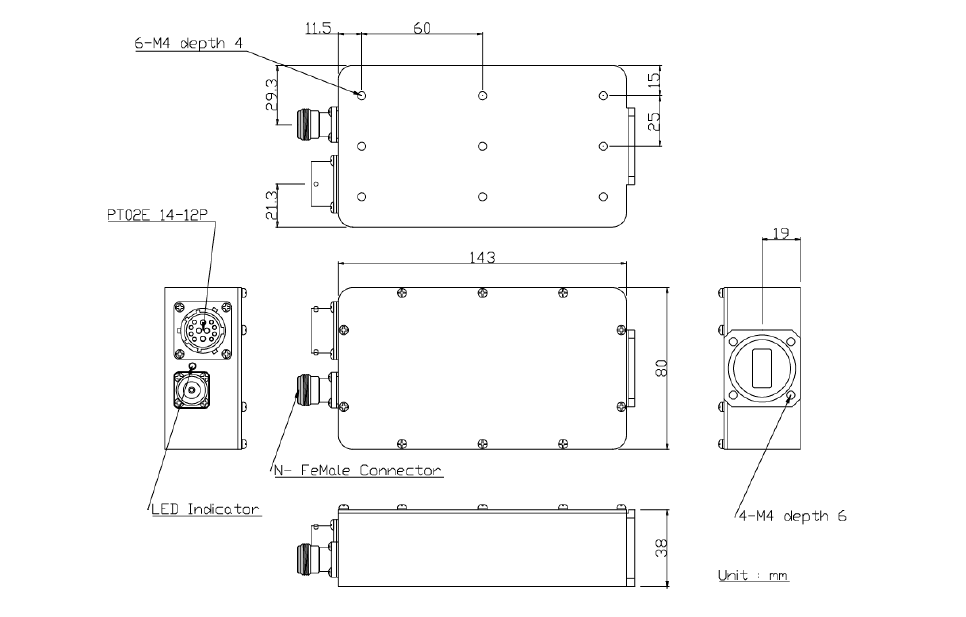

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket
product height 38 mm
product length 143 mm
product weight 0.75 kg
product width 80 mm
